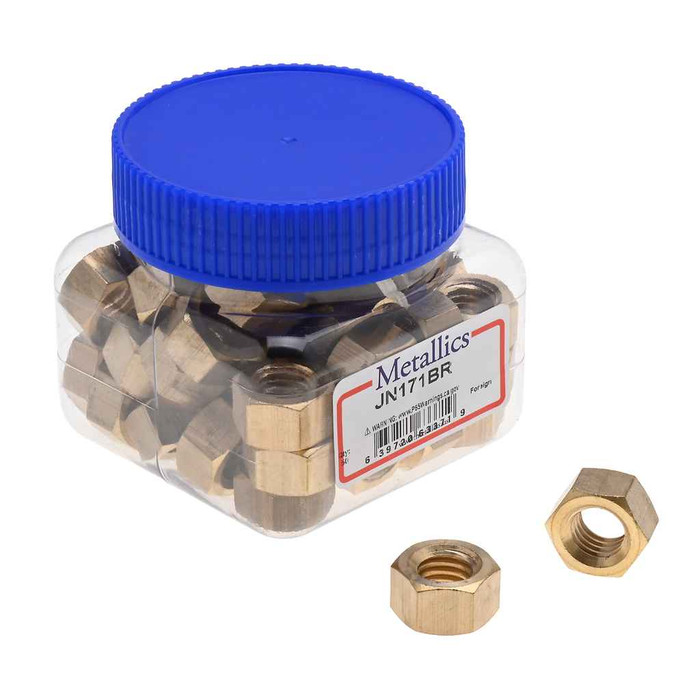

Nuts 8-32 Hx Nut Br (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ASME B18.2.2
- Division:
- Electrical H1
- Fastener Head Width:
- 0.302 - 0.344 in.
- Fastener Height:
- 0.117 - 0.130
- Fastener Width:
- 0.378 - 0.397
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Nut_Brass.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.15 in
- Product Length:
- 3 in
- Product Weight:
- 0.33 lbs
- Product Width:
- 3 in
- Remarks:
- The catalog UPC differ from the tarnsaction daat spreadsheet UPC
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 32
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Hexagonal Nut
- Type2:
- Hexagonal Nut
- Series:
- JN
- Product Details:
- Hexagonal Nut
- Product Material:
- Brass
Metallics JN160BR – Frequently Asked Questions
1) Can I use an 8-32 brass nut to secure a ground wire to a box with a 10-32 ground screw?
No. Standard green grounding screws in outlet and device boxes are 10-32, and an 8-32 nut will not thread onto a 10-32 screw. The JN160BR is 8-32 only, 32 threads per inch at the 8 diameter. Order the 8-32 nut for 8-32 studs and screws, and a 10-32 nut for box ground screws.
2) Why use a brass hex nut instead of a steel one on electrical work?
The JN160BR is solid brass, not plated steel. Brass is used where the nut has to carry current or stay corrosion free, so it is the usual choice on grounding and bonding connections, lug and stud terminations, and in damp or outdoor enclosures. Metallics lists it for electrical, plumbing, heating and air conditioning work. If you only need a mechanical fastener with no conductivity or corrosion concern, a steel 8-32 nut does the same job.
3) Are Metallics JN160BR brass hex nuts Buy American or ARRA compliant for a federal job?
No. The JN160BR brass hex nuts are not Buy American compliant and are not ARRA compliant. Country of origin is listed as multiple. If your contract carries a domestic sourcing requirement, these will not satisfy it.
4) How many 8-32 brass hex nuts come in a jar of Metallics JN160BR, and can I buy fewer?
It ships as a jar of 100 nuts, and the jar of 100 is the order minimum, so 100 pieces is the smallest quantity. Metallics does offer other sizes and quantities by request. The filled jar weighs 0.33 lbs.
5) Do these brass hex nuts meet a recognized dimensional standard for spec work?
Yes. The JN160BR is manufactured to ASME B18.2.2, the dimensional standard for hex nuts, with threads to ANSI/ASME B1.1. That means the across-flats and height dimensions are interchangeable with any other standards-compliant 8-32 hex nut on your drawings or submittals.
