NUVO Lighting TH496 LED, 12W P...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$64.00

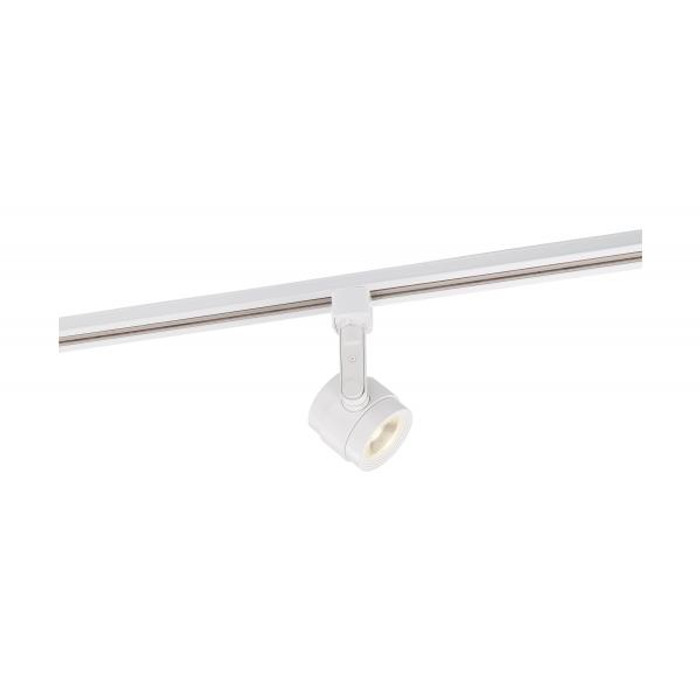

NUVO Lighting NUV-TH496 LED - 12 Watt Piston Track Head - White - 24 deg. Beam Angle

NUVO Lighting TH496 LED, 12W Piston Track Head, White, 24 degree Beam Angle

(No reviews yet) Write a Review

Model: TH496
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$64.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NUVO Lighting TH496 LED, 12W Piston Track Head, White, 24 degree Beam Angle

LED - 12 Watt Piston Track Head - White - 24 deg. Beam Angle

  • Warranty: 3 Year Limited - Fixtures
  • Dimensions: L:2.75" W:2.75" H:2.75" E:5.75"

    • Manufacturer Resources

    Product Specs

    CCT Selectable:
    No
    CRI:
    90
    Dimmable:
    Yes
    Lamp Base:
    Integrated
    Lamp Shape:
    Integrated LED
    Location Rating:
    Dry
    Lumens:
    1020L
    Product Type:
    Track Head
    RoHS Compliant:
    Yes
    Safety Listing:
    cETLus
    Subcategory:
    Track Head
    Technology:
    LED
    Warranty:
    3 Year Limited - Fixtures
    Bulb Base:
    Integrated LED
    Bulbs Included:
    Integrated
    Extension:
    5.75"
    Product Group:
    Indoor Lighting
    Product Subgroup:
    Track Lights
    Avg Rated Hours:
    30000
    CA Prop 65 Chemicals:
    Lead
    Base Material:
    Aluminum
    Location Indoor/ Outdoor:
    Indoor
    Instructions:
    https://assets.satco.com/dj18eqo18/image/upload/v1713463030/products/TH496/TH496_Instructions.pdf
    Specifications:
    https://media.satco.com/specsheets/pdf/TH496.pdf
    Product Voltage:
    120V
    Product Length:
    2.75"
    Mounting Method:
    Ceiling
    Product Style:
    Modern
    Product Height:
    2.75"
    Product Category:
    Track Lighting
    Product Weight:
    0.77lbs
    Product Width:
    2.75"
    Product Wattage:
    12W

    NUVO Lighting TH496 – Frequently Asked Questions

    1) Can I put the TH496 track head in a covered exterior walkway or a bathroom with a shower?
    No. The TH496 is rated for dry locations and indoor use only, so keep it out of covered exteriors, canopies, walk-in coolers, and any spot that sees shower steam or splashing. For those openings you need a damp- or wet-rated head.
    2) Will this track head work on my existing 120V line voltage track, or do I need a transformer?
    It runs on 120V line voltage track, so no remote transformer or low-voltage supply is needed. The driver is built into the head. Mounting is ceiling, consistent with standard track-mounted ceiling runs.
    3) How far does the TH496 piston head drop below the track, and how much clearance does it need?
    Allow for a 5.75 inch extension off the track. The body itself is compact at 2.75 x 2.75 x 2.75 inches and weighs 0.77 lbs, so it stays light on long runs and tucks in close where ceiling height is tight.
    4) Is the TH496 dimmable, and can I change the color temperature on it?
    Dimmable, yes. Field-selectable CCT, no. The TH496 is fixed at one color temperature, so if you are mixing it into an existing run you will want to match the color temperature of the heads already up there rather than count on adjusting it at install.
    5) Does this NUVO track head carry a safety listing for commercial installs?
    It is cETLus listed, which covers both US and Canadian installations, and it is RoHS compliant. Note the California Prop 65 chemical disclosure for lead, which matters if you are shipping into or specifying for a California facility.
    6) What finish does the NUVO TH496 piston track head come in?
    White only. If you are standardizing heads across a building and some ceilings call for a black or brushed nickel head, the TH496 will not match those, so plan the aesthetic by zone before you order.
