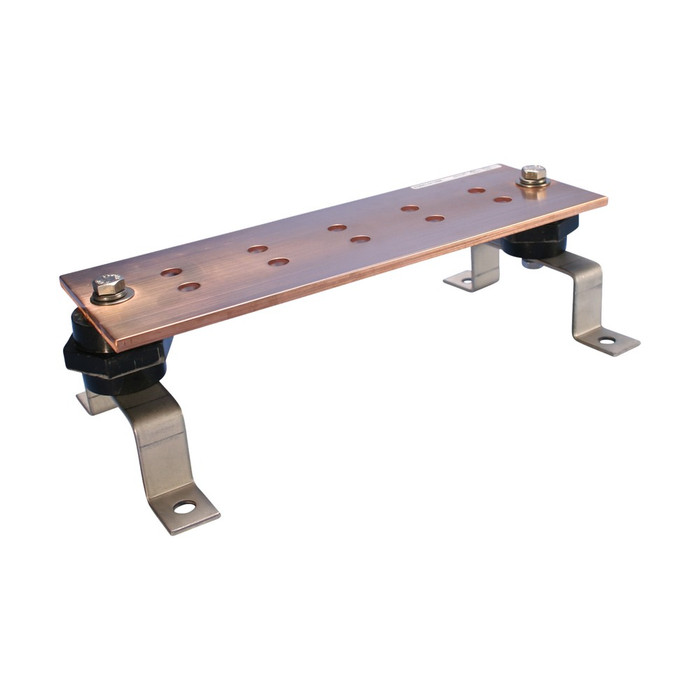

nVent CADDY EGBA14212NN NN Hole Pattern Grounding Busbar, 12-Inch x 2-Inch x 1/4-Inch

nVent CADDY EGBA14212NN NN Hole Pattern Grounding Busbar, 12-Inch x 2-Inch x 1/4-Inch

(No reviews yet) Write a Review

Model: EGBA14212NN

In Stock (leaves warehouse same day if ordered before 3pm ET)

$479.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

nVent CADDY EGBA14212NN NN Hole Pattern Grounding Busbar, 12-Inch x 2-Inch x 1/4-Inch

The nVent CADDY EGBA14212NN is an NN hole pattern grounding busbar built to provide a reliable common bonding point for grounding and bonding conductors in electrical systems. Sized at 12-Inch x 2-Inch x 1/4-Inch, this busbar's NN hole pattern configuration is designed for straightforward integration into panelboards, switchgear, and other grounding infrastructure. As a grounding busbar, it serves as a central termination point that helps maintain a consistent, low-impedance grounding path across connected equipment, giving electrical contractors a dependable building block for code-focused grounding and bonding systems.

Key Features

  • Trade Size: Measures 12-Inch x 2-Inch x 1/4-Inch, a busbar profile sized for panel, enclosure, and grounding system layouts.
  • NN Hole Pattern: Features a pre-drilled NN hole pattern configuration that supports standardized placement of grounding lugs and connectors along the busbar length.
  • Grounding Busbar Function: Provides a common bonding point for consolidating multiple grounding conductors within an electrical enclosure or grounding grid.
  • Flat Busbar Profile: The flat 1/4-Inch thick profile is designed for secure, low-profile mounting within panelboards and equipment enclosures.
  • Consistent Hole Spacing: The NN hole pattern layout is intended to simplify lug alignment when terminating multiple grounding conductors on a single busbar.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Electrical Panelboard and Switchgear Grounding
  • Equipment Grounding Conductor Termination
  • Data Center and Telecommunications Grounding Systems
  • Commercial and Industrial Electrical Installations
  • Renovation and New Construction Grounding Upgrades
  • Grounding Grid and Bonding Network Consolidation Points

Why nVent CADDY?

nVent CADDY grounding and bonding products are designed to deliver dependable connection points for grounding conductors in professional electrical installations. The EGBA14212NN busbar's defined 12-Inch x 2-Inch x 1/4-Inch dimensions and NN hole pattern give installers a consistent, code-focused component for building out grounding systems. Choose nVent CADDY for grounding and bonding hardware built for demanding commercial and industrial electrical work where dependable bonding points matter.

Manufacturer Resources

nVent CADDY Full Catalog

Product Specs

list_batch:
CDY-20260915
Product Type:
Ground Bar
Configuration:
NN Hole Pattern
Department:
Electrical
Product Group:
Grounding & Bonding
Product Subgroup:
Grounding & Bonding

nVent CADDY EGBA14212NN – Frequently Asked Questions

1) What is the NN hole pattern on this nVent CADDY busbar?
NN is the pre-drilled hole configuration on the EGBA14212NN. The holes are laid out on consistent spacing along the bar so grounding lugs and connectors land in standardized positions, which is what makes multiple conductor terminations line up without field drilling. If your specification calls out a different nVent CADDY hole pattern letter, order that pattern instead, since the drilling is not something you want to change on site.
2) Can I use this busbar as the main bonding point for a telecom or data center ground?
Yes. The EGBA14212NN is built as a common bonding point where grounding and bonding conductors are consolidated, and data center and telecommunications grounding systems are among its intended applications along with panelboard and switchgear grounding, equipment grounding conductor termination, and grounding grid consolidation points.
3) Do grounding lugs or mounting insulators come with the EGBA14212NN?
What you are ordering is the bar itself, 12 x 2 x 1/4 inch with the NN drilling. The lugs or compression connectors that terminate your grounding conductors, plus whatever standoff insulators or brackets your enclosure requires, are separate line items. Size the lugs to your conductor and to the hole pattern spacing on the bar before you order.
4) Is a 1/4 inch thick busbar enough, or do I need a heavier bar?
The EGBA14212NN is a 1/4 inch thick flat bar, which is the common thickness for equipment grounding and telecom bonding bars mounted inside panelboards and enclosures. Heavier cross sections are normally specified only where the engineer calls out a larger bar for main bonding or service entrance duty. Build to whatever thickness and dimension the grounding drawing specifies.
5) I need to confirm this bar against the manufacturer spec before I submit it. Where is that published?
nVent CADDY publishes the EGBA series grounding busbars in its full product catalog, which ZenSupply hosts for the EGBA14212NN. Use it for the submittal package alongside the ordering identifier, nVent CADDY part number EGBA14212NN.
