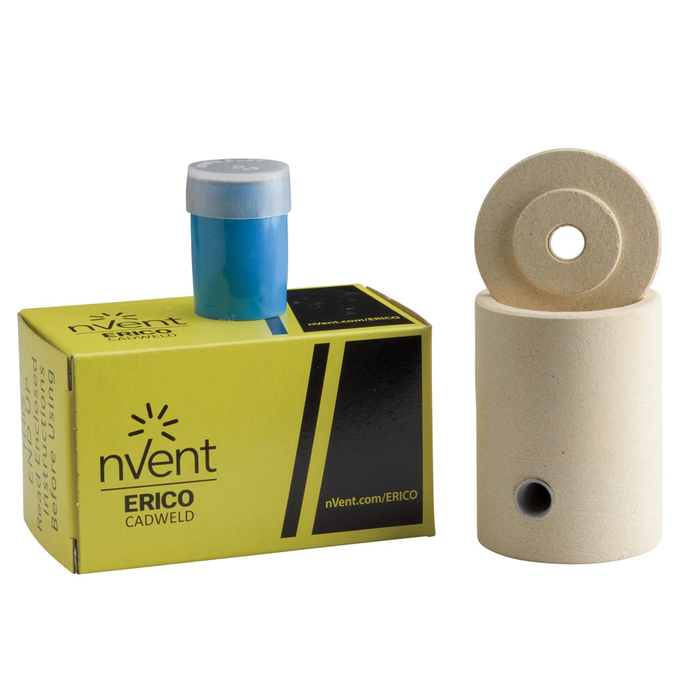

nVent CADDY Erico GR1181G Cadweld One-Shot Exothermic Weld Mold for 3/4-Inch Ground Rod

nVent CADDY Erico GR1181G Cadweld One-Shot Exothermic Weld Mold for 3/4-Inch Ground Rod

(No reviews yet) Write a Review

Model: GR1181G

In Stock (leaves warehouse same day if ordered before 3pm ET)

$32.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

nVent CADDY Erico GR1181G Cadweld One-Shot Exothermic Weld Mold for 3/4-Inch Ground Rod

The nVent CADDY Erico GR1181G is a Cadweld® one-shot exothermic weld mold engineered for permanent, molecular-bond connections to 3/4-Inch ground rod. This single-use graphite mold is available for a 6-AWG conductor or a combined 8-AWG solid and 8-AWG stranded conductor option, giving electricians and grounding contractors a precise fit across the wire sizes most commonly paired with 3/4-Inch rod. As part of the nVent Cadweld exothermic welding system, the GR1181G mold supports rod-to-conductor terminations on commercial, industrial, and utility electrical projects where a low-resistance, code-driven grounding connection is required for the life of the installation.

Key Features

  • Trade Size: Sized for 3/4-Inch ground rod, giving installers a precise mold fit without field measuring or guesswork.
  • One-Shot Mold Design: Single-use graphite mold construction built for a dependable, repeatable exothermic weld on each individual connection.
  • Conductor Size Range: Offered for 6-AWG conductor or a combined 8-AWG solid and 8-AWG stranded conductor configuration, covering the common grounding and bonding conductor sizes paired with 3/4-Inch rod.
  • Cadweld® Exothermic System: Part of the nVent Cadweld exothermic welding product line used for permanent, code-driven electrical grounding and bonding connections.
  • Molecular Bond Connection: Creates a true molecular bond rather than a mechanical connection, so the joint resists loosening and corrosion at the interface over the life of the installation.
  • Purpose-Built for Rod-to-Conductor Terminations: Engineered specifically for ground rod to conductor exothermic welds, a common requirement on grounding and bonding system installations.

Technical Specifications

  • Trade Size: 3/4"

Typical Applications

  • Electrical Grounding and Bonding Connections
  • Ground Rod to Conductor Exothermic Welding
  • Commercial and Industrial Grounding Systems
  • Utility and Substation Grounding Installations
  • New Construction and Retrofit Grounding Upgrades

Why nVent CADDY?

The nVent CADDY Erico GR1181G Cadweld® one-shot mold delivers the permanent, molecular-bond connections that professional grounding and bonding work demands, backed by the Cadweld exothermic welding system trusted throughout the electrical industry. Choosing a graphite mold purpose-sized for 3/4-Inch rod, available with a 6-AWG or combined 8-AWG solid and stranded conductor option, helps electrical contractors achieve a secure, dependable, code-driven termination on every job, without the need for field measuring or guesswork when matching the mold to the rod and conductor combination on site.

Manufacturer Resources

nVent CADDY Full Catalog

Product Specs

list_batch:
CDY-20260915
Product Type:
Exothermic Weld Mold
Series:
Cadweld
Department:
Electrical
Product Group:
Electrical Installation Tools
Product Subgroup:
Exothermic Welding & Consumables
Product Material:
Graphite
Product Size:
3/4"

nVent CADDY GR1181G – Frequently Asked Questions

1) Which ground rod size does the Cadweld GR1181G mold fit?
The GR1181G is sized for 3/4 inch ground rod. It is a rod-to-conductor mold, so the rod diameter has to match the mold cavity exactly; a 5/8 inch rod is the other common size in the field and needs its own mold, not this one.
2) What is the difference between GR1181G and GR1181GPLUS?
Conductor size is the only difference. GR1181G is set up for a 6 AWG conductor to 3/4 inch rod. GR1181GPLUS covers the combined 8 AWG solid and 8 AWG stranded configuration. Pick by the grounding electrode conductor you are actually welding, because the cavity is cut for that wire.
3) Is a Cadweld one-shot mold reusable or single use?
Single use. The GR1181G is a one-shot graphite mold, good for one connection and then discarded, so you order one mold per weld on the job. Reusable Cadweld graphite molds are a separate product family rated for many shots.
4) Do I need anything besides the mold to make the weld?
Yes. The GR1181G is the mold only. An exothermic connection also needs the matched Cadweld weld metal cartridge for that mold, an ignition source (flint igniter or control unit), and the rod and conductor cleaned and dry before the shot.
5) Can I use the GR1181G mold for a 4 AWG grounding electrode conductor?
No. The GR1181G covers 6 AWG, and the GR1181GPLUS covers 8 AWG solid plus 8 AWG stranded. A 4 AWG conductor needs a different Cadweld rod-to-cable mold sized for that wire. The mold cavity is cut to the exact conductor, so oversizing will not seal and the weld metal will run.
6) Why use an exothermic weld instead of a mechanical ground rod clamp?
An exothermic weld makes a molecular bond to the rod rather than a clamped mechanical joint, so there is nothing to loosen and no dissimilar-metal interface to corrode over the life of the install. A bolted acorn clamp is faster and inspectable, but on direct-buried or concrete-encased grounding, and on utility and substation work, the welded connection is what gets specified.
7) Will this mold work on a retrofit where the ground rod is already driven?
That is a normal application for it. The GR1181G handles rod-to-conductor terminations on new construction and retrofit grounding upgrades alike, as long as the rod top is exposed, clean, and the correct 3/4 inch diameter, and you have working room around the rod to close the mold and clamp it.
8) Is the GR1181G graphite mold suitable for stranded as well as solid conductor?
Yes, in the GR1181GPLUS version, which is cut for 8 AWG solid together with 8 AWG stranded. The plain GR1181G is the 6 AWG option. Match the mold to the conductor construction you have in hand, since solid and stranded seat differently in the cavity.
