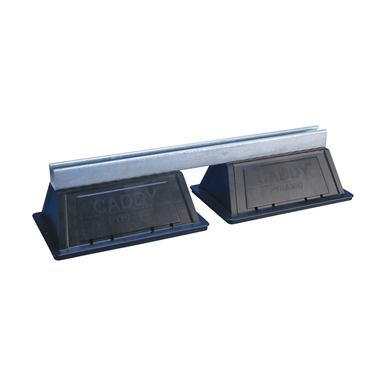

nVent CADDY PSB24A Rooftop Pyramid Support Bridge Assembly, Size 24

nVent CADDY PSB24A Rooftop Pyramid Support Bridge Assembly, Size 24

The nVent CADDY PSB24A Rooftop Pyramid Support Bridge Assembly, Size 24, is a Pyramid Series component designed to connect and bridge nVent CADDY Pyramid rooftop supports, creating a continuous, organized pathway for conduit, pipe, and cable runs across a roof surface. As a Pyramid Support product, this Size 24 bridge assembly is built to work within the broader Pyramid non-penetrating rooftop support platform, allowing contractors to extend runs between individual support blocks without adding extra roof attachment points. It is intended for commercial and industrial rooftop installations where multiple mechanical and electrical trades share common rooftop pathways, helping standardize hardware across a project.

Key Features

• Size Designation: Identified as Size 24 within the nVent CADDY Pyramid product family, allowing it to integrate with corresponding Pyramid support components.
• Pyramid Series Component: Part of the nVent CADDY Pyramid Series, a rooftop support platform designed to organize pipe, conduit, and cable routing.
• Bridge Assembly Function: Spans the gap between adjacent Pyramid supports so a single support run can carry multiple lines across the roof.
• Product Type: Classified as a Pyramid Support component, purpose-built for use within the nVent CADDY rooftop support ecosystem.
• Consolidated Routing: Helps reduce the number of individual rooftop attachment points by linking Pyramid support blocks into a shared run.
• System Compatibility: Designed to be used together with other nVent CADDY Pyramid Series components for a coordinated rooftop support layout.
• Contractor-Friendly Design: Supports faster assembly of extended rooftop conduit and pipe runs compared to point-by-point support methods.

Technical Specifications

• Product Type: Pyramid Support
• Series: Pyramid

Typical Applications

• Rooftop Conduit and Pipe Support Runs
• Non-Penetrating Rooftop Support Systems
• Commercial and Industrial Rooftop Electrical Installations
• Rooftop Mechanical Equipment Routing
• New Construction and Rooftop Retrofit Projects
• Multi-Trade Rooftop Pathway Coordination
• Rooftop Cable Tray and Raceway Support

Why nVent CADDY?

nVent CADDY's Pyramid Series is built to simplify rooftop support installations, and the PSB24A bridge assembly extends that system with a dedicated Size 24 connector for linking Pyramid supports into a continuous run. Choosing nVent CADDY Pyramid Support components helps contractors standardize rooftop routing hardware across commercial and industrial projects, keeping rooftop installations organized and consistent from block to block, run after run.
