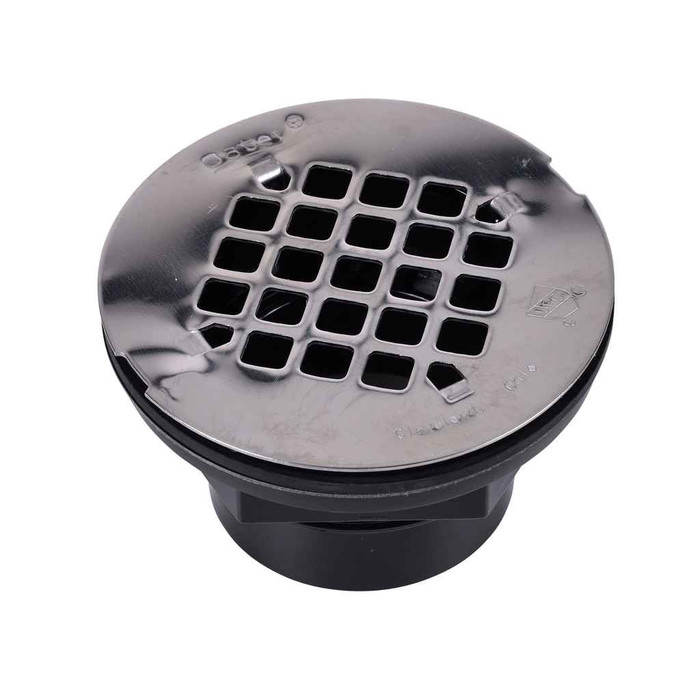

OATEY 42093 2 in. 101 PS ABS Solvent Weld Shower Drain with Stainless Steel Strainer

OATEY 42093 2 in. 101 PS ABS Solvent Weld Shower Drain with Stainless Steel Strainer

(No reviews yet) Write a Review

Model: 42093
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$71.43
$21.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
2 in. 101 PS ABS Solvent Weld Shower Drain with Stainless Steel Strainer

  • Features

    • Includes universal 4-1/4 in. round snap-tite stainless steel strainer
    • Strainer snaps onto the drain body after installation
    • 2 in. ABS Schedule 40 DWV pipe is secured with a mechanically compressed gasket that does not require caulking
    • Drain top also accommodates Oatey 4-1/4 in. Universal Snap-Tite Strainers, available in a variety of designer finishes (not included)
    • Black ABS shower drain
    • Solvent weld over 2 in. ABS DWV pipe
    • Ideal for slab construction
    • Fiber and rubber washer provides drain body with airtight seal to the shower base
    • Included drain cover helps keep drain clear of unwanted items to keep it flowing freely with fewer clogs
    • Drain for use with preformed shower stall bases


42093 - spec sheet

Manufacturer Resources

Product Specs

Volume:
0.035
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Drainage Products
Product Type:
Drain
Product Weight:
0.475

OATEY 42093 – Frequently Asked Questions

1) Does this Oatey drain work with a preformed fiberglass or acrylic shower base?
That's exactly what it's for. The 42093 is made for preformed shower stall bases: the body drops through the base drain opening and a fiber and rubber washer seals it airtight against the base. No caulk needed at the pipe connection either, since the 2 inch pipe is held with a mechanically compressed gasket.
2) Is the Oatey 101 PS shower drain a tile or mud-bed drain?
No. The 42093 is a one-piece ABS body for preformed shower stall bases, not a clamping ring drain for a tiled mortar bed shower pan. If you're setting a hot mop or sheet membrane pan, you need a two-piece drain with a clamping collar and weep holes instead.
3) Is a strainer included with the Oatey 42093, or do I have to buy it separately?

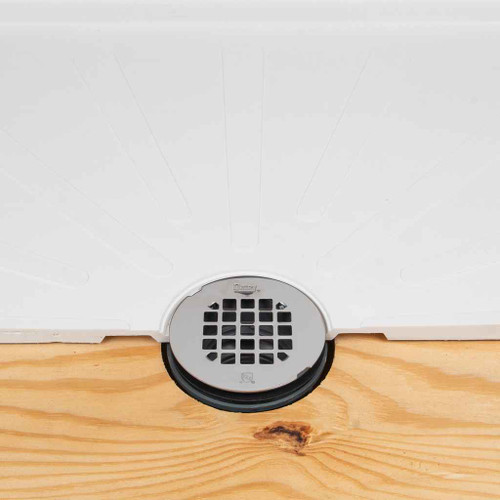

A universal 4-1/4 inch round snap-tite stainless steel strainer comes with it. It snaps onto the drain body after the drain is installed, so you can set the base and pipe first and add the cover at finish.
4) Can I swap the stainless strainer for a brushed nickel or bronze cover later?
Yes. The drain top accepts any Oatey 4-1/4 inch Universal Snap-Tite strainer, which come in a range of designer finishes. Those finish covers are sold separately, so if a tenant or owner wants the trim to match the shower valve, you replace just the snap-in cover and leave the ABS body in place.
5) Is this Oatey drain suitable for a slab-on-grade bathroom?
Yes, the 42093 is intended for slab construction. The solvent weld connection over 2 inch ABS DWV makes a permanent joint that can be poured around, and the snap-in strainer goes on afterward.
6) Do I need to caulk the pipe joint on the Oatey 42093 shower drain?
No caulking at the pipe. The 2 inch ABS pipe is secured with a mechanically compressed gasket, and the seal to the shower base is handled by the supplied fiber and rubber washer. It's a cleaner install than a caulked lead-style drain and one less material on the truck.
7) What color is the Oatey 42093 drain body?
The body is black ABS with a stainless steel strainer face. Once the base and cover are set, only the 4-1/4 inch stainless ring shows.
