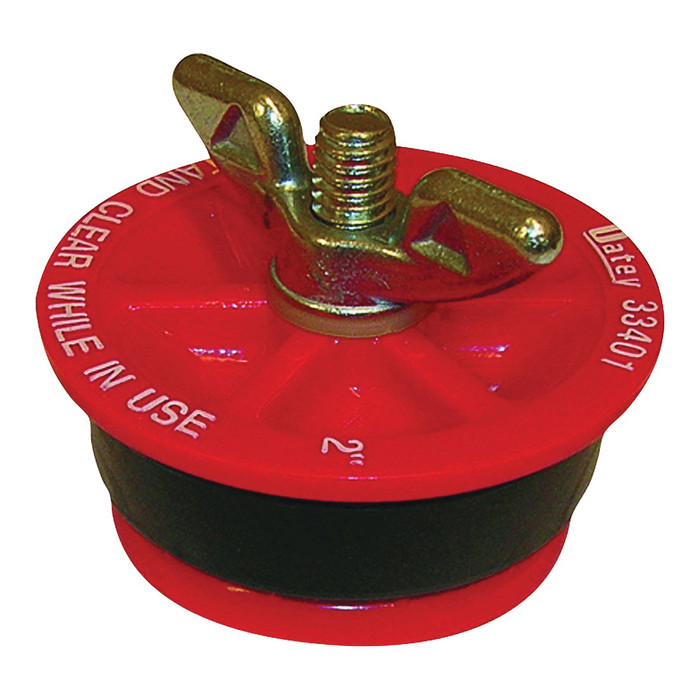

End of Pipe Gripper Plug 2 IN. GRIPPER
Features
- Natural rubber O-ring for excellent expansion and memory
- Galvanized carriage bolt to prevent corrosion
- Extra large zinc wing nut for ease of tightening, no wrench required,and will not rust
- Plug is rated for 17 PSI or 40-ft of head pressure
- End-of-pipe seals only at the end of a pipe, preventing plug from falling into stack
- End of Pipe Gripper plugs are made with ABS glass-reinforced plates for added strength
Manufacturer Resources
Product Specs
- Volume:
- 0.01
- Department:
- Plumbing
- Product Group:
- Plumbing Testing
- Product Subgroup:
- Testing Products
- Product Type:
- Test Plug
- Product Weight:
- 0.15
OATEY 33401 – Frequently Asked Questions
1) What pressure can the Oatey 33401 gripper plug hold during a DWV test?
The 33401 end-of-pipe gripper plug is rated for 17 PSI, which works out to 40 feet of head pressure. That covers a standard water column test on a stack of that height. If your test head exceeds 40 feet, you need a plug rated higher, not this one.
2) Can the Oatey 33401 be pushed down inside the pipe, or does it only seal at the opening?
It seals only at the end of the pipe. That is the point of the end-of-pipe design: the ABS plate bears on the pipe end so the plug cannot drop down into the stack and get lost. If you need to seal partway inside a run, an end-of-pipe gripper is the wrong tool, use an inside-pipe or inflatable test plug instead.
3) Do I need a wrench to set the Oatey 33401 gripper plug?
No tools. The 33401 uses an extra large zinc wing nut you tighten by hand to expand the rubber O-ring against the pipe. That matters on a rough-in where you are setting and pulling plugs repeatedly, and the zinc nut will not rust up between uses.
4) Is the Oatey 33401 test plug reusable on multiple jobs?
It is built to be. The seal is a natural rubber O-ring chosen for expansion and memory, so it returns to shape after being compressed, and the carriage bolt is galvanized against corrosion while the wing nut is zinc. Store it dry and it goes back in the truck for the next rough-in.
5) Will the plate on the Oatey 33401 crack under tightening pressure?
The plates on Oatey end-of-pipe gripper plugs are ABS reinforced with glass fiber for added strength, so they take the clamping load from the bolt without the flex you get from a plain plastic plate. It is still a hand-tightened plug, snug it until the O-ring seals rather than cranking on it.
6) How much does the Oatey 33401 gripper plug weigh for stocking and shipping?
Right around 0.15 lb each, so a case of them adds almost nothing to a truck stock or a van inventory. Handy if you are a property maintenance or MRO buyer keeping a few sizes on the shelf for repeat rough-in and repair tests.
