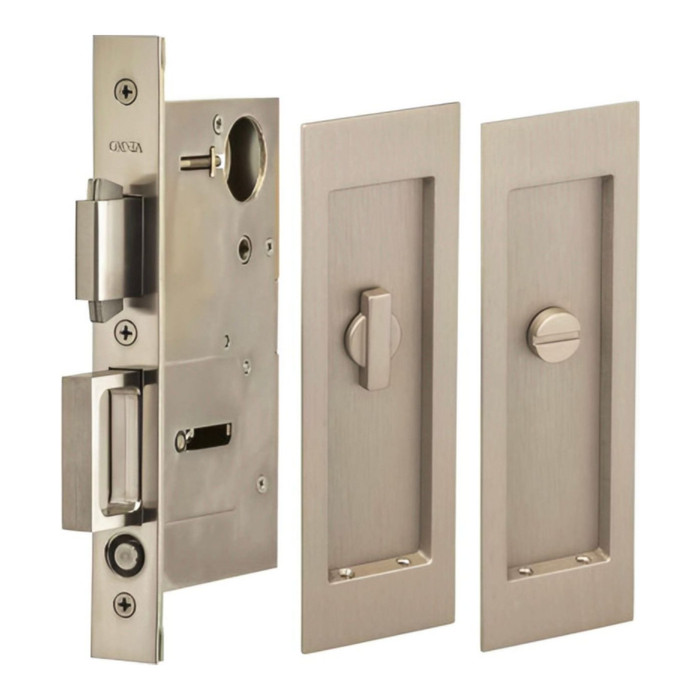

Name: Omnia 7035/L Privacy Flush Cup Pocket Door Lock with Turnpiece Thumbturn and Emergency Release, Solid Brass Construction
Brand: Omnia
SKU: 7035/L.26D
Price: 452.25 USD
Availability: InStock

Product Overview
FAQs

Omnia 7035/L Privacy Flush Cup Pocket Door Lock with Turnpiece Thumbturn and Emergency Release

The Omnia 7035/L Privacy Flush Cup Pocket Door Lock combines solid brass construction with reversible operation for versatile residential installations. Featuring a 2-1/2" backset and compatibility with 1-3/8" or 1-3/4" door thickness, this lock accommodates standard pocket door configurations. The 7" height and 2-1/4" width flush cup design provides a substantial feel with natural corrosion resistance from heat-forged brass construction, making it an ideal privacy solution for pocket door applications throughout the home.

Key Features

Precision Dimensions: 7" height, 2-1/4" width, and 3/8" depth with 2-1/2" backset for standard pocket door installations.
Door Compatibility: Accommodates 1-3/8" or 1-3/4" door thickness for versatile application options.
Solid Brass Construction: Heat-forged from raw brass bars for exceptional durability, substantial weight, and natural corrosion resistance.
Reversible Operation: Field-reversible design works for both left and right-handed applications without additional hardware.
Privacy Function: Turnpiece thumbturn with emergency release provides secure privacy operation with safety override capability.
Complete Installation Kit: Includes all necessary installation screws for immediate installation.
Versatile Finish Options: Beautiful finishes designed to blend with a variety of home décor styles.

Certifications & Compliance

1 Year Limited Warranty

Technical Specifications

Commercial/Residential: Residential
Department: Door Hardware
MAP Policy: Yes
Product Category: Sliding Door and Barn Door Hardware
Product Function: Privacy
Product Group: Sliding Door and Barn Door Hardware
Product Subgroup: Pocket Door Locks
Product Substrate: Brass
Product Type: Pocket Door Hardware
Subcategory: Flush Cups

Typical Applications

Residential Bathroom Privacy
Home Office Privacy Solutions
Master Bedroom Suite Applications
Guest Room Privacy Control
Multi-Generational Home Privacy Needs
Custom Home Interior Design Projects
Residential Renovation and Remodeling

Why Omnia 7035/L?

Omnia pocket door locks deliver residential-grade reliability with solid brass construction that begins with raw brass bars heated and forged into specialized dies for superior strength and durability. The heat-forged brass construction provides noticeable weight, smooth operation, and natural corrosion resistance that distinguishes it from lesser metals. Engineered for demanding residential applications where dependable privacy control with emergency release safety is essential.

Manufacturer Resources

Omnia 2026 Door Hardware Catalog

Product Specs

Product Group:: Sliding Door and Barn Door Hardware
Product Subgroup:: Pocket Door Locks
Product Type:: Pocket Door Hardware
Subcategory:: Flush Cups
Commercial/Residential:: Residential
MAP Policy:: Yes
Product Function:: Privacy
Product Category:: Sliding Door and Barn Door Hardware
Product Substrate:: Brass
Department:: Door Hardware

Omnia 7035/L.26D – Frequently Asked Questions

1) How big a cutout does the Omnia 7035/L flush cup need in the pocket door?

The cup body measures 7 inches by 2-1/4 inches by 3/8 inch deep, so you are routing a mortise that size into the face of the slab, plus the edge mortise at the 2-1/2 inch backset for the latch. That 7 inch height is a tall cup, so check you have clear stile face above and below your intended centerline before you cut.

2) Can someone unlock an Omnia pocket door lock from the outside if a child locks themselves in the bathroom?

Yes. The 7035/L is a privacy function lock with a turnpiece thumbturn on the inside and an emergency release on the outside, so the door can be opened from the hall in a lockout. That is the reason it goes on bath and bedroom pocket doors rather than a passage cup, which has no locking at all.

3) My pocket door is thicker than 1-3/4 inch. Is there a privacy pocket door lock that will still work?

Not the 7035/L, which is built for 1-3/8 or 1-3/4 inch slabs only. For a heavier door, the Weslock 0577 rectangular privacy pocket door lock covers 1-3/8 to 2 inch thickness and has an adjustable backset plus a full lip strike, so it also gives you room to move if your existing edge mortise is not at 2-1/2 inches.

4) Will the Omnia 7035/L drop into the cutout my old pocket door lock left behind?

Only if the old cup was the same size. The 7035/L needs a 7 by 2-1/4 inch face mortise and a 2-1/2 inch backset, which is a much taller cup than the common small square units like the Deltana SDL25 at 2-1/2 by 2-3/4 inches or the Emtek 2102 privacy at 2-3/8 by 3-1/8 inches. Coming off one of those, the 7035/L will cover the old hole rather than sit in it, but the edge mortise still has to land at 2-1/2 inches. If your existing backset is 2-3/8, the Pamex PF2 round sliding door lock is built to that backset instead.

5) The bathroom pocket door does not need a lock, only a pull to close it. What replaces the Omnia 7035/L there?

For a pocket door that only needs to be pulled shut, the passage versions carry no locking mechanism at all: the Weslock 0527 is a rectangular passage pocket door lock with no locking, the Emtek 2101 is a passage pocket door lock at 2-3/8 inch by 3-1/8 inch, the Deltana SDP25 is a 2-1/2 inch by 2-3/4 inch passage unit, and the Weslock 0627 is a round passage version with adjustable backset and full lip strike. The Omnia 7035/L is a privacy function lock with a turnpiece thumbturn and emergency release, which is what a bath or bedroom door needs and a closet or hall door does not.

6) What is the closest privacy pocket door lock to the Omnia 7035/L if the flush cup needs to be a tall rectangular plate?

The Weslock 0577 is the nearest rectangular privacy pocket door lock, and it carries an adjustable backset and a full lip strike with a 1-3/8 inch to 2 inch door thickness range. The Omnia 7035/L is a 7 inch by 2-1/4 inch solid brass flush cup with a fixed 2-1/2 inch backset and a turnpiece thumbturn with emergency release, sized for 1-3/8 inch or 1-3/4 inch doors. If the door prep is already cut for a fixed 2-1/2 inch backset, the 7035/L drops in; if the backset on the existing prep is unknown or varies across a run of doors, the adjustable backset of the 0577 absorbs that variation.

7) Is there a smaller privacy pocket door lock than the Omnia 7035/L for a door with a shallow rail?

The Omnia 7035/L cup is 7 inches tall by 2-1/4 inches wide, which needs a stile deep enough to take that plate. Shorter privacy alternatives include the Deltana SDL25 at 2-1/2 inches by 2-3/4 inches, the Deltana SDLA325 at 3-1/4 inches by 2-1/4 inches, the Emtek 2102 at 2-3/8 inches by 3-1/8 inches, and the Deltana SDL60 at 6 inches. All four are privacy or bed/bath function like the 7035/L, so the operation is the same; only the plate footprint on the door face changes.

8) Is the Omnia 7035/L solid brass all the way through or brass plated?

Solid brass. The parts are heat-forged from raw brass bars into dies, not plated pot metal, which is why the cup has real weight in the hand and holds up in a humid bathroom pocket door without corroding. Substrate on the spec sheet is brass.

9) Is the Omnia 7035/L pocket door lock rated for a commercial building or an apartment turn?

It is a residential-grade lock. Omnia lists the 7035/L as residential, aimed at bath, bedroom, and home office privacy. For a commercial corridor or a high-traffic institutional opening, the Rockwood 891 pocket door privacy latch is the commercial-brand privacy option to look at instead.

10) Is there a keyed pocket door lock instead of a thumbturn privacy one?

The 7035/L is thumbturn privacy, not keyed. If you need an actual key on a pocket door, the Emtek 2153 narrow modern rectangular pocket door mortise lock at 2 by 7-1/4 inches is a keyed unit, and it is close to the 7035/L in footprint if you want the same tall flush plate look.

11) Will the flush cup on this pocket door lock sit flat so the door still slides into the pocket?

Yes, that is the point of the flush cup design. The cup recesses 3/8 inch into the face of the slab so nothing stands proud of the door and the leaf runs into the pocket clean. A surface-mounted pull would foul the jamb on the way in.

12) Will the NGP SLAL250PD72 track or the Orca PK1200 frame kit work in place of the Omnia 7035/L?

No. The NGP SLAL250PD72 is a 72 inch pocket door aluminum track rated up to 250 pounds, and the Orca Hardware PK1200 is a pocket door frame kit for 1 inch or 1-3/4 inch doors. Those are the pocket and hanging system the door rides in. The Omnia 7035/L is the privacy lock and flush cup that mounts in the leading edge and face of the door leaf. A complete pocket door opening usually takes both: frame or track from one, latching hardware from the other.

13) What is the difference between the Omnia 7035/L and the Emtek 2153 pocket door lock?

The Emtek 2153 is a narrow modern rectangular pocket door mortise lock at 2 inches by 7-1/4 inches and is keyed. The Omnia 7035/L is a privacy flush cup with a turnpiece thumbturn and emergency release, meant for bath, bedroom and home office doors where the occupant turns the piece from inside and the release opens it from outside in an emergency. The two are close in plate height but answer different security needs: a keyed cylinder on the 2153, a thumbturn on the 7035/L. The Emtek #8 Classic Arched pocket door mortise lock, at 2-7/8 inches by 7-5/8 inches in brass, is the arched-plate member of that same mortise family.

14) For a run of pocket doors where some are baths and some are closets, can one product line cover both functions?

Yes, several families pair a privacy and a passage unit in the same plate style. Deltana offers the SDL25 privacy and the SDP25 passage, both 2-1/2 inches by 2-3/4 inches. Emtek offers the 2102 privacy and the 2101 passage, both 2-3/8 inches by 3-1/8 inches. Weslock offers the 0577 rectangular privacy and the 0527 rectangular passage. The Omnia 7035/L is the privacy unit, a solid brass flush cup with turnpiece and emergency release, and it comes in eight finishes so a mixed set of doors reads consistently across the floor.

15) What finishes does the Omnia 7035/L pocket door lock come in?

Eight: Bright Brass, Satin Brass, Antique Brass, Bright Nickel, Satin Nickel, Bright Chrome, Satin Chrome, and Black Oil-Rubbed. If you are standardizing a whole floor of pocket doors, that spread lets you match warm brass or a cooler nickel or chrome across the openings without mixing brands.

16) What privacy option is there for a pocket door if the Omnia 7035/L flush cup is more hardware than the opening needs?

The Rockwood 891 is a pocket door privacy latch with a privacy or bed/bath function, and the Deltana SDL25 at 2-1/2 inches by 2-3/4 inches is a compact privacy pocket door lock. Both hold the door closed for a bath or bedroom with a smaller face plate than the Omnia 7035/L, which is a 7 inch tall solid brass flush cup heat-forged from raw brass bars and offered in eight finishes including satin nickel, bright chrome, antique brass and black oil-rubbed. Where the door is a visible design element and the finish has to match the rest of the room, the wider Omnia finish range is the reason to stay with the 7035/L.

How fast can I get the Omnia 7035/L.26D delivered?

Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.

Can I return it if it doesn’t work for me?

Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.

Does the Omnia 7035/L.26D come with a warranty?

Absolutely. The Omnia 7035/L.26D is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.

How do I get technical support or installation help for the Omnia 7035/L.26D?

You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us

Why buy the Omnia 7035/L.26D from ZenSupply?

ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
