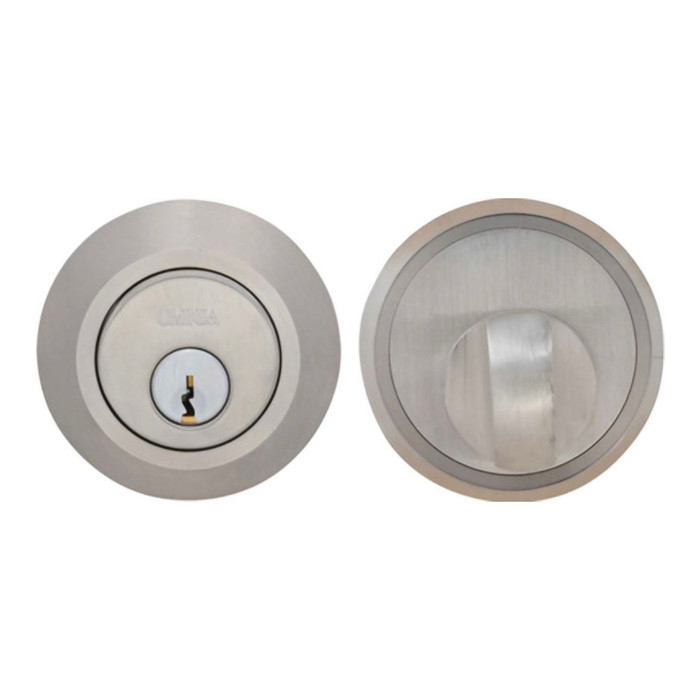

Omnia Omnia D9002 Modern Single Cylinder Low Profile Auxiliary Deadbolt, Solid Stainless Steel OMN-D9002-A

Omnia D9002-A Modern Single Cylinder Auxiliary Deadbolt with Low Profile Design

(No reviews yet) Write a Review

Model: D9002A34.34.32D
From the Modern Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$339.00
$254.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Omnia D9002-A Modern Single Cylinder Auxiliary Deadbolt with Low Profile Design

The Omnia D9002-A Modern Single Cylinder Auxiliary Deadbolt delivers contemporary residential security with solid stainless steel construction and a low profile design. This deadbolt features a 2-1/2" diameter with a minimal 9/16" exterior projection and 1-5/8" interior turnpiece projection, fitting standard 2-1/8" bore preparations for easy retrofit or new construction installation. The US32D finish provides durable, corrosion-resistant protection while maintaining a sleek modern aesthetic suited to contemporary hardware suites.

Key Features

  • Compact Low Profile Design: 9/16" exterior projection and 1-5/8" interior turnpiece projection minimize door surface intrusion while maintaining full security function.
  • Standard Bore Compatibility: Designed for 2-1/8" standard bore installation, with a 2-1/2" diameter, for easy retrofit or new construction applications.
  • Solid Stainless Steel Construction: Durable stainless steel materials provide exceptional corrosion resistance and long-term reliability in residential applications.
  • Modern Collection Design: Contemporary styling complements modern architectural elements and hardware suites.
  • Single Cylinder Operation: Cylinder exterior with thumbturn interior provides convenient access control with key override capability.
  • Smart Lock Compatible: Available integration with Bolt smart lock technology for enhanced access control options.
  • Professional Finish: US32D finish delivers consistent appearance and durability for residential installations.

Technical Specifications

  • MAP Policy: Yes
  • Collection: Modern
  • Commercial/Residential: Residential
  • Department: Door Hardware
  • Lock Function: Deadbolt
  • Product Attribute: Deadbolts
  • Product Category: Mechanical Locks
  • Product Function: Cylinder x Thumbturn
  • Product Group: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • Product Type: Deadbolts
  • Subcategory: Deadbolts

Typical Applications

  • Modern Residential Properties
  • Contemporary Home Construction
  • Residential Security Upgrades
  • Multi-Unit Residential Buildings
  • Condominium and Townhome Projects
  • Architectural Hardware Coordination
  • Smart Home Integration Projects

Why Omnia D9002-A?

Omnia Modern deadbolts deliver residential-grade security with solid stainless steel construction and precision engineering. The low profile design, with its 2-1/2" diameter and minimal exterior and interior projections, provides contemporary aesthetics without compromising security performance. Engineered for reliable residential applications where modern design and dependable operation are essential.

Manufacturer Resources

Omnia 2026 Door Hardware Catalog

Product Specs

Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Deadbolts
Subcategory:
Deadbolts
Commercial/Residential:
Residential
Lock Function:
Deadbolt
Product Attribute:
Deadbolts
MAP Policy:
Yes
Product Function:
Cylinder x Thumbturn
Product Category:
Mechanical Locks
Collection:
Modern
Department:
Door Hardware

Omnia D9002A34.34.32D – Frequently Asked Questions

1) Will the Omnia D9002-A deadbolt fit a 1-3/8 inch door, or is it 1-3/4 only?
Both. The D9002-A is ordered by door thickness, 1-3/8 inch or 1-3/4 inch, and each thickness comes in either a 2-3/8 inch or a 2-3/4 inch backset. So there are four combinations to pick from, and you specify thickness and backset together on the order. Measure the door edge and measure from the door edge to the center of the existing bore before you choose.
2) Can I drop an Omnia D9002-A into the existing deadbolt holes on my door?
If the door is bored to the standard 2-1/8 inch cross bore, yes. The D9002-A is made for a 2-1/8 inch bore prep, and the trim measures 2-1/2 inches in diameter, so it covers the bore and a little beyond. The other thing to match is backset: it comes in 2-3/8 inch and 2-3/4 inch, which are the two standard residential backsets, so measure from the door edge to the bore center and order that one. No new holes needed on a standard prep.
3) Is the Omnia D9002-A deadbolt rated for a commercial building or an apartment entry door?
It is a residential deadbolt. Omnia lists the Modern D9002-A as residential, and it suits condos, townhomes, and multi-unit residential entry doors where the look matters. For a commercial opening or anywhere a spec calls out a graded lock, go to a graded commercial deadbolt instead: the Accentra D111 and the Dexter DB1000 are Grade 1 cylinder x thumbturn deadbolts, and the Hager 3215 is a Grade 2 single cylinder with a 1 inch throw.
4) What does auxiliary deadbolt mean on the Omnia D9002-A, and do I still need a knob or lever?
Auxiliary means the deadbolt is the security bolt only, mounted above the handle. It has no latch and no way to hold the door closed on its own, so the door still needs a knobset, leverset, or handleset in the lower bore to latch and to operate. If you would rather have one unit doing both, an interconnected lock like the Falcon H2101 combines an entrance function with a single cylinder deadbolt in one assembly.
5) What is the Omnia D9002-A alternative for a door thicker than 1-3/4 inch?
The D9002-A is built for 1-3/8 inch and 1-3/4 inch doors. On thicker stock, the Dexter DB1000 single cylinder is a Grade 1 deadbolt covering 1-3/8 inch to 1-7/8 inch doors, the Deltana 7312KA2 is a Grade 3 double cylinder deadbolt spanning 1-3/8 inch to 2 inch, and the Corbin Russwin DL3011 is a Grade 1 cylindrical deadlock for 1-3/4 inch to 2-1/4 inch doors.
6) The Omnia D9002-A is residential. What should I use on a commercial opening instead?
The D9002-A is built for residential applications. For commercial openings, the Accentra D111 is a Grade 1 single cylinder deadbolt with a 2-3/8 inch backset covering 1-3/8 inch to 1-3/4 inch doors, and the Falcon D111 is a Grade 1 heavy duty deadbolt with an adjustable backset. The Cal-Royal CRB800 is a heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch. If Grade 2 suits the opening, the Hager 3215 is a single cylinder deadbolt with a 1 inch throw for 1-3/8 inch to 1-3/4 inch doors and carries a fire rating.
7) What is the closest cross-brand equivalent to the Omnia D9002-A deadbolt?
The Omnia D9002-A is a single cylinder auxiliary deadbolt with cylinder outside and thumbturn inside, offered in 2-3/8 inch and 2-3/4 inch backsets for 1-3/8 inch and 1-3/4 inch doors. For the same cylinder x thumbturn function in a contemporary trim, the Bravura 310RC Elite is a Grade 2 contemporary round deadbolt and the Bravura 310SC Elite is the square-trim version of the same Elite line. The Brinks Mendocino E2402 is another contemporary square single cylinder deadbolt, and it uses a 4 way adjustable backset rather than ordering the backset as a fixed option.
8) Which deadbolts look like a substitute for the Omnia D9002-A but will not drop into the same 2-1/8 inch bore?
The D9002-A installs in a standard 2-1/8 inch bore with a 2-3/8 inch or 2-3/4 inch backset. Several deadbolts in the same family prep differently. The Emtek 2050 and 2051 are European mortise deadbolts with an integrated roller latch, and the Dormakaba D900 is a small case mortise deadbolt, so all three need a mortise pocket rather than a bored hole. The Codelocks CL200 is a surface deadbolt with key override and the Codelocks CL2200 is an electronic surface deadbolt, both mounted to the door face. The Callan 205S is a one-sided half-bore deadbolt, and the Arrow 460 is a mortise lock strike, not a lock at all.
9) I need interchangeable core keying, which the Omnia D9002-A does not use. What deadbolt takes an IC core?
The D9002-A is a single cylinder deadbolt with a fixed cylinder outside. For a facility keyed on interchangeable cores, the Deltana CL200LAIC is a Grade 2 single cylinder deadbolt prepped for an interchangeable core with a 2-3/4 inch backset, which matches one of the D9002-A backsets. The Arrow E61 26D IC is a Grade 2 single cylinder deadlock with SFIC prep less core for 1-3/8 inch to 1-3/4 inch doors, and the Delaney LM Series 301702 is a Grade 1 single cylinder less core deadbolt.
10) How far does the Omnia D9002 deadbolt stick out from the door face?
Very little on the outside: 9/16 inch of exterior projection, with the interior turnpiece projecting 1-5/8 inch. That low outside profile is the point of the Modern collection version, and it matters if you have a storm door, a screen door, or a tight jamb reveal where a taller escutcheon would foul the swing.
11) What is the Omnia D9002 auxiliary deadbolt actually made of, and will it hold up on a coastal or exterior door?
Solid stainless steel, finished US32D (satin stainless). Stainless is the reason to pick it over a plated brass deadbolt on a weather-exposed entry, since the corrosion resistance is in the base material rather than in a coating that can wear through at the thumbturn and keyway.
12) I need my deadbolts to match across a building. What finish is the Omnia D9002-A and what else comes in it?
The D9002-A is US32D, satin stainless, which is the finish that reads closest to the 26D satin chrome used on most commercial and multi-family hardware. If you are standardizing a run of doors and want the same tone from a different line, the Delaney LU Series double cylinder deadbolt is also listed in US32D stainless steel, and the Delaney LM Series Grade 1 is dull chrome US26D.
13) I do not know my backset yet. Is there a deadbolt that covers both 2-3/8 and 2-3/4 without picking one?
The Omnia D9002-A is not adjustable, you order the backset you need, either 2-3/8 inch or 2-3/4 inch. When you are buying ahead of a site measure, an adjustable-backset deadbolt saves the return: the Brinks Raleigh Series and Brinks Mendocino Series both have a 4-way adjustable backset, and the Cal-Royal ED500 and Falcon D111 are also listed with adjustable backset.
14) I need a double cylinder deadbolt in a contemporary style, not the single cylinder Omnia D9002-A. What are my options?
The D9002-A is single cylinder, keyed outside with a thumbturn inside. For keyed-both-sides in a contemporary look, the Baldwin Reserve Double Cylinder Contemporary Round and Contemporary Square deadbolts are both double cylinder, and the Emtek 8323 Modern Disc is a double cylinder brass deadbolt. The Delaney LU Series 320601 is a Grade 2 double cylinder deadbolt in a stainless steel US32D finish, which is the same finish family as the D9002-A.
15) The Omnia D9002-A mentions smart lock integration. What deadbolts are electronic out of the box?
The D9002-A is a mechanical single cylinder deadbolt with available Bolt smart lock integration. If you want the electronics built into the lock, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote, the Dormakaba Saffire LX-D is an RFID electronic deadbolt with BLE and electronic lock override, and the Dormakaba Nova-D is an RFID multihousing smart electronic deadbolt. The Codelocks CL2210 is an electronic mortise deadbolt, which changes the door prep from a bored hole to a mortise pocket.
16) I am standardizing a multi-unit building and want one backset to cover every door instead of stocking both Omnia D9002-A backsets. What deadbolt does that?
The D9002-A is ordered by backset, 2-3/8 inch or 2-3/4 inch, so a mixed building means two part numbers. Adjustable-backset alternatives cover both from one box: the Cal-Royal ED500 is a Grade 3 single cylinder deadbolt with adjustable backset for 1-3/8 inch to 1-3/4 inch doors, the Falcon D211 is a Grade 2 single cylinder deadbolt, the Falcon D111 is Grade 1 with adjustable backset, and the Brinks Raleigh E2401 is a transitional round single cylinder deadbolt with a 4 way adjustable backset.
17) What deadbolt has an easier thumbturn to grip than the Omnia D9002-A low profile turnpiece?
The D9002-A uses a low profile turnpiece with a 1-5/8 inch interior projection, which keeps the inside of the door flush. Where an easier grip matters, the Cal-Royal LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn, sized for 1-3/8 inch to 1-3/4 inch doors, the same door thickness range the D9002-A covers.
18) What is a simpler non-keyed alternative to the Omnia D9002-A for an interior or exit door?
The D9002-A is keyed outside with a thumbturn inside. Where no key is wanted on the outside, the Arrow E60 is a Grade 2 exit deadlock, non-keyed, with a blank plate outside and a thumbturn inside, for 1-3/8 inch to 1-3/4 inch doors. The Callan 205S is a one-sided half-bore deadbolt, which puts hardware on one face only.
19) What single cylinder deadbolts are the closest ordering match to the Omnia D9002-A 2-3/4 inch backset version?
The D9002-A 2-3/4 inch backset version fits 1-3/8 inch and 1-3/4 inch doors with a cylinder outside and thumbturn inside. The Deltana CL200LA is a Grade 2 single cylinder deadbolt built to a 2-3/4 inch backset, and the Deltana CL200LM is the Grade 1 single cylinder version of the same cylinder x thumbturn function. Both are ordered to a fixed backset the same way.
20) What deadbolt matches the Omnia D9002-A stainless look but in a traditional rather than modern trim?
The D9002-A is from Omnia's Modern collection with a US32D stainless finish. For a traditional profile in the same cylinder x thumbturn function, the Bravura 310B Elite is a Grade 2 traditional round deadbolt, and the Emtek #11 Tuscany is a lost wax cast bronze deadbolt. The Bravura 910005 is a Grade 2 single cylinder deadbolt with rectangular trim if you want a squared-off plate without the modern disc styling.
