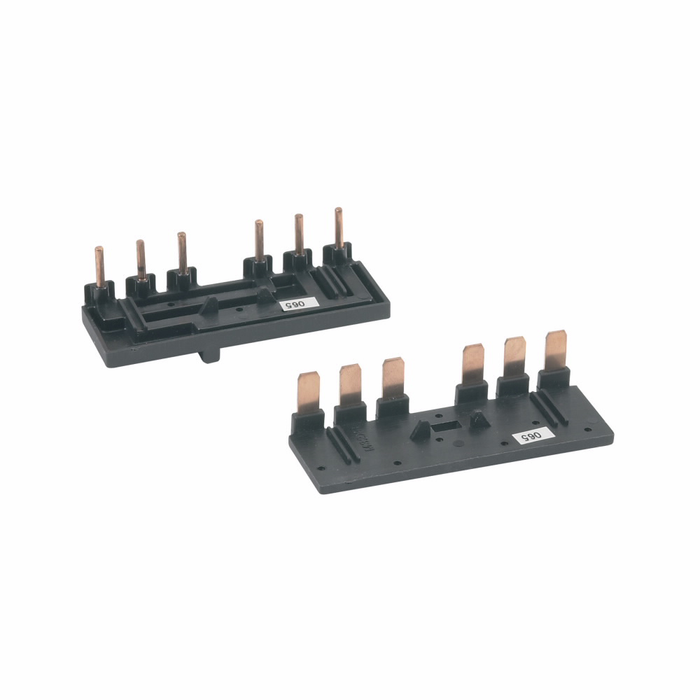

Eaton Reversing Link Kit Contactor Accessory

Eaton Reversing Link Kit Contactor Accessory

(No reviews yet) Write a Review

Model: XTCEXRLB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$68.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Reversing Link Kit Contactor Accessory

The Eaton Reversing Link Kit Contactor Accessory is a mechanical linking component engineered for use with Eaton XTE040 through XTE065 frame size contactors, enabling a reliable reversing contactor assembly for motor control applications. Built to IEC 60947 standards, this accessory kit ships one per package and also includes the required interlocking bridge (XTCEXLBB) so the reversing configuration is mechanically interlocked for safe, code-compliant operation. Panel builders use this kit to convert a pair of compatible Eaton XTE-series contactors into a single reversing starter assembly for forward-reverse motor control, without sourcing the linking hardware and interlocking bridge as separate line items. Designed for professional electrical panel builders, OEM control panel assemblers, and industrial maintenance teams standardizing on Eaton motor control components.

Key Features

  • Frame Compatibility: Designed for use with Eaton XTE040 - XTE065 frame size contactors for a precise mechanical fit and reliable operation.
  • Reversing Link Function: This Contactor Accessory - Reversing Link Kit allows two compatible XTE-series contactors to be mechanically joined into a single reversing assembly for forward/reverse motor control circuits.
  • Includes Interlocking Bridge: The kit also includes the interlocking bridge (XTCEXLBB) required for a fully mechanically interlocked reversing contactor pair, helping prevent simultaneous energization of both contactors.
  • Quantity: Supplied as 1 kit per package for a single reversing contactor assembly, simplifying stocking and ordering for panel shops.
  • Standards Compliance: Manufactured to IEC 60947 low-voltage switchgear and controlgear standards for dependable performance in industrial control applications.
  • Simplified Assembly: Combines the reversing link and interlocking bridge in a single accessory kit, reducing assembly time versus sourcing individual components.

Certifications & Compliance

  • IEC 60947 Compliant

Technical Specifications

  • Quantity: 1
  • Certifications: IEC 60947
  • Type: Contactor Accessory - Reversing Link Kit
  • Warranty: Not Applicable
  • Catalog Notes: Also includes interlocking bridge (XTCEXLBB)

Typical Applications

  • Reversing Motor Control Assemblies
  • Motor Control Center (MCC) Panel Builds
  • OEM Control Panel Assembly
  • Industrial Motor Starter Configurations
  • Forward-Reverse Motor Starter Circuits
  • Contactor Retrofit and Upgrade Projects

Why Eaton?

Eaton contactor accessories are engineered to IEC 60947 standards, ensuring the Reversing Link Kit delivers a dependable, code-compliant mechanical connection between XTE040 - XTE065 frame size contactors. With the interlocking bridge (XTCEXLBB) included, electrical professionals get a complete, properly interlocked reversing solution for demanding industrial and commercial motor control installations, backed by Eaton's reputation for reliable motor control and protection components.

Manufacturer Resources

Product Specs

Item Quantity:
1
Certifications:
IEC 60947
Product Type:
Reversing Link Kit
Warranty:
Not Applicable
Catalog Notes:
Also includes interlocking bridge (XTCEXLBB)
Department:
Electrical
Standards:
IEC 60947
Product Group:
Motor Control & Automation
Product Subgroup:
Contactors & Relays

Eaton XTCEXRLB – Frequently Asked Questions

1) Which Eaton contactors does the XTCEXRL reversing link kit fit?
The reversing link kit is built for Eaton XTE-series contactors in the XTE040 through XTE065 frame sizes. It mechanically joins two of those contactors into one reversing assembly for forward/reverse motor control. If your contactors fall outside that frame range, this kit will not mount.
2) Do I need to order the mechanical interlock separately with the Eaton reversing link kit?
No. The interlocking bridge, Eaton XTCEXLBB, comes in the kit. That is the part that prevents both contactors from being energized at the same time, so you get a fully mechanically interlocked reversing pair without a second line item.
3) Which frame option letter do I pick on the Eaton reversing link kit, B, C, D or F-G?
Four versions are offered, keyed to the contactor frame: XTCEXRLB (option B), XTCEXRLC (option C), XTCEXRLD (option D), and XTCEXRLG (option F-G). Match the letter to the frame size of the two XTE contactors you are linking. Ordering the wrong letter gives you hardware that will not seat on the contactor bodies.
4) How many reversing starters does one Eaton XTCEXRL kit build?
One. The kit ships as a single package covering one reversing contactor assembly, meaning one pair of contactors. A panel shop building four reversing starters needs four kits.
5) Is the Eaton reversing link kit rated to a recognized control gear standard for our panel specs?
It is manufactured to IEC 60947, the low-voltage switchgear and controlgear standard, which is the reference most control panel specifications cite for contactor accessories.
6) Can I use this kit to convert two existing XTE contactors already in a panel into a reversing starter?
That is the intended use. Two compatible XTE040 to XTE065 contactors already mounted can be mechanically linked and interlocked with this kit rather than replacing them with a factory-built reversing starter. It is called out for retrofit and upgrade work as well as new MCC and OEM panel builds.
7) Does the Eaton reversing link kit provide electrical interlocking as well as mechanical?
What the kit provides is mechanical interlocking, by way of the included XTCEXLBB bridge, which physically blocks both contactors closing together. Any electrical interlock in the control circuit is handled separately by auxiliary contacts and your wiring design.
