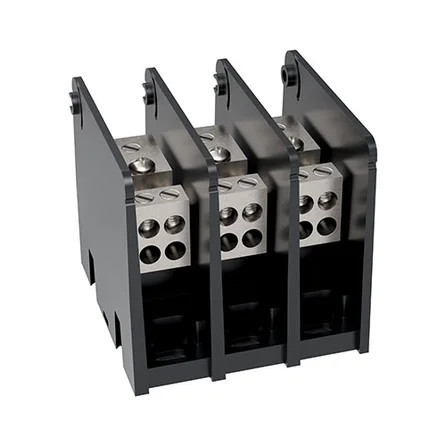

Mersen Open-Style Power Distribution Block UL 1953 1000V 85A 3-Pole with Tin-plated Aluminum Connectors

Mersen Open-Style Power Distribution Block UL 1953 1000V 85A 3-Pole with Tin-plated Aluminum Connectors

(No reviews yet) Write a Review

Model: MPDB63163

In Stock (leaves warehouse same day if ordered before 3pm ET)

$197.87
$147.87
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Mersen Open-Style Power Distribution Block UL 1953 1000V 85A 3-Pole with Tin-plated Aluminum Connectors

Professional Power Distribution for Industrial & Commercial Applications

The Mersen open-style power distribution block delivers reliable electrical distribution with UL 1953 certification for 1000V AC/DC applications. This 3-pole distribution block features tin-plated aluminum connectors with 85A copper rating and 65A aluminum rating, housed in glass filled polycarbonate for durability. The compact design accommodates #4-#14 wire ranges with box-to-box connectivity and direct screw mounting for versatile installation requirements.

Professional Features & Benefits

  • 1000V AC/DC Rating: Supports high-voltage applications with dual AC/DC compatibility for maximum versatility in industrial and commercial power systems.
  • 85A Copper / 65A Aluminum Capacity: Dual amperage ratings accommodate different conductor materials while maintaining safe operating parameters.
  • UL 1953 Certification: Meets stringent safety standards for power distribution blocks, ensuring reliable performance in critical electrical applications.
  • Tin-plated Aluminum Connectors: Corrosion-resistant connections provide long-term reliability and optimal conductivity in demanding environments.
  • Glass Filled Polycarbonate Housing: Durable insulating material offers superior mechanical strength and electrical insulation properties.
  • 100 kA Short Circuit Rating: High fault current capability with appropriate fuse protection ensures system protection and safety.
  • Flexible Wire Range #4-#14: Accommodates various conductor sizes for versatile connection options in different applications.

Technical Specifications

  • Ac Or Dc: AC/DC
  • Ampere Rating Al: 65 A
  • Ampere Rating Cu: 85 A
  • Body Insulating Material: Glass Filled Polycarbonate
  • Connector Material: Tin-plated Aluminum
  • Connector Type Primary: Box
  • Connector Type Secondary: Box
  • Frequency Hz: 50/60 Hz
  • Hex Screw Size Type Primary: 1/4-28 x .38
  • Hex Screw Size Type Secondary: 1/4-28 x .38
  • Hole Diameter Primary: 0.25 in
  • Hole Diameter Secondary: 0.25 in
  • Installation Mounting: Direct Screw Mount
  • Number Of Openings Per Pole Primary: 1
  • Number Of Openings Per Pole Secondary: 4
  • Number Of Poles: 3-Pole
  • Product Height: 2.81 in
  • Product Length: 3.08 in
  • Product Weight: 0.56 lb
  • Product Width: 2.91 in
  • Rated Voltage Ac Ul: 1000 V
  • Rated Voltage Dc Ul: 1000 V
  • Rohs Compliant: Yes
  • Short Circuit Rating Class Cc: 100 kA with 30A Fuse
  • Short Circuit Rating Class G: 100 kA with 60A Fuse
  • Short Circuit Rating Class J: 100 kA with 100A Fuse
  • Short Circuit Rating Class L: 100 kA with 100A Fuse
  • Short Circuit Rating Class Rk1: 100 kA with 60A Fuse
  • Short Circuit Rating Class Rk5: 100 kA with 30A Fuse
  • Short Circuit Rating Class T: 100 kA with 100A Fuse
  • Short Circuit Rating Standalone: 10 kA
  • Torque Rating Primary: #4-#6 35; #8 25; #10-#14 20
  • Torque Rating Secondary: #4-#6 35; #8 25; #10-#14 20
  • Wire Range Primary: #4-#14
  • Wire Range Secondary: #4-#14

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Industrial Control Panels and Motor Control Centers
  • Commercial Power Distribution Systems
  • Manufacturing Equipment Power Distribution
  • Electrical Switchgear and Panel Board Applications
  • Process Control and Automation Systems
  • High-Voltage DC Power Distribution
  • Renewable Energy System Distribution

Why Choose Mersen Quality?

Mersen power distribution blocks combine UL 1953 certification with RoHS compliance and robust glass filled polycarbonate construction. The tin-plated aluminum connectors and comprehensive short circuit ratings across multiple fuse classes ensure reliable performance in demanding electrical environments, backed by proven engineering excellence.

Manufacturer Resources

Product Specs

Ac Or Dc:
AC/DC
Ampere Rating Al :
65 A
Ampere Rating Cu :
85 A
Body Insulating Material:
Glass Filled Polycarbonate
Connector Material:
Tin-plated Aluminum
Connector Type Primary :
Box
Connector Type Secondary :
Box
Frequency Hz :
50/60 Hz
Hex Screw Size Type Primary :
1/4-28 x .38
Hex Screw Size Type Secondary :
1/4-28 x .38
Hole Diameter Primary :
0.25 in
Hole Diameter Secondary :
0.25 in
Installation Mounting:
Direct Screw Mount
Number Of Openings Per Pole Primary :
1
Number Of Openings Per Pole Secondary :
4
Number Of Poles:
3-Pole
Product Height:
2.81 in
Product Length:
3.08 in
Product Weight:
0.56 lb
Product Width:
2.91 in
Rated Voltage Ac Ul:
1000 V
Rated Voltage Dc Ul:
1000 V
Rohs Compliant:
Yes
Short Circuit Rating Class Cc :
100 kA with 30A Fuse
Short Circuit Rating Class G :
100 kA with 60A Fuse
Short Circuit Rating Class J :
100 kA with 100A Fuse
Short Circuit Rating Class L :
100 kA with 100A Fuse
Short Circuit Rating Class Rk1 :
100 kA with 60A Fuse
Short Circuit Rating Class Rk5 :
100 kA with 30A Fuse
Short Circuit Rating Class T :
100 kA with 100A Fuse
Short Circuit Rating Standalone :
10 kA
Torque Rating Primary :
#4-#6 35; #8 25; #10-#14 20
Torque Rating Secondary :
#4-#6 35; #8 25; #10-#14 20
Wire Range Primary :
#4-#14
Wire Range Secondary :
#4-#14
