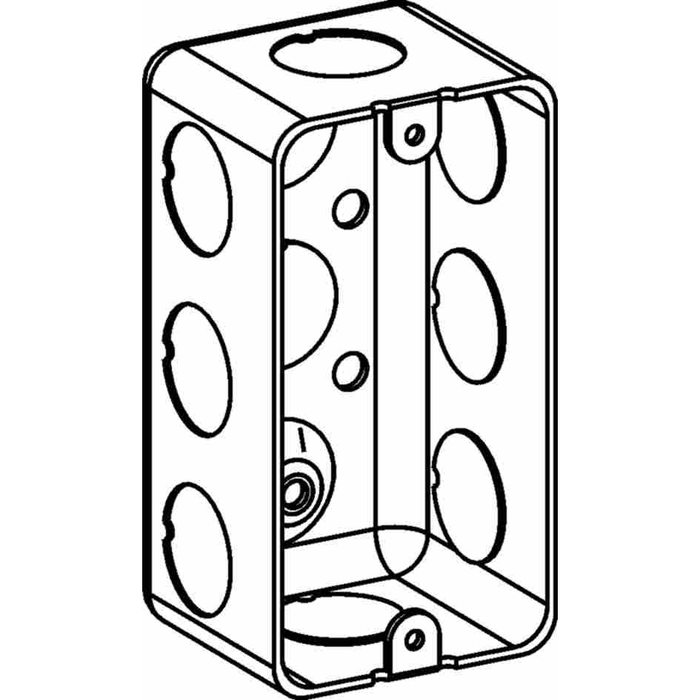

Orbit DHB-1-50 1-Gang Drawn Steel Handy Box, 1-7/8" Deep with 1/2" KO, Pack of 100

Orbit DHB-1-50 1-Gang Drawn Steel Handy Box, 1-7/8" Deep with 1/2" KO, Pack of 100

(No reviews yet) Write a Review

Model: DHB-1-50

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,106.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Orbit DHB-1-50 1-Gang Drawn Steel Handy Box, 1-7/8" Deep with 1/2" KO

The Orbit DHB-1-50 is a 1-gang drawn handy box designed for surface-mounted electrical installations where a compact, rugged enclosure is required. This unit measures 1-7/8" deep and is fitted with a 1/2" knockout (KO) for straightforward conduit or cable entry. As a drawn steel outlet box, it provides a seamless, one-piece body construction that offers strength and durability for mounting switches, receptacles, and other wiring devices in residential, commercial, and light industrial applications.

Key Features

  • Box Depth: 1-7/8" deep body provides ample interior volume for wiring devices, splices, and conductors while maintaining a low-profile surface-mount footprint.
  • 1-Gang Configuration: Sized to accept a single switch, receptacle, or wiring device for standard single-device installations.
  • Knockout Entry: Includes a 1/2" KO (knockout) for quick, clean conduit or cable connection without the need for additional drilling or hole preparation.
  • Drawn Steel Construction: Manufactured as a drawn (one-piece, seamless) steel box, offering a durable, rugged enclosure well suited to demanding jobsite conditions.
  • Surface Mount Design: The handy box format is intended for exposed/surface wiring applications, commonly used with conduit runs on garages, workshops, basements, and utility areas.

Technical Specifications

  • Product Type: Handy Box (Outlet Box)
  • Configuration: 1-Gang
  • Depth: 1-7/8"
  • Knockout Size: 1/2" KO
  • Material: Drawn Steel

Typical Applications

  • Surface-Mounted Switch and Receptacle Installations
  • Exposed Conduit Wiring Runs
  • Garage, Workshop, and Basement Electrical Work
  • Residential and Light Commercial Wiring Projects
  • New Construction and Retrofit/Renovation Work

Why Orbit?

Orbit's drawn steel handy boxes are built as one-piece, seamless enclosures for added strength and reliability in everyday electrical installations. The DHB-1-50's 1-gang, 1-7/8" deep design with a 1/2" KO makes it a practical, code-friendly choice for electricians and contractors needing a dependable surface-mount box for standard device installations.

Manufacturer Resources

Product Specs

list_batch:
ORB-20260924
Product Type:
Switch Box
Configuration:
1-Gang
Department:
Electrical
Product Subgroup:
Electrical Boxes
Product Material:
Drawn Steel
Product Size:
1-7/8"
Pack size (unit):
100
Product Group:
Boxes & Enclosures

Orbit DHB-1-50 – Frequently Asked Questions

1) How many boxes come in an Orbit DHB-1-50 order?
The DHB-1-50 ships 100 boxes per pack. That is a contractor/MRO quantity, so it suits stocking a van, a facility crib, or wiring out a full conduit run rather than a one-off device change.
2) Is the Orbit DHB-1-50 handy box deep enough for a receptacle plus wire nuts?
The body is 1-7/8 inches deep, which is the standard deep handy box dimension. It holds one switch or receptacle with conductors and splices behind it. If you are feeding through with multiple cables and a device, step up to a 2-1/8 inch deep handy box instead, since box fill is what governs.
3) Will 1/2 inch EMT connect directly to the Orbit DHB-1-50?
Yes. The box is fitted with a 1/2 inch knockout, which accepts a standard 1/2 inch EMT or flex connector, or a 1/2 inch cable clamp connector. Trade sizes above 1/2 inch will not fit that opening.
4) Can I use the DHB-1-50 handy box for exposed conduit work in a garage or shop?
That is its intended use. The handy box format is a surface-mount enclosure for exposed wiring, and it comes with a 1/2 inch knockout so you can land EMT or a cable connector straight into it without drilling. Common on garage, workshop, basement, and utility-area conduit runs.
5) What is the difference between a drawn steel handy box and a welded one?
Drawn means the body is formed from one piece of steel with no seams or welded corners. The DHB-1-50 is drawn steel, so there are no joints to split if the box takes a knock on the jobsite. Welded boxes are assembled from separate panels. For most surface wiring either works, but drawn bodies hold up better to rough handling.
6) Does the Orbit DHB-1-50 handy box come with a cover?
No cover is included. Handy boxes take a separate raised handy box cover sized to the device you are installing, so order the matching single-receptacle, duplex, toggle switch, or blank handy box cover alongside it.
7) Can I gang two DHB-1-50 boxes together for a two-device setup?
No. This is a 1-gang drawn handy box with a seamless one-piece body, so it has no removable side to gang. For two devices on a surface run, use a 2-gang surface box or a 4-11/16 square box with a two-device raised cover.
8) Is a handy box the right choice, or should I use a 4 inch square box?
A handy box like the DHB-1-50 is the compact pick when you are mounting a single switch or receptacle on a wall or conduit run and want a low-profile footprint. A 4 inch square box gives you more cubic inches and more knockout entries, so it is the better call when several conduits converge or you are splicing multiple circuits. For one device and one 1/2 inch entry, the handy box is less bulky.
