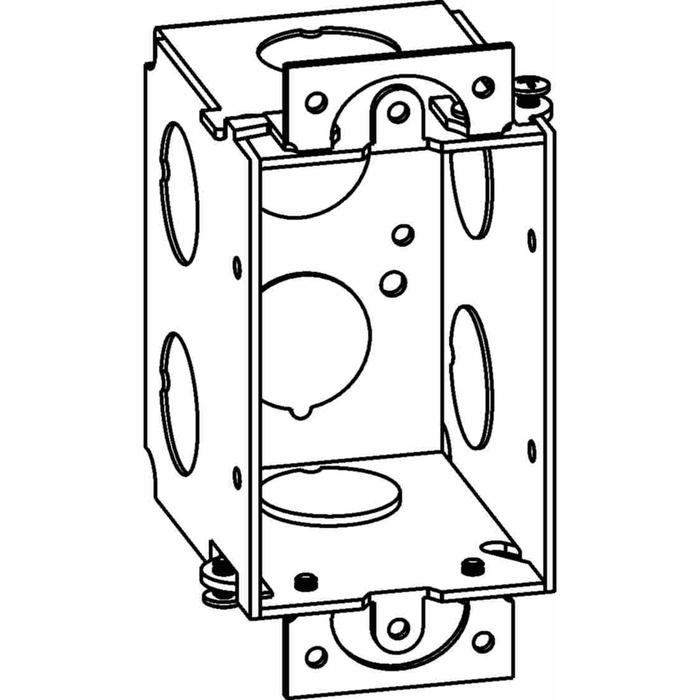

Orbit GB-1 Gangable 1-Gang Switch Box, 2-1/2" Deep with Ears

The Orbit GB-1 is a 2-1/2" deep, gangable 1-gang switch box designed for standard residential and commercial wiring device installations. Supplied with mounting ears, this box is built to accept switches, receptacles, and other wiring devices while offering a 1/2" knockout for conduit or cable entry. Its gangable design allows multiple boxes to be joined side-by-side to form multi-device assemblies, giving electricians and installers flexibility on the job without needing to stock separate multi-gang box sizes. This configuration makes the GB-1 a practical, code-friendly choice for new construction and remodel wiring projects alike.

Key Features

  • Depth: 2-1/2" deep body provides ample interior volume for wiring devices, splices, and conductor fill.
  • Gangable Design: Side plates can be removed so multiple boxes join together to create 2-gang, 3-gang, or larger assemblies as needed on-site.
  • 1-Gang Configuration: Sized to accept a single switch, receptacle, or wiring device out of the box.
  • Mounting Ears Included: Integrated ears allow the box to be secured directly to a wall surface or stud for straightforward installation.
  • Knockout: Includes a 1/2" knockout opening for conduit or cable connection.
  • Versatile Application: Suitable for use as a standalone 1-gang box or combined with additional gangable boxes for multi-device installations.

Technical Specifications

  • Product Type: Gangable 1-Gang Switch Box
  • Depth: 2-1/2"
  • Knockout Size: 1/2"
  • Configuration: Gangable, 1-Gang
  • Mounting: Ears Included

Typical Applications

  • Residential Switch and Receptacle Installations
  • Commercial Wiring Device Boxes
  • New Construction Electrical Rough-In
  • Remodel and Retrofit Wiring Projects
  • Multi-Gang Device Assemblies Using Additional Gangable Boxes

Why Orbit?

Orbit's GB-1 gangable switch box is built to give electrical contractors and installers a flexible, dependable enclosure for wiring devices. The 2-1/2" deep body, included mounting ears, and gangable side plates make it a straightforward solution for both single-device and multi-device installations, helping crews standardize their rough-in material while keeping installation simple and efficient.

Manufacturer Resources

Product Specs

list_batch:
ORB-20260924
Product Type:
Switch Box
Configuration:
Gangable 1-Gang
Department:
Electrical
Product Subgroup:
Electrical Boxes
Product Size:
2-1/2"
Pack size (unit):
100
Product Group:
Boxes & Enclosures

Orbit GB-1 – Frequently Asked Questions

1) Can the Orbit GB-1 switch box be ganged together to make a 2-gang or 3-gang box?
Yes. The GB-1 has removable side plates, so you can join boxes side by side to build 2-gang, 3-gang or larger assemblies right on the job. That means one carton of 1-gang boxes covers single-device and multi-device rough-in instead of stocking separate multi-gang sizes.
2) How deep is the Orbit GB-1 box, and will it give me enough volume for a device plus splices?
The GB-1 body is 2-1/2 inches deep, which is the deeper of the common switch box depths and leaves room for a wiring device along with the conductors and splices behind it. Depth is the number to check against your stud and finish wall build-up before rough-in.
3) What is the closest equivalent to the Orbit GB-1 gangable switch box from another brand?
The Steel City LXWOWC-25 Adjust-A-Box is the nearest match in configuration: it is also a 1-gang gangable switch box, built in pre-galvanized steel. The Orbit GB-1 is a 2-1/2 inch deep gangable 1-gang box supplied with mounting ears and a 1/2 inch knockout. Both can be ganged side by side for multi-device assemblies, so either suits a rough-in where the device count may change at the wall.
4) I need a 4-gang box in one piece instead of ganging boxes together. What should I use?
Use the Allied Moulded 4304-NK, which is a one-piece 4-gang switch box molded in fiberglass reinforced thermoset polyester. The Orbit GB-1 gets to four gangs only by removing side plates and joining four separate 1-gang boxes, so the 4304-NK is the choice when you want a single enclosure set in one operation rather than a field-built assembly.
5) Does the Orbit GB-1 come with mounting ears, or do I need a bracket?
Mounting ears are integral to the GB-1, so the box fastens directly to a stud or wall surface without a separate bracket or box hanger. If your layout needs a bar hanger between studs, that is a separate item.
6) What size knockout does the Orbit GB-1 switch box have for conduit or cable?
It has a 1/2 inch knockout, which matches 1/2 inch trade size conduit fittings and standard NM cable connectors. Size your connectors to 1/2 inch trade size when you order.
7) How many Orbit GB-1 boxes come in a box, and is it sold individually?
The GB-1 ships 100 boxes to the pack, which is how electrical contractors buy rough-in boxes. Plan quantities in multiples of 100.
8) Should I use a gangable metal switch box or a one-piece non-metallic box?
A gangable box like the Orbit GB-1 is the choice when you want one SKU to cover 1-gang through multi-gang work, since the side plates come off and the boxes join on site. If you would rather set a fixed multi-gang enclosure in one piece, a non-metallic option like the Allied Moulded 4304-NK fiberglass reinforced thermoset polyester 4-gang box covers that, and the Allied Moulded FlexBox Series thermoplastic switch box is the thermoplastic alternative. One-piece boxes cannot be ganged; you pick the gang count at the order.
9) Which 1-gang box should I pick if I need to adjust the box position after the wall is up?
The Steel City LXWOWC-25 is the Adjust-A-Box design, a 1-gang gangable box intended for that kind of adjustment. The Orbit GB-1 is a fixed-depth 2-1/2 inch gangable 1-gang box set in place with its included mounting ears, so it is the straightforward pick when the finished wall thickness is known at rough-in.
10) Is there a nonmetallic alternative to the Orbit GB-1 switch box?
Yes. The Allied Moulded FlexBox series P478414 is a thermoplastic switch box, and the Allied Moulded 4304-NK is molded from fiberglass reinforced thermoset polyester. Both are nonmetallic bodies, which is the route to take where you do not want a metal enclosure. The Orbit GB-1 is a gangable 1-gang box with 2-1/2 inch depth, mounting ears, and a 1/2 inch knockout for conduit or cable entry.
11) Can the Allied Moulded FlexBox P478414 be ganged with an Orbit GB-1?
No. The GB-1 gangs only with other gangable steel boxes of the same design, where the side plates are removed and the boxes join to form a 2-gang, 3-gang, or larger assembly. The Allied Moulded P478414 is a FlexBox series thermoplastic switch box and is not part of that gangable assembly, so treat it as a separate box choice rather than a companion to the GB-1.
12) Will the Orbit GB-1 accept a standard switch or receptacle for a remodel job?
Yes, the GB-1 is sized for a single standard wiring device, switch or receptacle, and it is used for both new construction rough-in and remodel or retrofit wiring. Order the part as GB-1.
