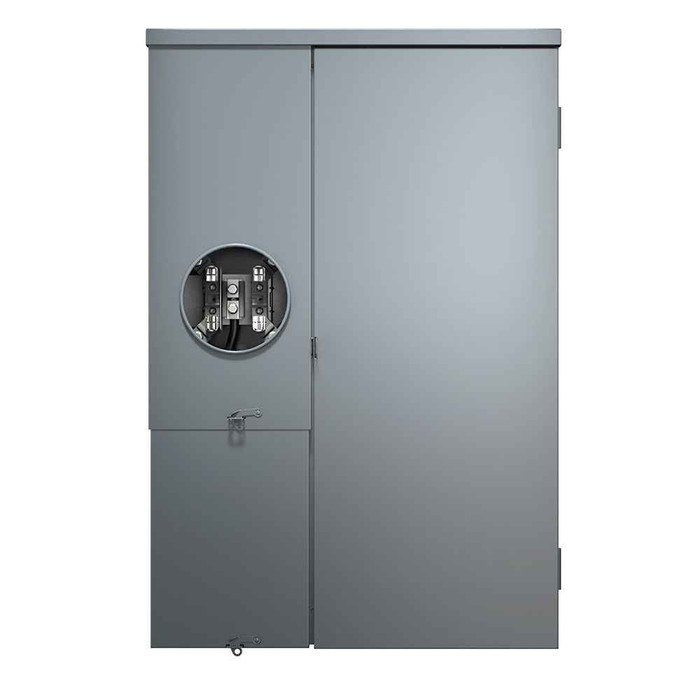

Outdoor Load Center Meter Combo Ring Type, NEMA 3R with Main Breaker, 200A 30 Spaces, 22KA Interrupt Rating, Enclosure and Door. EUSERC Approved.
Manufacturer Resources
Product Specs
- Busbar Material:
- Copper, Bright Tin-Plated
- Enclosure Material:
- Galvanized Steel, Gray Baked Enamel
- Ground Connection:
- 4 AWG - 2/0 AWG Cu/Al
- Nema Enclosure Type:
- NEMA 3R Outdoor
- Operating Temperature:
- -40°C to 85°C
- Short Circuit Current Rating:
- 22 KA
- Spaces Circuits:
- 30 / 30
- Supply Connections:
- 6 AWG – 350 MCM
- Type Of Load Center:
- Meter Load Center Combination (All-in-One)
- Ul 50:
- Yes
- Ul 50e:
- Yes
- Ul 67:
- Yes
- Ul 869a:
- Yes
- Product Group:
- Wiring Devices
- Department:
- Electrical
- Product Subgroup:
- Combination Devices
- Amperage:
- 200 A
- Color:
- Gray
- Dimensions:
- 37.25" H x 25" W x 5.2" D
- Voltage:
- 120/240 VAC
- Weight:
- 88 lbs
