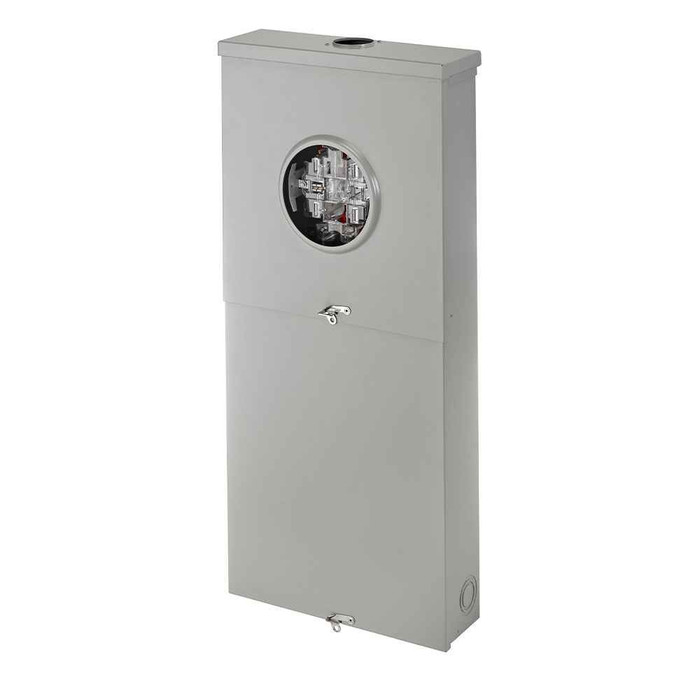

Leviton LP815-5MC Outdoor Load Center Meter Combo Ringless Lever Bypass with 5th Jaw, NEMA 3R with Main Breaker and Feed-Thru Lugs. 150A 8 Spaces. 22KA Interrupt Rating, Enclosure and Door. Meter Equipment Group (MEG) Approved.

Leviton LP815-5MC 150A NEMA 3R Outdoor Meter Main Load Center, 8-Space Ringless Combo

(No reviews yet) Write a Review

Model: LP815-5MC
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$940.51
$7.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton LP815-5MC 150A NEMA 3R Outdoor Meter Main Load Center, 8-Space Ringless Combo

The Leviton LP815-5MC is an outdoor ringless load center meter combo with lever bypass and 5th jaw, rated 150A with 8 spaces. Housed in a NEMA 3R enclosure and door, it includes a main breaker, feed-thru lugs, and a 22KA interrupt rating at 120/240 VAC. It is Meter Equipment Group (MEG) approved for utility metering compatibility.

Key Features

  • Amperage & Spaces: 150A rating with 8 spaces for circuit breakers, sized for residential and light commercial service entrances.
  • Durable Construction: Galvanized steel enclosure and door finished in gray baked enamel for corrosion resistance in outdoor environments.
  • Ringless Lever Bypass with 5th Jaw: Keeps utility metering active during service work, paired with a main breaker and feed-thru lugs for downstream distribution.
  • 22KA Interrupt Rating: Short circuit current rating of 22KA supports demanding fault-current conditions at 120/240 VAC.
  • NEMA 3R Outdoor Enclosure: Enclosure and door rated NEMA 3R for outdoor and wet-location installation.
  • Copper Busbar: Bright tin-plated copper busbar delivers reliable, low-resistance connections.
  • Wide Conductor Range: Accepts 6 AWG – 350 MCM supply connections and 4 AWG – 2/0 AWG Cu/Al ground connections.
  • Operating Temperature: Rated for 0°C to 40°C ambient operation.

Certifications & Compliance

  • UL 50 Listed
  • UL 50E Listed
  • UL 67 Listed
  • UL 869A Listed
  • Meter Equipment Group (MEG) Approved

Technical Specifications

  • Busbar Material: Copper, Bright Tin-Plated
  • Enclosure Material: Galvanized Steel, Gray Baked Enamel
  • Ground Connection: 4 AWG - 2/0 AWG Cu/Al
  • Nema Enclosure Type: NEMA 3R Outdoor
  • Operating Temperature: 0°C to 40°C
  • Short Circuit Current Rating: 22 KA
  • Spaces Circuits: 8-Aug
  • Supply Connections: 6 AWG – 350 MCM
  • Type Of Load Center: Meter Main
  • Ul 50: Yes
  • Ul 50e: Yes
  • Ul 67: Yes
  • Ul 869a: Yes
  • Amperage Rating: 150 A
  • Product Voltage: 120/240 VAC
  • Product Dimension: 36" H x 16.6" W x 5.2" D
  • Product Weight: 56.8 lbs
  • Product Color: Grey

Typical Applications

  • Residential and Light Commercial Service Entrances
  • Utility Metering Combo Installations
  • Outdoor and Wet-Location Electrical Service Equipment
  • New Construction and Service Upgrades
  • Panelboard and Meter Combo Replacement

Why Leviton?

Leviton builds the LP815-5MC with a galvanized steel enclosure, tin-plated copper busbar, and a 22KA interrupt rating for demanding outdoor service. Backed by UL 50, UL 50E, UL 67, and UL 869A listings plus MEG approval, it delivers dependable, code-compliant performance for professional installations.

Manufacturer Resources

Technical Information

Product Specs

Busbar Material:
Copper, Bright Tin-Plated
Enclosure Material:
Galvanized Steel, Gray Baked Enamel
Ground Connection:
4 AWG - 2/0 AWG Cu/Al
Nema Enclosure Type:
NEMA 3R Outdoor
Operating Temperature:
0°C to 40°C
Short Circuit Current Rating:
22 KA
Spaces Circuits:
8-Aug
Supply Connections:
6 AWG – 350 MCM
Type Of Load Center:
Meter Main
Ul 50:
Yes
Ul 50e:
Yes
Ul 67:
Yes
Ul 869a:
Yes
Product Group:
Wiring Devices
Department:
Electrical
Product Subgroup:
Combination Devices
Amperage Rating:
150 A
Product Voltage:
120/240 VAC
Product Dimension:
36" H x 16.6" W x 5.2" D
Product Weight:
56.8 lbs
Product Color:
Grey
Product Type:
Load Center
