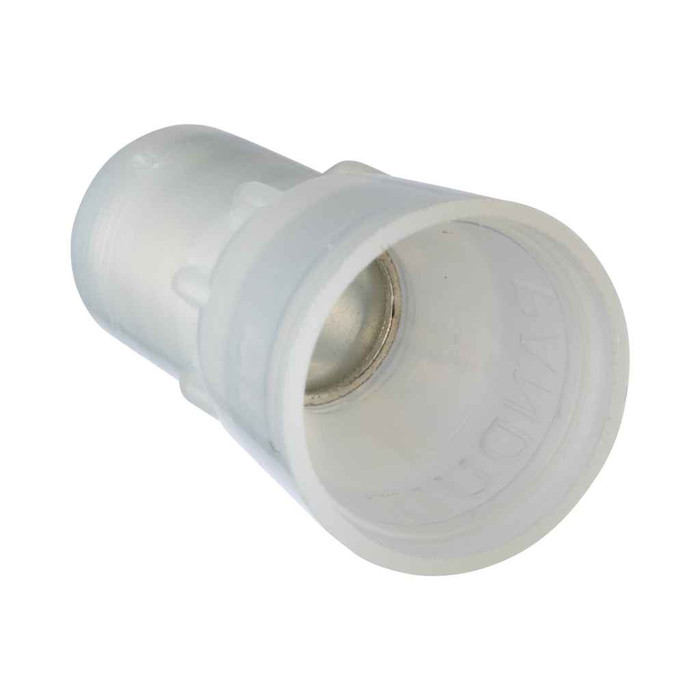

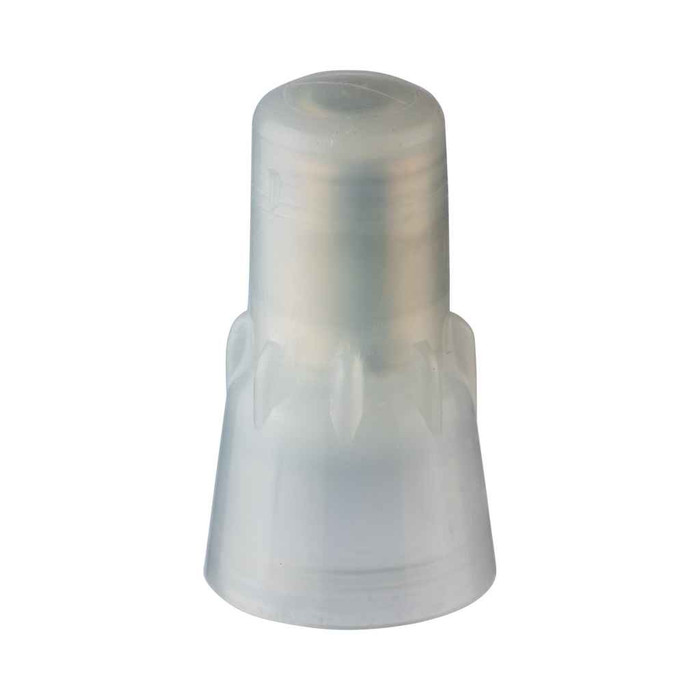

Panduit JN314-412-C Pan-Term® JN314-412-C Wire Joint, Nylon, 8-16 AWG, PK100

Panduit JN314-412-C Wire Joint Connector, 8-16 AWG Nylon Insulated

(No reviews yet) Write a Review

Model: JN314-412-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.57
$1.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit JN314-412-C Wire Joint Connector, 8-16 AWG Nylon Insulated

The Panduit JN314-412-C Pan-Term wire joint connector splices 8-16 AWG solid or stranded copper conductors in a single nylon-insulated body. Tin-plated brass construction delivers reliable conductivity and corrosion resistance, backed by a 600V maximum voltage rating and a 105°C (221°F) maximum operating temperature for demanding commercial, industrial, and residential wiring. Sold in a 100-piece package for high-volume splicing work.

Key Features

  • Wire Range: Accepts 8-16 AWG solid or stranded copper conductors for common branch-circuit and control-wiring sizes.
  • Tin-Plated Brass: Strong conductivity and long-term corrosion resistance.
  • Nylon Insulation: Durable electrical isolation and everyday protection.
  • 600V Maximum Voltage: Suitable for standard low-voltage distribution systems.
  • 105°C Maximum Operating Temperature: Performance integrity up to 221°F.
  • 100-Piece Package: Bulk quantity for multi-splice jobs.

Certifications & Compliance

  • RoHS Compliant

Technical Specifications

  • Any Reason Not To Sell: N
  • Arra Compliant: Y
  • California Pro65 Cancer: No
  • Hazardous Material Flag: N
  • Inside Diameter Mm : 5.6
  • Lead Content Indicator: N
  • Maximum Copper Conductor Size Awg Sol : 8
  • Maximum Copper Conductor Size Awg Str : 8
  • Maximum Metric Conductor Size Mm : 10
  • Maximum Operating Temperature C : 105
  • Maximum Operating Temperature F : 221
  • Maximum Voltage Kv : 0.6
  • Maximum Voltage V : 600
  • Mercury Content Indicator: N
  • Min Order Qty: 100
  • Minimum Copper Conductor Size Awg Sol : 16
  • Minimum Copper Conductor Size Awg Str : 16
  • Minimum Metric Conductor Size Mm : 1.5
  • Packaging Type: Bag
  • Pallet Volume: 0
  • Product Segment: IEI
  • Reach Status: N
  • Restricted Use Of Hazardous Substances: N
  • Standard Carton Volume Ft3: 0
  • Standard Carton Weight Pounds: 0
  • Std Ctn Qty: 0
  • Std Package Height In: 1.4
  • Std Package Length In: 6.7
  • Std Package Width In: 5
  • Std Package Width Mm: 127
  • Std Pkg Qty : 100
  • Sub Brand: Pan-Term®
  • Uom Ea Pk: PK

Typical Applications

  • Residential Electrical Systems
  • Commercial Building Wiring
  • Industrial Control Panels
  • Equipment Interconnections
  • Wire Harness Assembly

Why Panduit?

Panduit Pan-Term connectors pair tin-plated brass conductivity with durable nylon insulation and a 600V, 105°C rating for dependable, code-compliant splices. RoHS-compliant construction gives contractors and maintenance teams a trusted 100-piece solution for long-term connection reliability.

Manufacturer Resources

Product Specs

Any Reason Not To Sell:
N
Arra Compliant:
Y
Base Material:
Brass
California Pro65 Cancer:
No
Color Code:
Clear
Copper Conductor Size Awg:
16-8
Country Of Origin:
Mexico
Ean:
74983840045
Finish Coating:
Tin-Plated
For Use With:
CT-100, CT-160, CT-260
Gtin Carton:
5.0075E+13
Gtin Package:
74983840045
Hazardous Material Flag:
N
Inside Diameter In:
0.22
Inside Diameter Mm:
5.6
Insulation Material:
Nylon
Lead Content Indicator:
N
Maximum Copper Conductor Size Awg Sol:
8
Maximum Copper Conductor Size Awg Str:
8
Maximum Metric Conductor Size Mm:
10
Maximum Operating Temperature C:
105
Maximum Operating Temperature F:
221
Maximum Voltage Kv:
0.6
Maximum Voltage V:
600
Mercury Content Indicator:
N
Min Order Qty:
100
Min Order Uom:
Piece
Minimum Copper Conductor Size Awg Sol:
16
Minimum Copper Conductor Size Awg Str:
16
Minimum Metric Conductor Size Mm:
1.5
Overall Length In:
0.97
Overall Length Mm:
24.6
Packaging Type:
Bag
Pallet Quantity:
162,000
Pallet Volume:
0
Pallet Weight:
858.6
Product Segment:
IEI
Product Type:
Wire Joint
Reach Status:
N
Restricted Use Of Hazardous Substances:
N
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
0
Standard Carton Weight Pounds:
0
Standard Package Volume Ft3:
0.2535
Standard Package Weight Pounds:
0.53
Std Ctn Qty:
0
Std Package Height In:
1.4
Std Package Height Mm:
35.56
Std Package Length In:
6.7
Std Package Length Mm:
170.18
Std Package Width In:
5
Std Package Width Mm:
127
Std Pkg Qty:
100
Std Pkg Uom:
Piece
Sub Brand:
Pan-Term®
Uom Ea Pk:
PK
Wire Strip Length In:
8-May
Wire Strip Length Mm:
15.9
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Conduit Fittings

Panduit JN314-412-C – Frequently Asked Questions

1) What wire sizes does the Panduit JN314-412-C wire joint accept?
The JN314-412-C Pan-Term wire joint takes 16 through 8 AWG copper, solid or stranded, so one part number covers most branch circuit and control wiring you'd splice in a panel or junction box. In metric terms that's 1.5 to 10 mm conductors. The barrel inside diameter is 0.22 inch (5.6 mm), which is what sets the upper limit, so don't try to force a conductor larger than 8 AWG into it.
2) What crimp tool do I need for the Panduit JN314-412-C butt splice?
Panduit lists the JN314-412-C for use with the CT-100, CT-160 and CT-260 crimp tools. No tool ships with the connectors, so if your crew doesn't already carry one of those, order it alongside the splices. The splices come as bare parts in a bag.
3) How much insulation do I strip before crimping a Panduit JN314 wire joint?
Strip length for the JN314-412-C is 15.9 mm of bare conductor per wire end. The connector is 0.97 inch (24.6 mm) long overall, so the stripped copper runs the full depth of the barrel from each side and meets in the middle. Strip short and you crimp on insulation; strip long and bare copper sticks out past the nylon sleeve.
4) Can I use this Panduit wire joint on 480V equipment wiring?
No. The JN314-412-C is rated to 600V maximum, which covers 120/208, 277/480 wye and typical control circuits, but nothing above 600V. Temperature ceiling is 105 C (221 F), so it also suits conductors with 90 C insulation running in warm panel or fixture environments.
5) What is the JN314-412-C made of, and will it hold up in a damp or corrosive location?
The barrel is brass with a tin plating, and the sleeve over it is nylon rather than vinyl. Tin plating is the reason it handles humid and corrosive environments better than bare brass, and nylon takes abrasion and heat better than PVC insulation. The body is clear, so you can eyeball whether both conductors bottomed out in the barrel before you crimp.
6) How many Panduit JN314-412-C splices come in a pack?
They ship 100 pieces to a bag, and 100 pieces is also the minimum order quantity, so one bag is the smallest buy. The bagged 100 weighs 0.53 pounds and the package measures 6.7 x 5 x 1.4 inches, which matters if you're stocking a van bin or a shop shelf.
7) Does the Panduit JN314-412-C meet RoHS and Buy American style procurement requirements?
It is RoHS compliant and flagged ARRA compliant, with no lead or mercury content and no California Prop 65 cancer warning. Country of origin is Mexico. Those are the boxes an institutional or government procurement package usually wants checked before a splice connector gets on an approved list.
8) Should I use a crimped butt splice like this or a twist-on wire nut?
A crimped nylon butt splice such as the Panduit JN314-412-C makes an inline, permanent joint between two conductor ends and stays put under vibration, which is why it shows up in control panels, harnesses and equipment interconnects. A twist-on connector is faster, reusable and better when you're joining three or more conductors in a box. Pick the crimp when the splice is inline, needs a low profile, or lives somewhere it will be shaken; it does require the matching CT-100, CT-160 or CT-260 tool.
