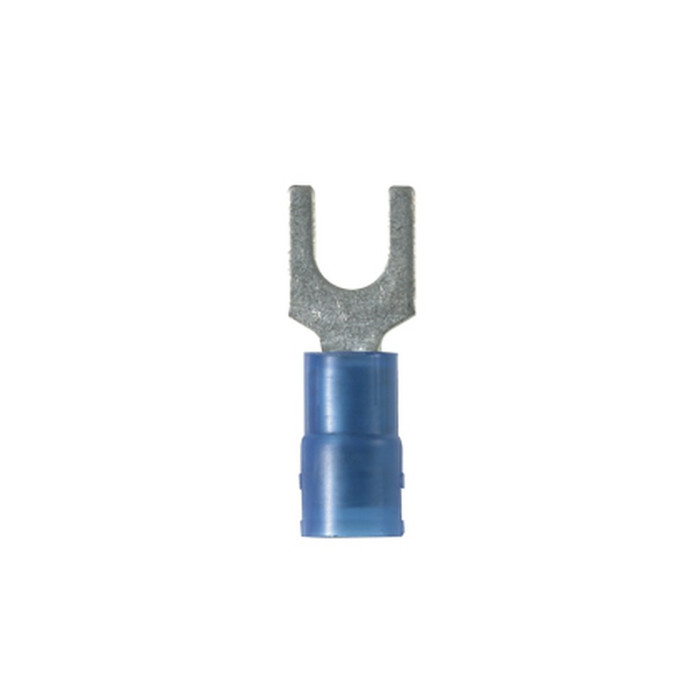

Fork Terminal, nylon insulated, funnel entry, 16- 14 AWG, #8 stud size, bulk package.
Standards and Certifications
- Standards Met: UL Listed 587H E52164; CSA Certified LR31212
Prop 65
- No
Specifications
| Barrel Length (In.) | 0.34 |
| Standard Package Volume Ft3 | 0.5261 |
| Outer Diameter (In.) | 0.16 |
| Maximum Operating Temperature (°F) | 221 |
| Standard Package Weight Pounds | 2.4000 |
| Std. Pkg. UOM | Piece |
| Maximum Voltage (V) | 600 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Length (mm) | 13.1 |
| Standard Carton Volume Ft3 | 0.0000 |
| Color Code | Blue |
| Mercury Content Indicator | N |
| Std Package Length MM | 198.12 |
| Sub Brand | Pan-Term® |
| Wire Strip Length (In.) | 5/16 |
| Stud Hole Size (mm) | 4 |
| Tongue Thickness (mm) | 0.8 |
| Product Segment | IEI |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Inside Diameter (In.) | 0.08 |
| Standard Carton Weight Pounds | 0.0000 |
| Min Order Qty | 1,000.0000 |
| GTIN Package | 00074983810420 |
| Wire Size | 16-14 AWG |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| UOM EA PK | PK |
| Barrel Length (mm) | 8.8 |
| Pallet Volume | 0.000000 |
| Std Package Width In | 4.3 |
| Any Reason Not to Sell | N |
| Barrel Type | Funnel Entry |
| Tongue Width (In.) | 0.31 |
| Copper Conductor Size | 16-14 AWG |
| Overall Width (In.) | 0.31 |
| REACH Status | N |
| Base Material | Copper |
| Overall Width (mm) | 7.9 |
| California Pro65 Cancer | No |
| Std Package Length In | 7.8 |
Packaging: 1000 Piece
Documents
Manufacturer Resources
Product Specs
- Barrel Length (In.):
- 0.34
- Standard Package Volume Ft3:
- 0.5261
- Outer Diameter (In.):
- 0.16
- Maximum Operating Temperature (°F):
- 221
- Standard Package Weight Pounds:
- 2.4000
- Std. Pkg. UOM:
- Piece
- Maximum Voltage (V):
- 600
- Tongue Thickness (In.):
- 0.03
- Tongue Length (mm):
- 13.1
- Standard Carton Volume Ft3:
- 0.0000
- Color Code:
- Blue
- Mercury Content Indicator:
- N
- Std Package Length MM:
- 198.12
- Sub Brand:
- Pan-Term®
- Wire Strip Length (In.):
- 5/16
- Stud Hole Size (mm):
- 4
- Tongue Thickness (mm):
- 0.8
- Product Segment:
- IEI
- Minimum Metric Conductor Size (mm²):
- 1.5
- Inside Diameter (In.):
- 0.08
- Standard Carton Weight Pounds:
- 0.0000
- Min Order Qty:
- 1,000.0000
- GTIN Package:
- 00074983810420
- Product Size:
- 16-14 AWG
- Maximum Metric Conductor Size (mm²):
- 2.5
- UOM EA PK:
- PK
- Barrel Length (mm):
- 8.8
- Pallet Volume:
- 0.000000
- Std Package Width In:
- 4.3
- Any Reason Not to Sell:
- N
- Barrel Type:
- Funnel Entry
- Tongue Width (In.):
- 0.31
- Copper Conductor Size:
- 16-14 AWG
- Overall Width (In.):
- 0.31
- REACH Status:
- N
- Base Material:
- Copper
- Overall Width (mm):
- 7.9
- California Pro65 Cancer:
- No
- Std Package Length In:
- 7.8
- Maximum Voltage (kV):
- 0.6
- Finish/Coating:
- Tin-Plated
- Overall Length (mm):
- 21.8
- Country of Origin:
- Mexico
- Outer Diameter (mm):
- 4.1
- Std Ctn Qty:
- 0
- Fork Type:
- Standard
- Stud Size:
- #8
- Seam Type:
- Butted
- Product Type:
- Terminal Kit
- Department:
- Electrical
- Product Group:
- Wiring Devices
