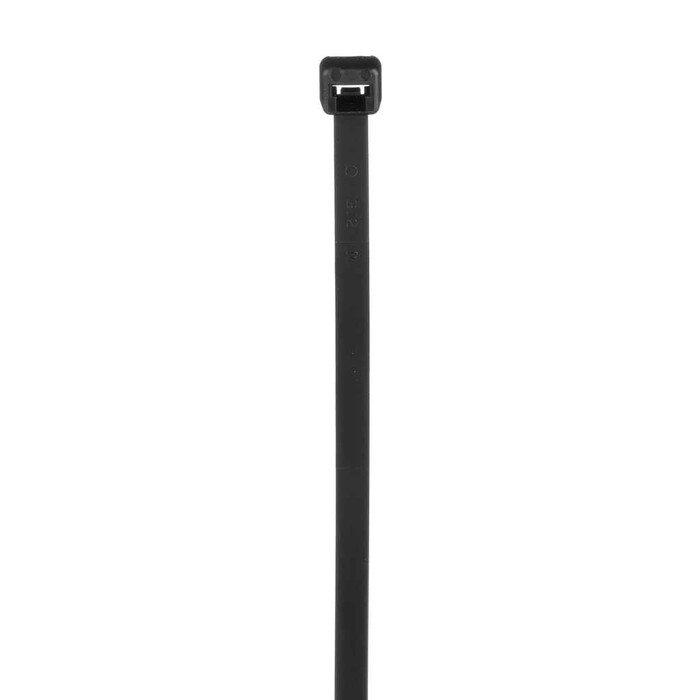

Panduit PLT3I-C0 Pan-Ty® PLT3I-C0 Cable Tie, Black, UV PA6.6, 11.4"L, 40lb, PK100

Panduit PLT3I-C0 11.4" Premium Cable Tie, UV-Resistant Nylon 6.6

(No reviews yet) Write a Review

Model: PLT3I-C0

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.66
$0.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit PLT3I-C0 11.4" Premium Cable Tie, UV-Resistant Nylon 6.6

Panduit Pan-Ty Premium Cable Ties (PLT3I-C0) are 11.4" black, UV-resistant Nylon 6.6 ties built for indoor/outdoor cable management. Rated for 40lb minimum loop tensile strength and a 0.06"-3" bundle diameter range, they operate reliably from -60°C to 85°C. CSA Certified and UL Recognized (UL 62275 Type 2, 21) construction supports code-compliant installation.

Key Features

  • 11.4" Overall Length: Accommodates bundle diameters from 0.06" up to 3" for versatile cable management.
  • UV-Resistant Nylon 6.6 Construction: Weather-resistant material delivers long-term durability in outdoor environments.
  • 40lb Tensile Strength: Minimum loop tensile strength of 40lb (178N) provides secure, reliable bundling.
  • Wide Operating Range: Performs from -60°C to 85°C (-76°F to 185°F), with a minimum installation temperature of -20°C (-4°F).
  • Indoor/Outdoor Rated: Weather-resistant construction suitable for both interior and exterior electrical installations.
  • Compact Body Profile: Body dimensions of 0.145" width and 0.052" thickness balance strength with a low-profile fit.
  • Black UV-Stable Color: Resists degradation from sunlight exposure.

Certifications & Compliance

  • CSA Certified (File #E56854)
  • UL Recognized, UL 62275 Type 2, 21
  • RoHS Compliant

Technical Specifications

  • Any Reason Not To Sell: N
  • Arra Compliant: Y
  • Body Thickness Mm: 1.3
  • Body Width Mm: 3.7
  • California Pro65 Cancer: No
  • Hazardous Material Flag: N
  • Lead Content Indicator: N
  • Maximum Bundle Diameter In: 3
  • Maximum Bundle Diameter Mm: 76
  • Maximum Operating Temperature C: 85
  • Maximum Operating Temperature F: 185
  • Mercury Content Indicator: N
  • Minimum Bundle Diameter Mm: 1.5
  • Minimum Installation Temperature C: -20
  • Minimum Installation Temperature F: -4
  • Minimum Loop Tensile Strength Lb: 40
  • Minimum Loop Tensile Strength N: 178
  • Minimum Operating Temperature C: -60
  • Minimum Operating Temperature F: -76
  • Overall Length Mm: 290
  • Reach Status: N
  • Restricted Use Of Hazardous Substances: N
  • Std Pkg Qty: 100
  • Uom Ea Pk: PK

Typical Applications

  • Electrical Panel Cable Management
  • Telecommunications Infrastructure
  • Industrial Control Systems
  • HVAC System Wiring
  • Data Center Cable Organization
  • Outdoor and Wet-Location Electrical Installations

Why Panduit?

Panduit Pan-Ty Premium Cable Ties deliver professional-grade reliability, backed by CSA Certified and UL Recognized construction for code-compliant installations. UV-resistant Nylon 6.6 material and 40lb tensile strength ensure long-term performance across a wide temperature range, while RoHS compliance supports sustainable installation practices.

Manufacturer Resources

Product Specs

Any Reason Not To Sell:
N
Arra Compliant:
Y
Body Thickness In :
0.052
Body Thickness Mm :
1.3
Body Width In :
0.145
Body Width Mm :
3.7
California Pro65 Cancer:
No
Country Of Origin:
Malaysia
Ean:
74983540556
Environment:
Indoor/Outdoor
For Use With:
GTS-E, GS2B-E, PTS, PPTS, STS2
Gtin Carton:
5.0075E+13
Gtin Package:
74983540556
Hazardous Material Flag:
N
Lead Content Indicator:
N
Material Description:
Nylon 6.6 (UV-Resistant, Weather-Resistant)
Maximum Bundle Diameter In :
3
Maximum Bundle Diameter Mm :
76
Maximum Operating Temperature C :
85
Maximum Operating Temperature F :
185
Mercury Content Indicator:
N
Min Order Qty:
1,000.00
Min Order Uom:
Piece
Minimum Bundle Diameter In :
0.06
Minimum Bundle Diameter Mm :
1.5
Minimum Installation Temperature C :
-20
Minimum Installation Temperature F :
-4
Minimum Loop Tensile Strength Lb :
40
Minimum Loop Tensile Strength N :
178
Minimum Operating Temperature C :
-60
Minimum Operating Temperature F :
-76
Overall Length In :
11.4
Overall Length Mm :
290
Pallet Quantity:
96,000
Pallet Volume:
48.178667
Pallet Weight:
432
Product Color:
Black
Product Material:
Nylon 6.6
Product Segment:
IEI
Product Type:
Premium Cable Tie
Reach Status:
N
Resistance Properties:
UV-Resistant, Weather-Resistant
Restricted Use Of Hazardous Substances:
N
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
0.5019
Standard Carton Weight Pounds:
4.5
Standard Package Volume Ft3:
0.0502
Standard Package Weight Pounds:
0.45
Std Carton Height In:
6.1
Std Carton Height Mm:
154.94
Std Carton Length In:
16.6
Std Carton Length Mm:
421.64
Std Carton Width In:
8.85
Std Carton Width Mm:
224.79
Std Ctn Qty:
1000
Std Package Height In:
1.25
Std Package Height Mm:
31.75
Std Package Length In:
13.1
Std Package Length Mm:
332.74
Std Package Width In:
4.55
Std Package Width Mm:
115.57
Std Pkg Qty :
100
Std Pkg Uom:
Piece
Uom Ea Pk:
PK
Department:
Electrical
Product Group:
Wiring Devices

Panduit PLT3I-C0 – Frequently Asked Questions

1) What bundle diameter will a Panduit PLT3I-C0 cable tie actually close around?
The PLT3I-C0 handles bundles from 0.06 in (1.5 mm) up to 3 in (76 mm) diameter, off an 11.4 in (290 mm) overall length. That covers everything from a single control conductor to a full feeder bundle in a panel. If your bundle runs past 3 inches you need a longer tie, not this one.
2) Can I use these Panduit ties outdoors in direct sun?
Yes. The PLT3I-C0 is black UV-resistant, weather-resistant Nylon 6.6 and is rated indoor/outdoor. The black UV-stabilized compound is what makes it suitable for exposed runs; a natural-color nylon tie in the same size is indoor-only and will chalk and fail in sunlight.
3) Will these cable ties hold up in a freezer room or on a rooftop in winter?
Operating range is -60 C to 85 C (-76 F to 185 F), so a cold room or rooftop is fine once installed. The catch is installation temperature: do not install below -20 C (-4 F). Nylon gets brittle in the cold, and a tie cinched below that point can crack at the head. Bring the ties up to temperature before pulling them tight on a cold job.
4) Do these Panduit ties meet code and procurement compliance requirements for a government or institutional job?
The PLT3I-C0 is CSA Certified under file E56854 and UL Recognized to UL 62275 Type 2, 21. It is also RoHS compliant and flagged ARRA compliant, which is what a federal or public-agency spec usually asks for. Country of origin is Malaysia.
5) Is 40 lb tensile enough for a cable tie in an electrical panel?
For panel and control wiring, yes. The PLT3I-C0 carries a 40 lb (178 N) minimum loop tensile strength, which is the standard intermediate class used for bundling branch circuit, control, and comm cable inside enclosures and along cable tray. Where you are supporting weight rather than just dressing a bundle, step up to a heavy or extra-heavy duty tie.
6) Which Panduit tie tools work with the PLT3I-C0?
The PLT3I-C0 is specified for use with the Panduit GTS-E, GS2B-E, PTS, PPTS, and STS2 tools. Those tension and cut the tie flush in one action, which matters on a panel build where a hand-cut tail leaves a sharp edge against conductor insulation.
7) How many Panduit PLT3I-C0 ties come in a pack, and what is the minimum order?
Standard package is 100 pieces, and the standard carton holds 1,000. Minimum order quantity is 1,000 pieces, so this is bought by the carton rather than the bag.
8) Will an 11.4 inch cable tie fit through a narrow wire duct slot or a tight mounting clip?
Body cross section on the PLT3I-C0 is 0.145 in (3.7 mm) wide by 0.052 in (1.3 mm) thick. That is a low-profile strap that passes through standard duct fingers and through the tie slots on most mounting bases and clips without binding.
9) What does a carton of Panduit PLT3I-C0 ties weigh and how much space does it take on a truck or shelf?
A 1,000-piece carton weighs 4.5 lb and measures 16.6 x 8.85 x 6.1 in, about 0.5019 cubic feet. Each 100-piece bag is 0.45 lb. A full pallet runs 96,000 pieces at 432 lb, useful if you are stocking a warehouse or planning a large MRO buy.
