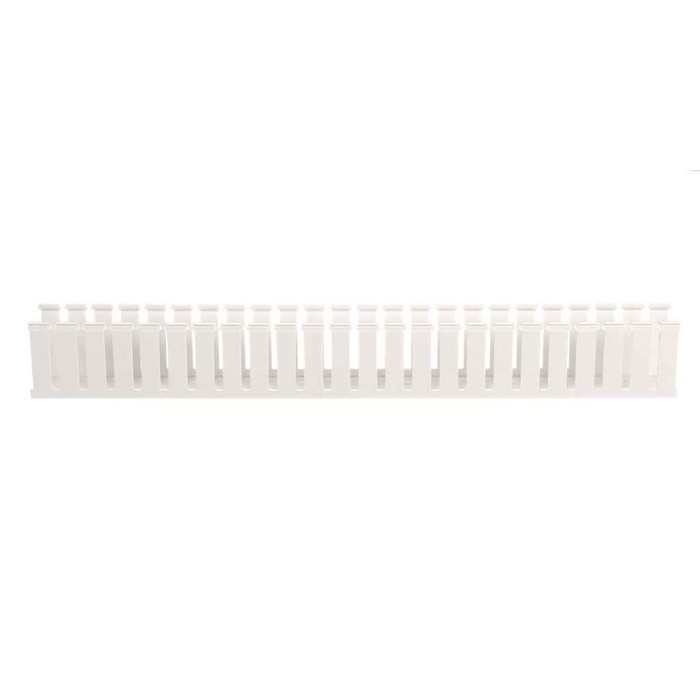

Panduit Panduct G2X3WH6 Wide Slot Base Wiring Duct, 2.25" x 3.12" x 6', White PVC
The Panduit Panduct G2X3WH6 wide slot base wiring duct delivers professional cable management for commercial and industrial electrical installations. Built from durable white PVC in a 2.25" x 3.12" x 6' size, this base wiring duct features a wide slot finger design that adds greater sidewall rigidity for reliable cable organization and protection. It carries a UL94V-0 flammability rating, UL Recognized Component certification, and RoHS-compliant, lead-free construction made in the United States.
Key Features
- Trade Size: 2.25" x 3.12" x 6' dimensions for medium-capacity cable runs with a clean, professional appearance.
- Wide Slot Design: Wide slot/finger construction provides greater sidewall rigidity and versatile application compatibility for superior cable management.
- Durable Construction: White PVC, lead-free material for long-lasting performance and a professional finish.
- UL94V-0 Flammability Rating: Meets stringent fire safety standards for commercial and industrial installations.
- UL Recognized Certification: Ensures compliance with electrical safety codes and professional installation requirements.
- Mounting Hole Installation: Secure attachment method for permanent installation and reliable cable protection.
- RoHS Compliant: Environmentally responsible, lead-free construction meets international hazardous substance restriction standards.
Certifications & Compliance
- UL94V-0 Flammability Rating
- UL Recognized Component
- RoHS Compliant
Technical Specifications
- Arra Compliant: Y
- California Pro65 Cancer: No
- Hazardous Material Flag: N
- Mercury Content Indicator: N
- Min Order Qty: 60
- Overall Length Ft: 6
- Product Material: PVC
- Product Segment: IEI
- Reach Status: N
- Slot Width Mm: 7.9
- Std Carton Height In: 3.6
- Std Ctn Qty: 60
- Std Package Height In: 3
- Std Package Length In: 72
- Std Package Width In: 2
- Std Pkg Qty: 6
- Wiring Duct Type: G
Typical Applications
- Commercial Building Cable Management
- Industrial Control Panel Wiring
- Data Center Infrastructure
- Telecommunications Equipment Rooms
- Manufacturing Facility Installations
- Office Building Electrical Systems
Why Panduit?
Panduit delivers proven reliability with UL Recognized Component certification, a UL94V-0 flammability rating, and RoHS-compliant, lead-free PVC construction for professional cable management. Made in the United States, this wide slot base wiring duct provides the durability and code-compliant performance required for demanding commercial and industrial installations.
Manufacturer Resources
Spec Sheet
Product Specs
- Std Package Width In:
- 2
- Product Type:
- Wiring Duct
- Material Properties:
- Lead-Free
- Country Of Origin:
- United States
- Std Carton Height MM:
- 91.44
- California Pro65 Cancer:
- No
- Overall Width (mm):
- 57.2
- Overall Length (m):
- 1.83
- Overall Width (In.):
- 2.25
- Slot Width In:
- 0.31
- Std Carton Length In:
- 72.9
- Std Carton Length MM:
- 1851.66
- Std Ctn Qty:
- 60
- Std Package Width MM:
- 50.8
- Std. Pkg. UOM:
- Foot
- Standard Package Volume Ft3:
- 0.2035
- Department:
- Electrical
- Standard Carton Weight Pounds:
- 24.3
- Mercury Content Indicator:
- N
- Std Carton Height In:
- 3.6
- Overall Height (In.):
- 3.12
- Standard Package Weight Pounds:
- 2.43
- Pallet Volume:
- 54.94775
- Slot Width Mm:
- 7.9
- Product Group:
- Conduit & Raceway
- Hazardous Material Flag:
- N
- Pallet Quantity:
- 1,620
- Product Segment:
- IEI
- REACH Status:
- N
- Std Carton Width In:
- 13.3
- Min Order Qty:
- 60
- GTIN Carton:
- 5.0075E+13
- Std Package Length In:
- 72
- Pallet Weight:
- 656.1
- Std Package Height In:
- 3
- Wiring Duct Style:
- Wide Slot Wiring Duct
- Std Package Height MM:
- 76.2
- Wiring Duct Type:
- G
- Arra Compliant:
- Y
- Mount Method:
- Mounting Holes
- Overall Length (ft.):
- 6
- Product Material:
- PVC
- Rohs Compliant:
- Compliant
- Std Package Length MM:
- 1828.8
- Includes:
- Base Only
- Std Carton Width MM:
- 337.82
- Overall Height Mm:
- 79.2
- Flammability Rating:
- UL94V-0
- Duct Dimensions In:
- 2.25W x 3.12H
- Std. Pkg. Qty.:
- 6
- Standard Carton Volume Ft3:
- 2.0351
- Product Subgroup:
- Wireway
- Sub Brand:
- Panduct®
Panduit G2X3LG6 – Frequently Asked Questions
1) Does the Panduit G2X3 wiring duct come with a cover, or do I have to order that separately?
Base only. The G2X3 ships as the duct base, so the snap-on cover is a separate line item on your order. Plan for one 6 foot cover per 6 foot base length.
2) Is Panduit G2X3 duct acceptable for a control panel that needs a flame rating?
The G2X3 PVC duct carries a UL94V-0 flammability rating and is a UL Recognized Component, which is what panel builders and inspectors usually look for on in-enclosure wire management.
3) Does the Panduit G2X3 wiring duct meet Buy American / ARRA and RoHS requirements for a government job?
Yes on both. It is flagged ARRA compliant and made in the United States, and the PVC is RoHS compliant and lead-free. It is not flagged as hazardous material and carries no mercury content, which simplifies submittals on public work.
4) Why choose wide slot duct instead of narrow slot or solid wall duct for a control panel?
Wide slot G-type duct gives you more breakout points along the run, so you can drop wires wherever a terminal block or device lands rather than routing to a fixed exit. The wide finger design also keeps sidewall rigidity up compared with closely spaced narrow fingers. Solid wall duct is the choice when you want full enclosure and all breakouts at the ends; wide slot is the choice for panel wiring where you pull out at many points.
5) How does the G2X3 duct mount to a panel back plate?
It mounts through mounting holes in the base, so you drill and fasten (or tap the back plate) and screw the duct down. There is no adhesive back on it, which is the right approach for a permanent panel or industrial install where heat and vibration would eventually let tape go.
6) What colors does the Panduit G2X3 duct come in, and will it match my existing Panduct runs?

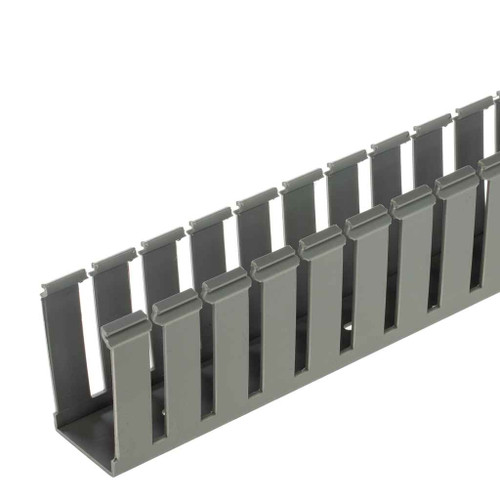

Two colors: white (G2X3WH6) and light gray (G2X3LG6). Light gray is the usual match for industrial enclosures with gray back panels; white is more common in telecom and office build-outs. Pick the one matching the ducts already on the panel so the finished work reads consistent.
7) How is Panduit G2X3 duct packaged and how much do I have to buy at once?
It ships 6 feet per package (one stick) with a standard carton of 60 feet, and the minimum order quantity is 60. A full carton runs 24.3 pounds and measures about 72.9 x 13.3 x 3.6 inches, so allow for a long box on the truck and in the stockroom. Pallet quantity is 1,620 feet.
8) Can the G2X3 duct be cut down to length on site?
Yes. It is PVC in 6 foot sticks, so it cuts with a fine-tooth saw or duct shears to whatever length the panel layout needs. Order in 6 foot multiples and figure your cut list from the 6 foot stick to limit scrap.
9) Is a Prop 65 cancer warning required for Panduit G2X3 wiring duct in California?
No. The G2X3 duct is flagged as not carrying a California Proposition 65 cancer listing, and the PVC is lead-free.
