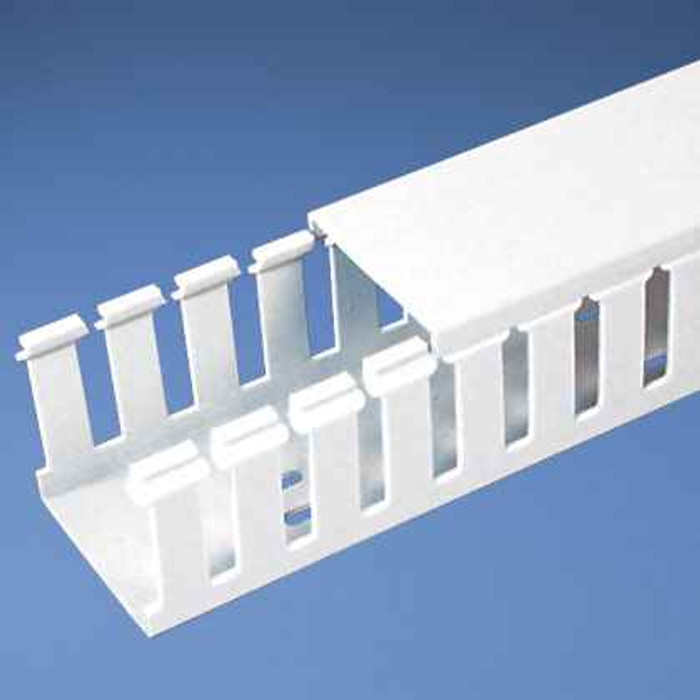

Panduit G3X2WH6 Wide Slot Base Wiring Duct, White PVC
The Panduit G3X2WH6 wide slot base wiring duct delivers professional cable management with enhanced sidewall rigidity for versatile applications. This 6-foot white PVC duct features 3.25" x 2.12" dimensions with a 0.31" slot width, providing reliable wire organization and protection for commercial and industrial installations. Built from lead-free PVC and rated UL94 V-0 for flammability, this base-only duct section is engineered for safe, code-compliant performance in demanding electrical environments.
Key Features
- Trade Size: 3.25" x 2.12" overall duct dimensions for generous multi-cable capacity in a compact profile.
- Wide Slot Design: 0.31" slot width provides greater sidewall rigidity and accommodates various cable sizes for flexible routing.
- Durable Construction: Lead-free white PVC construction offers excellent chemical resistance, UV stability, and long-term durability.
- Fire-Rated Construction: UL94 V-0 flammability rating ensures safe performance in critical electrical installations.
- Mounting Flexibility: Mounting holes design allows secure installation on various surfaces with standard hardware.
- Standard Length: 6-foot (1.83m) sections provide efficient coverage while minimizing joints for a clean installation.
- Base Only: Ships as base duct only (cover part number C3WH6 sold separately).
Certifications & Compliance
- UL Recognized
- UL94 V-0 Flammability Rating
- CE Compliant
- RoHS Compliant
- BABA Compliant
- Lead-Free PVC Material
Technical Specifications
- Arra Compliant: Y
- California Pro65 Cancer: No
- Hazardous Material Flag: N
- Mercury Content Indicator: N
- Min Order Qty: 120
- Overall Length Ft: 6
- Product Material: PVC
- Product Segment: IEI
- Reach Status: N
- Slot Width Mm: 7.9
- Std Carton Height In: 4.5
- Std Ctn Qty: 120
- Std Package Height In: 2
- Std Package Length In: 72
- Std Package Width In: 3
- Std Pkg Qty: 6
- Wiring Duct Type: G
Typical Applications
- Commercial Building Electrical Systems
- Industrial Control Panel Wiring
- Data Center Cable Management
- Telecommunications Equipment Rooms
- Manufacturing Facility Installations
- Office Building Infrastructure
Why Panduit?
Panduit delivers proven reliability with UL Recognized, CE Compliant, and RoHS Compliant certifications ensuring regulatory compliance and safe performance. The UL94 V-0 flammability rating and lead-free PVC construction provide long-term durability and safety in demanding electrical environments, backed by comprehensive compliance standards for professional installations.
Manufacturer Resources
Spec Sheet
Product Specs
- Arra Compliant:
- Y
- California Pro65 Cancer:
- No
- Country Of Origin:
- United States
- Cover Part Number:
- C3WH6
- Duct Dimensions In:
- 3.25W x 2.12H
- Ean:
- 74983546268
- Flammability Rating:
- UL94 V-0
- GTIN Carton:
- 5.0075E+13
- GTIN Package:
- 74983546268
- Hazardous Material Flag:
- N
- Includes:
- Base Only
- Material Properties:
- Lead-Free
- Measurement System:
- Imperial
- Mercury Content Indicator:
- N
- Min Order Qty:
- 120
- Mount Method:
- Mounting Holes
- Overall Height (In.):
- 2.12
- Overall Height Mm:
- 53.8
- Overall Length (ft.):
- 6
- Overall Length (m):
- 1.83
- Overall Width (In.):
- 3.25
- Overall Width (mm):
- 82.6
- Pallet Quantity:
- 1,680
- Pallet Volume:
- 49.317397
- Pallet Weight:
- 559.944
- Product Color:
- White
- Product Material:
- PVC
- Product Segment:
- IEI
- Product Type:
- Wiring Duct
- REACH Status:
- N
- Rohs Compliant:
- Compliant
- Slot Width In:
- 0.31
- Slot Width Mm:
- 7.9
- Standard Carton Volume Ft3:
- 3.5227
- Standard Carton Weight Pounds:
- 39.996
- Standard Package Volume Ft3:
- 0.1761
- Standard Package Weight Pounds:
- 1.9998
- Std Carton Height In:
- 4.5
- Std Carton Height MM:
- 114.3
- Std Carton Length In:
- 72.9
- Std Carton Length MM:
- 1851.66
- Std Carton Width In:
- 18.6
- Std Carton Width MM:
- 472.44
- Std Ctn Qty:
- 120
- Std Package Height In:
- 2
- Std Package Height MM:
- 50.8
- Std Package Length In:
- 72
- Std Package Length MM:
- 1828.8
- Std Package Width In:
- 3
- Std Package Width MM:
- 76.2
- Std. Pkg. Qty.:
- 6
- Std. Pkg. UOM:
- Foot
- Wiring Duct Style:
- Wide Slot Wiring Duct
- Wiring Duct Type:
- G
- Department:
- Electrical
- Product Group:
- Conduit & Raceway
- Product Subgroup:
- Wireway
- Sub Brand:
- Panduct®
Panduit G3X2WH6 – Frequently Asked Questions
1) Does the Panduit G3X2WH6 wiring duct come with a cover?
No. The G3X2WH6 ships as base only. The matching cover is Panduit part number C3WH6 and has to be ordered separately, so budget one 6-foot cover per 6-foot base section.
2) What is the minimum order quantity on Panduit G3X2WH6 duct, and how much footage is that?
Minimum order is 120, with the standard package being 6 feet and the standard carton holding 120. Standard unit of measure is the foot, so plan the buy in full 6-foot sticks rather than cut lengths.
3) What are the actual duct dimensions of the Panduit G3X2WH6, and will it fit in my panel wireway channel?
The duct measures 3.25 inches wide by 2.12 inches high (82.6 mm x 53.8 mm) in 6-foot (1.83 m) lengths. Lay out at least 3-1/4 inches of clear panel width per run, and remember the C3WH6 snap-on cover adds nothing to the width but needs clearance to flex open.
4) Is the Panduit G3X2WH6 duct flame rated for use inside a control panel?
The duct carries a UL94 V-0 flammability rating and the PVC is lead-free. It is also RoHS compliant. That V-0 rating is the self-extinguishing class panel builders typically specify for duct inside an enclosure.
5) What does the wide slot on the Panduit G series duct do for me versus a narrow finger duct?
The G3X2WH6 is a wide slot Panduct design with a 0.31 inch (7.9 mm) slot opening. Wider slots mean fewer, thicker fingers, so the sidewalls stay rigid when the duct is loaded and you can pull out larger bundles or heavier conductors without forcing them past a narrow finger gap. Narrow slot duct gives you more exit points per foot for fine, single-conductor panel wiring; the wide slot suits mixed cable sizes and bulkier runs.
6) How does the Panduit G3X2WH6 duct mount, and does it include screws?
Mounting is through pre-provided mounting holes in the base, fastened with your own hardware. No screws, anchors, or adhesive are supplied, since the part ships as base only. Pick fasteners to suit the backpan or subpanel you are landing it on.
7) Is Panduit G3X2WH6 duct acceptable for a federally funded or Buy America job?
It is ARRA compliant and made in the United States, and also listed CE and RoHS compliant. For a public-works or federally funded panel build, those are the two boxes most specs ask about.
8) Will the white Panduit G3X2WH6 duct match the duct already in my existing panels?
The G3X2WH6 is white PVC in the Panduct G wide slot type. If the duct already in your panels is Panduit G-type wide slot in white, this matches on both color and profile. Check the duct size stamped on the existing run, though, because G-type comes in several cross sections and this one is the 3.25 x 2.12 inch size.
