Panduit Aluminum Screw-On Cable Tie Mount, Natural, #10 Screw

Panduit Aluminum Screw-On Cable Tie Mount, Natural, #10 Screw

(No reviews yet) Write a Review

Model: MBMS-S10-CY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$45.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Aluminum Screw-On Cable Tie Mount, Natural, #10 Screw

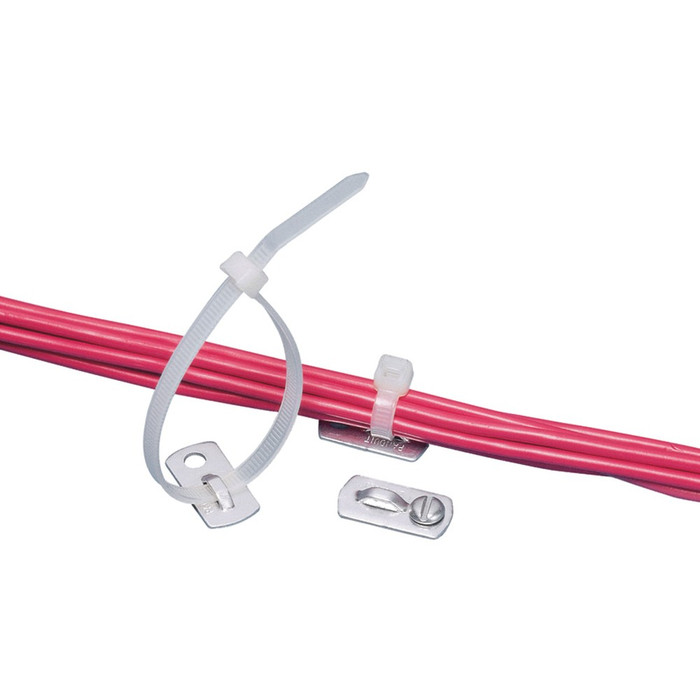

The Panduit Aluminum Screw-On Cable Tie Mount is a metal mounting base built for secure cable tie attachment in demanding industrial and commercial environments. Constructed of aluminum with a natural finish, this mount uses a #10 (M5) screw to anchor to a surface and accepts miniature, intermediate, and standard cross-section cable ties. It is rated for both indoor and outdoor use and ships in packages of 100 for efficient job-site stocking.

Key Features

  • Screw-On Mounting: #10 mounting hole thread size (M5) provides a secure, permanent attachment point for cable ties.
  • Durable Construction: Aluminum body resists corrosion and holds up in demanding indoor and outdoor applications.
  • Broad Cable Tie Compatibility: Designed for use with miniature, intermediate, and standard cross-section cable ties.
  • Wide Operating Temperature Range: Rated from -76°F to 185°F (-60°C to 85°C) for reliable performance indoors and outdoors.
  • Minimum Loop Tensile Strength: 222 N (50 lb) for secure, long-term cable retention.
  • Finish: Natural aluminum finish.
  • Compact Footprint: 1" overall length and 0.14" overall height keep the mount low-profile once installed.
  • Packaging: Supplied in convenient packages of 100 pieces.

Certifications & Compliance

  • UL Recognized: E136577 Type 2, 21
  • CE Compliant
  • RoHS Compliant

Technical Specifications

  • Maximum Operating Temperature (°F): 185
  • REACH Status: N
  • California Pro65 Cancer: No
  • Mercury Content Indicator: N
  • Product Segment: IEI
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Mounting Hole Thread Size: #10
  • ARRA Compliant: Y
  • Maximum Operating Temperature (°C): 85
  • Std. Pkg. Qty.: 100
  • Minimum Loop Tensile Strength (lb): 50
  • For Use With: Miniature, Intermediate, Standard cross section cable ties
  • Overall Length (In.): 1
  • Environment: Indoor/Outdoor
  • Std Carton Length MM: 256.54
  • Std Carton Width MM: 158.75
  • UOM EA PK: PK
  • Product Size: 5"

Typical Applications

  • Cable Management in Industrial and Commercial Electrical Installations
  • Indoor and Outdoor Cable Routing and Support
  • Panelboard, Rack, and Equipment Cable Securing
  • Data Center and Telecommunications Cabling
  • Renovation and New Construction Wiring Projects

Why Panduit?

Panduit builds this aluminum cable tie mount for demanding indoor and outdoor environments, backed by a UL Recognized E136577 Type 2, 21 listing, CE compliance, and RoHS compliance. With a -76°F to 185°F operating range and a minimum loop tensile strength of 222 N (50 lb), it delivers dependable, code-conscious cable support for professional electrical and data installations.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0133
Maximum Operating Temperature (°F):
185
Standard Package Weight Pounds:
0.1700
REACH Status:
N
Std. Pkg. UOM:
Piece
Overall Width (mm):
12.7
Std Carton Length In:
10.1
California Pro65 Cancer:
No
Std Carton Height In:
4.35
Std Package Length In:
4.95
Overall Length (mm):
25.4
Country of Origin:
United States
Standard Carton Volume Ft3:
0.1329
Std Package Length MM:
125.73
Mercury Content Indicator:
N
Std Carton Width In:
6.25
Std Ctn Qty:
1000
Mount Method:
Screw-On
Product Segment:
IEI
Product Type:
Cable Tie Mount
GTIN Carton:
50074983461726
Std Carton Height MM:
110.49
Minimum Loop Tensile Strength (N):
222
Std Package Width MM:
119.38
Pallet Quantity:
87,000
Std Package Height In:
1.05
Minimum Operating Temperature (°C):
-60
Standard Carton Weight Pounds:
1.7000
Overall Height (In.):
0.14
Minimum Operating Temperature (°F):
-76
Std Package Height MM:
26.67
Min Order Qty:
1,000.0000
Mounting Hole Thread Size:
#10
RoHS Compliant:
Compliant
GTIN Package:
00074983461721
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
85
Std. Pkg. Qty.:
100
Minimum Loop Tensile Strength (lb):
50
For Use With:
Miniature, Intermediate, Standard cross section cable ties
Overall Length (In.):
1
Environment:
Indoor/Outdoor
Std Carton Length MM:
256.54
Std Carton Width MM:
158.75
UOM EA PK:
PK
Product Material:
Aluminum
Product Color:
Natural
Product Size:
5"
Department:
Electrical
Product Group:
Wiring Devices
Pack size (unit):
100
Product Subgroup:
Cable Ties & Mounts

Panduit MBMS-S10-CY – Frequently Asked Questions

1) What size screw does the Panduit MBMS-S10-CY cable tie mount take?
The MBMS-S10-CY aluminum tie mount has a #10 mounting hole, also called M5. You supply the fastener, so match it to the substrate: a #10 sheet metal screw into panel steel, a #10-32 machine screw into a tapped hole, or a #10 anchor in masonry. The mount itself is just the base that the cable tie threads through.
2) Which cable ties fit this Panduit aluminum screw-on mount?
It accepts miniature, intermediate, and standard cross section cable ties. That covers most general-purpose bundling ties. Heavy cross section ties are outside what this base is specified for, so if you are bundling large power feeders with heavy-duty ties, choose a mount rated for that cross section instead.
3) Can this cable tie mount be used outdoors?
Yes. The aluminum body is rated for indoor and outdoor use, with an operating range of -76 to 185 degrees F (-60 to 85 degrees C). That covers exterior conduit runs, rooftop equipment, and unconditioned spaces in cold climates. The tie itself is the weak point outdoors, so pair it with a UV-rated or stainless tie.
4) Does the Panduit MBMS-S10-CY carry a UL recognition?
It is UL Recognized under file E136577, Type 2, 21. It is also CE compliant and RoHS compliant, and it is ARRA compliant with United States country of origin, which matters on federally funded work with domestic-content requirements.
5) How much space does this mount take up on the surface?
Footprint is 1 inch overall length by 12.7 mm wide, and it stands only 0.14 inch high once fastened. Low enough to sit under a panel cover or behind rack-mounted gear without interfering, and short enough to land between mounting holes in tight enclosures.
6) Is this an adhesive mount or does it need to be screwed down?
Screw-on only. There is no adhesive backing, so you need a drilled or tapped hole and a #10 fastener at every mount location. That is the trade-off: more install labor than a stick-on base, but it holds in heat, on painted or dirty surfaces, and outdoors where adhesive lets go.
7) How are these aluminum tie mounts packaged for a job site?
They ship 100 pieces to a package and 1,000 per standard carton. Order minimum is 1,000 pieces. A single package weighs about 0.17 lb, a full carton about 1.7 lb, so stocking a truck or a gang box with a few thousand is no burden.
8) Will a natural aluminum tie mount corrode in a damp or washdown area?
The body is aluminum in a natural, unpainted finish, which resists corrosion and is why this mount is rated for outdoor service. For chemical washdown or coastal salt exposure, stainless hardware is the safer specification. Also keep the fastener metal compatible: a plain steel screw in an aluminum base in a wet location invites galvanic corrosion, so use stainless.
