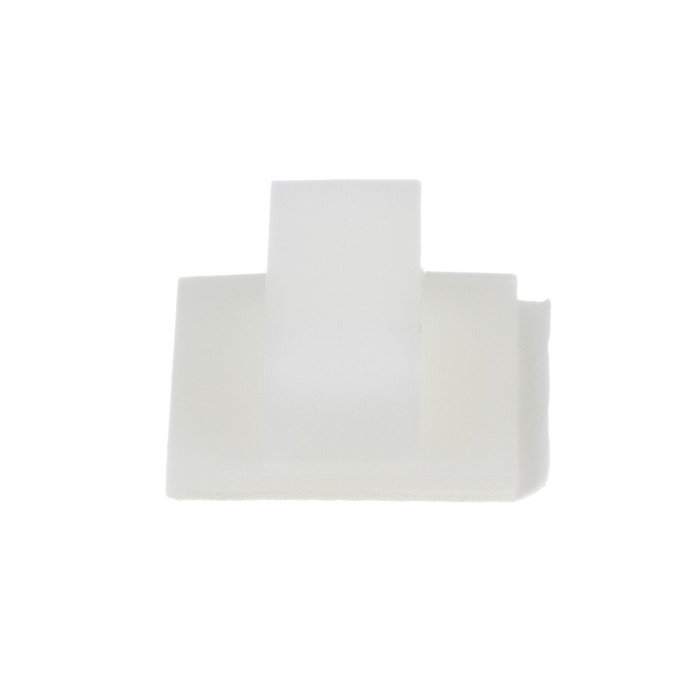

Panduit BEC38-A-L Wire Clip, Natural Nylon, Adhesive Mount
Panduit's BEC38-A-L wire clip is a rubber-based adhesive-backed bevel entry clip built for fast, tool-free cable bundling. Molded from natural-colored PA 6.6 nylon, this clip measures 1.46" x 1.24" x 0.52" and supports a maximum bundle diameter of 0.38" (9.6mm). The bevel entry design lets cables be attached and detached without disturbing the adhesive mount, and each package contains 50 clips. RoHS compliant for indoor commercial and industrial wiring applications.
Key Features
- Compact Footprint: Measures 1.46" x 1.24" x 0.52" (Overall Length 1.46 In.), fitting tight routing spaces without adding bulk.
- Durable Construction: Molded from PA 6.6 nylon in a natural color for reliable long-term performance.
- Maximum Bundle Diameter: Secures cable bundles up to 0.38" (9.6mm) in diameter.
- Adhesive Mount: Rubber-based adhesive tape backing provides a strong bond and fast installation without screws or drilling.
- Bevel Entry Design: Allows cables to be attached and detached without disturbing the clip mount.
- Load Rated: Horizontal static load capacity of 0.91 lb (0.411 kg) per clip.
- Packaging: Supplied in packages of 50 (Std. Pkg. Qty. 50), with 500 clips per standard carton.
Certifications & Compliance
- RoHS Compliant
- Country of Origin: United States
Technical Specifications
- REACH Status: N
- California Pro65 Cancer: No
- Std Carton Height In: 9.5
- Std Package Length In: 12
- Lead Content Indicator: N
- Mercury Content Indicator: N
- Std Carton Width In: 8.9
- Std Ctn Qty: 500
- Product Segment: IEI
- Std Package Height In: 1.5
- Maximum Bundle Diameter (mm): 9.6
- ARRA Compliant: Y
- Std. Pkg. Qty.: 50
- Horizontal Static Load Capacity (kg): 0.411
- Environment: Indoor
- Overall Length (In.): 1.46
- Std Carton Length MM: 361.95
- Std Carton Width MM: 226.06
- UOM EA PK: PK
- Pallet Volume: 34.755309
- Std Package Width In: 6
- Product Size: 52"
Typical Applications
- Cable and Cord Routing in Commercial and Industrial Facilities
- Panel and Enclosure Wire Management
- Data Center and Telecom Cabling Organization
- Indoor Wiring Installations
- Retrofit and New Construction Cable Bundling
Why Panduit?
Panduit's BEC38-A-L wire clip combines RoHS-compliant PA 6.6 nylon construction with a rubber adhesive mount engineered for a dependable, code-conscious cable management solution. Backed by consistent manufacturing quality, Panduit wire clips deliver the strong bond and fast installation professionals rely on for organized, reliable wiring systems.
Manufacturer Resources
Product Specs
- Standard Package Volume Ft3:
- 0.0579
- Standard Package Weight Pounds:
- 0.5950
- REACH Status:
- N
- Std. Pkg. UOM:
- Piece
- Overall Width (mm):
- 31.5
- Std Carton Length In:
- 14.25
- California Pro65 Cancer:
- No
- Std Carton Height In:
- 9.5
- Application:
- Route and Secure Cords and Cables
- Std Package Length In:
- 12
- Horizontal Static Load Capacity (lb):
- 0.91
- Overall Length (mm):
- 37.1
- Country of Origin:
- United States
- Standard Carton Volume Ft3:
- 0.5793
- Std Package Length MM:
- 304.8
- Lead Content Indicator:
- N
- Mercury Content Indicator:
- N
- Std Carton Width In:
- 8.9
- Maximum Bundle Diameter (In.):
- 0.38
- Mount Method:
- Adhesive Tape
- Std Ctn Qty:
- 500
- Product Segment:
- IEI
- Product Type:
- Wire Clip
- GTIN Carton:
- 50074983223041
- Std Carton Height MM:
- 241.3
- Std Package Width MM:
- 152.4
- Pallet Quantity:
- 30,000
- Std Package Height In:
- 1.5
- Adhesive Material:
- Rubber
- Standard Carton Weight Pounds:
- 5.9500
- Overall Height (In.):
- 0.52
- Std Package Height MM:
- 38.1
- Min Order Qty:
- 500.0000
- Maximum Bundle Diameter (mm):
- 9.6
- RoHS Compliant:
- Compliant
- GTIN Package:
- 00074983223046
- Min. Order UOM:
- Piece
- ARRA Compliant:
- Y
- Std. Pkg. Qty.:
- 50
- Horizontal Static Load Capacity (kg):
- 0.411
- Environment:
- Indoor
- Overall Length (In.):
- 1.46
- Std Carton Length MM:
- 361.95
- Std Carton Width MM:
- 226.06
- Body Material:
- Nylon 6.6
- UOM EA PK:
- PK
- Pallet Volume:
- 34.755309
- Std Package Width In:
- 6
- Product Color:
- Natural
- Product Size:
- 52"
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Pack Size:
- 100
Panduit BEC38-A-L – Frequently Asked Questions
1) What size cable bundle will the Panduit BEC38-A-L wire clip hold?
The BEC38-A-L holds a bundle up to 0.38 inches (9.6 mm) in diameter. That covers things like a small group of low-voltage or data cables, a single line cord, or a couple of thermostat runs. Anything thicker than 0.38 inches will not seat in the clip, so measure the finished bundle, not the individual conductor.
2) Can I use the Panduit BEC38-A-L wire clip outdoors or in a damp location?
No. The BEC38-A-L is rated for indoor use only. The rubber-based adhesive tape backing is the limiting factor, and outdoor temperature swings, UV and moisture will work against the bond. For exterior runs, use a screw-applied or clamp-type mount instead.
3) Do I have to drill to install the BEC38-A-L, or is it stick-on?
Stick-on. The clip mounts with a rubber-based adhesive tape backing, so there is no drilling, no screw and no anchor. The mounting surface needs to be clean and dry for the bond to hold. That makes it useful in finished spaces, rental units, and inside enclosures where you do not want to put a fastener through the panel.
4) Can cables be removed from the BEC38 clip later without pulling the mount off the wall?
Yes. The bevel entry lets cable be pushed in and taken back out without disturbing the adhesive mount, so the clip stays put through moves, adds and changes. That is the practical difference from a cable tie, which you cut and replace every time you touch the bundle.
5) How much space does the Panduit BEC38-A-L take up on the mounting surface?
Overall it measures 1.46 x 1.24 x 0.52 inches, with an overall length of 1.46 in. (37.1 mm), width 31.5 mm and height 0.52 in. That half-inch profile matters inside an enclosure door or under a desk, where the clip and cable together have to clear whatever closes over them.
6) How are Panduit BEC38-A-L wire clips packaged, and is there a minimum order?
They ship in packages of 50 pieces, with 500 clips to a standard carton. The minimum order is 500 pieces, so a single carton is the smallest buy. A full pallet runs 30,000 clips. Standard carton weight is 5.95 lb.
7) Is the Panduit BEC38-A-L RoHS compliant and does it meet Buy American / ARRA requirements?
The BEC38-A-L is RoHS compliant and flagged ARRA compliant, with country of origin listed as the United States. Lead and mercury content indicators are both N, and it is not flagged under California Prop 65 for cancer. Useful on federally funded institutional and government work where domestic sourcing has to be documented.
8) What is the BEC38-A-L clip made of, and will the natural color show against painted surfaces?
The body is molded PA 6.6 nylon in natural, which is an off-white translucent color rather than a bright white or black. On white or light walls and inside light gray enclosures it disappears reasonably well; on dark trim or black panel interiors it will read as a light spot. The adhesive itself is rubber based.
