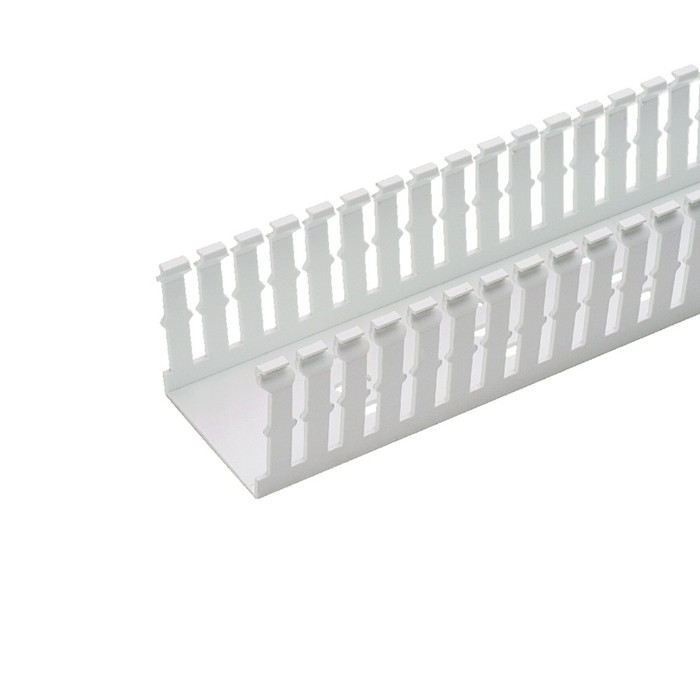

Panduit F2X3WH6A Narrow Slot Base Wiring Duct, Lead-Free PVC
The Panduit F-Series Narrow Slot Base Wiring Duct is a Lead-Free PVC wiring duct featuring a narrow slot/finger design that closely matches the spacing of high-density components and terminal blocks. This base duct has a 4" x 5" (101.6 mm x 127.0 mm) cross-section, ships in 6' (1.83 m) lengths, and is available in Gray or White to suit panel and enclosure color schemes. It carries a UL 94 flame class of V-0 and a UL recognized continuous-use temperature up to 122°F (50°C), making it a dependable choice for high-density control panel and terminal block wiring. Mounting holes are provided for permanent fastening, and a matching cover is sold separately.
Key Features
- Trade Size: 4" x 5" (101.6 mm x 127.0 mm) cross-section for routing high-density wiring.
- Duct Length: 6' (1.83 m) sections for efficient panel and enclosure runs.
- Color Options: Available in Gray or White base duct to match panel builds.
- Narrow Slot/Finger Design: Closely matches the spacing of high-density terminal block components for clean, organized wire routing.
- Slot Width: 0.2 in. (5 mm) narrow slot spacing for fine wire management.
- Durable Construction: Lead-Free PVC material provides safe, compliant wire management for control panels and enclosures.
- Flame Rating: UL 94 flame class of V-0 for demanding electrical environments.
- Continuous-Use Temperature: UL recognized for continuous use up to 122°F (50°C).
- Mounting: Mounting holes with adhesive backing provided; a permanent mounting hole is exposed on each end for fastener installation on clean, dry, grease-free surfaces.
- Easy Modification: Upper and lower scorelines allow easy finger/sidewall section removal to fit application needs.
Certifications & Compliance
- RoHS Compliant
- UL Recognized
- CE Compliant
- BABA Compliant
Technical Specifications
- Wiring Duct Style: Narrow Slot Wiring Duct
- Wiring Duct Type: F
- Material: PVC (Lead-Free)
- Slot Width: 0.2 in. (5 mm)
- Overall Length: 6 ft. (1.83 m)
- Std. Pkg. Qty.: 6
- Std Ctn Qty: 60
- Country of Origin: United States
Typical Applications
- High-Density Terminal Block Wiring
- Industrial Control Panel Wire Management
- Panelboard and Enclosure Wiring
- Commercial and Industrial Electrical Installations
- Renovation and New Panel Builds
Why Panduit?
Panduit F-Series wiring duct is built from Lead-Free PVC and carries a UL 94 V-0 flame rating along with UL Recognized, RoHS, CE, and BABA compliance, giving electrical contractors and panel builders a reliable, code-compliant wire management solution in either Gray or White. The narrow slot/finger design and scoreline construction make it easy to adapt this duct to demanding high-density terminal block applications while keeping installations clean and organized.
Manufacturer Resources
Product Specs
- Wiring Duct Style:
- Narrow Slot Wiring Duct
- Std. Pkg. UOM:
- Foot
- Measurement System:
- Imperial
- Overall Length (m):
- 1.83
- Material Properties:
- Lead-Free
- Std Package Length MM:
- 1828.8
- Mercury Content Indicator:
- N
- Sub Brand:
- Panduct®
- Mount Method:
- Mounting Holes with Adhesive
- Product Segment:
- IEI
- Slot Width (mm):
- 5
- Min Order Qty:
- 60.0000
- UOM EA PK:
- PK
- Any Reason Not to Sell:
- N
- REACH Status:
- N
- Std Carton Length In:
- 73
- Includes:
- Base Only
- Std Package Length In:
- 72
- Country of Origin:
- United States
- Std Ctn Qty:
- 60
- Product Type:
- Wiring Duct
- Wiring Duct Type:
- F
- Flammability Rating:
- UL94 V-0
- RoHS Compliant:
- Compliant
- Min. Order UOM:
- Foot
- ARRA Compliant:
- Y
- Std. Pkg. Qty.:
- 6
- Slot Width (In.):
- 0.2
- Overall Length (ft.):
- 6
- Std Carton Length MM:
- 1854.2
- Hazardous Material Flag:
- N
- Product Material:
- PVC
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Size:
- 4" x 5"
- Configuration:
- Narrow Slot
- Listing:
- UL Recognized
- Standards:
- UL94 V-0
Panduit F2X3WH6-A – Frequently Asked Questions
1) Does the Panduit F-Series wiring duct come with a cover, or do I have to order that separately?
Base only. The F-Series Panduct narrow slot duct ships as the base channel, and the matching cover is a separate order line. Budget a cover for every run length you buy, or the wiring sits exposed in the panel.
2) What is the slot width on Panduit F-Series narrow slot duct, and why does it matter for terminal blocks?
The slot opening is 0.2 in. (5 mm). That narrow finger spacing is the point of the F-Series: the fingers line up closely with the pitch of high-density terminal blocks, so conductors break out right at the block instead of being bundled and dragged sideways. If you are routing large multi-conductor bundles rather than dense point-to-point panel wiring, a wider-slot duct style suits better.
3) Does this duct meet the flame rating requirements for an industrial control panel build?
It carries a UL 94 V-0 flame class and is UL Recognized, with a UL recognized continuous-use temperature up to 122 degrees F (50 degrees C). If your panel sees sustained internal temperatures above that, this is not the right duct for the enclosure.
4) Does Panduit F-Series duct qualify for Buy America and RoHS requirements on a federal or institutional job?
Made in the USA, ARRA compliant, RoHS compliant, BABA compliant, and CE compliant. The PVC is lead-free and the product carries no mercury content and is not flagged hazardous, which covers most of the submittal boxes on government, healthcare, and education panel work.
5) How do you mount Panduit F-Series duct inside an enclosure?
Two ways, and they are meant to work together. The duct comes with adhesive backing plus mounting holes, and a permanent mounting hole is exposed at each end for a screw or rivet. Panduit's guidance is that the adhesive only holds on a clean, dry, grease-free surface, so treat it as a positioning aid and follow with mechanical fasteners on anything that will carry real wire weight or see vibration.
6) How long is each stick of Panduit F-Series duct, and how many come in a pack?
Each length is 6 ft. (1.83 m). Standard pack is 6 pieces, and the standard carton holds 60. Packaging length runs 72 in., with the carton at 73 in., so plan for a full-length freight item that will not fit a parcel shelf.
7) Can I cut down the fingers or sidewall on this duct to clear a component?
Yes. Upper and lower scorelines are molded into the duct so finger and sidewall sections snap out without a saw. That is how you get around a breaker, a DIN rail end stop, or a tall relay base without swapping to a shorter duct size.
8) What color options does Panduit F-Series narrow slot duct come in?
Two: white, ordered as F2X3WH6-A, and gray, ordered as F4X5LG6-A. Match the existing duct in the panel if you are extending a run, and note the part numbers differ by more than color, so order by the exact MPN that matches the duct already installed.
9) Is PVC wiring duct the right choice, or should I be using a metal wireway?
Lead-free PVC duct like the F-Series Panduct is for inside the enclosure: it organizes conductors between terminal blocks, breakers, and I/O inside a control panel or panelboard, with fingers that let wires exit anywhere along the run. A metal wireway is a raceway between enclosures and carries conductors through a building. If the run leaves the panel, this is not the product.
