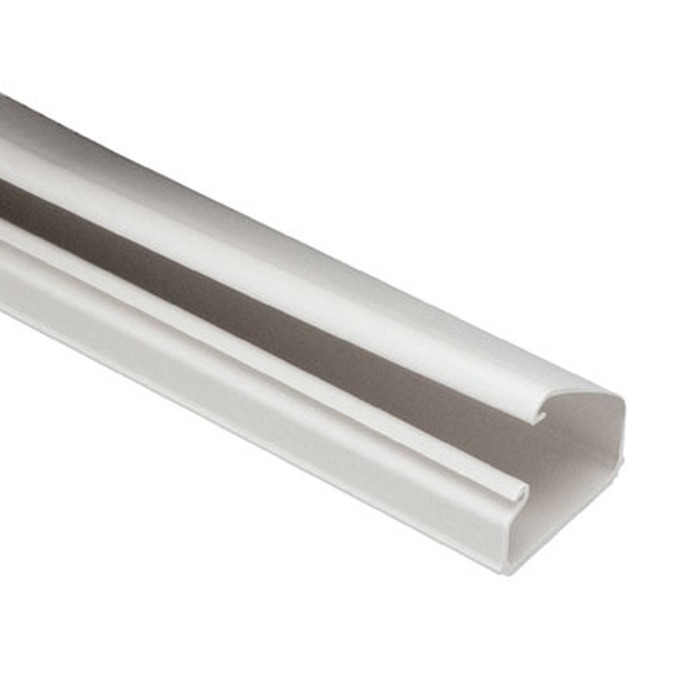

Panduit LD10 Single Channel Low Voltage Surface Raceway, White

Panduit LD10 Single Channel Low Voltage Surface Raceway, White

(No reviews yet) Write a Review

Model: LD10WH8-A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit LD10 Single Channel Low Voltage Surface Raceway, White

The Panduit LD10 Single Channel Low Voltage Surface Raceway is a one-piece latching channel with an integrated cover, engineered to route, protect, and conceal data, voice, and video cabling. Constructed of rigid PVC in White, this Pan-Way® raceway measures 1.5 inches wide by 0.94 inches deep and is rated for low-voltage applications up to 50V. It meets TIA/EIA standards, making it a reliable choice for structured cabling in commercial and enterprise environments.

Key Features

  • Dimensions: 1.5" wide x 0.94" deep single-channel profile for concealing low-voltage cable runs.
  • Durable Construction: Rigid PVC one-piece latching channel with an integrated cover for a clean, finished appearance.
  • Fast Mounting: Factory-applied adhesive backing allows quick, tool-free installation to walls and surfaces.
  • Low Voltage Rating: Designed for use in applications up to 50V, suitable for data, voice, and video cabling.
  • Standards Compliance: Meets TIA/EIA standards for structured cabling installations.
  • Finish: White color blends into typical wall and ceiling finishes.

Certifications & Compliance

  • UL94V-0
  • FT4
  • Meets TIA/EIA Standards

Technical Specifications

  • Product Material: PVC
  • For Use With: LD Raceway
  • Overall Length (ft.): 8
  • Overall Width: 1.5"
  • Overall Height (In.): 0.94
  • Raceway Type: Low Voltage
  • Mount Method: Adhesive
  • Sub Brand: Pan-Way®
  • Country of Origin: United States

Typical Applications

  • Structured Cabling and Low-Voltage Wire Management
  • Concealing Data, Voice, and Video Cable Runs
  • Commercial and Enterprise Office Environments
  • Surface-Mounted Cable Raceway Retrofits
  • New Construction Low-Voltage Cable Routing

Why Panduit?

Panduit's Pan-Way® LD10 surface raceway combines rigid PVC construction with a one-piece latching design, adhesive-backed mounting, and TIA/EIA-compliant performance for dependable low-voltage cable management. It's a practical solution for professionals who need a clean, code-conscious way to route and protect data, voice, and video cabling.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0863
Raceway Type:
Low Voltage
Standard Package Weight Pounds:
1.2500
REACH Status:
N
Std. Pkg. UOM:
Foot
Overall Length (m):
2.44
Overall Width (mm):
38.4
Std Carton Length In:
96.9
California Pro65 Cancer:
No
Std Carton Height In:
3.8
Material Properties:
Rigid
Std Package Length In:
90
Country of Origin:
United States
Standard Carton Volume Ft3:
1.7260
Std Package Length MM:
2286
Lead Content Indicator:
N
Mercury Content Indicator:
N
Std Carton Width In:
8.1
Sub Brand:
Pan-Way®
Std Ctn Qty:
160
Mount Method:
Adhesive
Product Segment:
EDI-ENT
Product Type:
Low Voltage Channel
GTIN Carton:
50074983729895
Std Carton Height MM:
96.52
Attachment Type:
Channel
Std Package Width MM:
111.76
Pallet Quantity:
4,800
Std Package Height In:
.4
Standard Carton Weight Pounds:
25.0000
Internal Area (in²):
1
Overall Height (In.):
0.94
Std Package Height MM:
10.16
Min Order Qty:
160.0000
RoHS Compliant:
Compliant
GTIN Package:
00074983729890
Min. Order UOM:
Foot
ARRA Compliant:
Y
Std. Pkg. Qty.:
8
For Use With:
LD Raceway
Overall Length (ft.):
8
Std Carton Length MM:
2461.26
Std Carton Width MM:
205.74
UOM EA PK:
PK
Pallet Volume:
51.780938
Std Package Width In:
4.4
Product Material:
PVC
Product Color:
White
Department:
Electrical
Product Group:
Wiring Devices

Panduit LD10WH8-A – Frequently Asked Questions

1) Can I run 120V branch circuit wiring in the Panduit LD10 raceway?
No. The LD10 Pan-Way raceway is a low voltage channel rated for applications up to 50V, intended for data, voice, and video cable. Line voltage branch circuits need a raceway listed for power wiring, not this one. Keep the LD10 to structured cabling runs.
2) How many Cat6 cables will fit inside a 1.5 inch Panduit LD10 raceway?
The LD10 channel gives you 1 square inch of internal cable area in a profile 1.5 inches wide by 0.94 inches deep. Size your bundle against that figure and your own fill practice rather than a cable count, since jacket diameter varies by manufacturer and category.
3) Does the Panduit LD10 raceway need screws, or does it stick to the wall?
Mounting is adhesive. The LD10 ships with factory-applied adhesive backing, so it goes up tool-free on a clean, sound wall surface. On textured, dusty, or unpainted masonry the adhesive is the weak point, and installers commonly add mechanical fasteners on those substrates.
4) How long is each stick of Panduit LD10 raceway, and how much comes in a carton?
Each length is 8 feet (2.44 m). The standard package is that single 8 foot piece, and a standard carton holds 160 feet, which is the minimum order quantity. So an order comes in full-carton multiples of 160 feet, not by the stick.
5) Will elbows and couplings from other Panduit raceway sizes fit the LD10?
Fittings must be LD Raceway series parts matched to the LD10 profile. The channel is specified for use with LD Raceway components, and since the body measures 1.5 inches wide by 0.94 inches deep, fittings cut for a different LD size will not latch correctly.
6) Do I need a separate cover for the Panduit LD10 raceway?
No separate cover to order. The LD10 is a one-piece latching channel with the cover integrated, so you lay cable in and snap it closed. That is different from two-piece base-and-cover raceway systems where the cover is a distinct line item.
7) Is the Panduit LD10 raceway flame rated for use in a commercial office?
The LD10 carries UL94V-0 and FT4 flame ratings and meets TIA/EIA standards for structured cabling. It is also RoHS compliant and made in the United States, which matters on ARRA-covered work since the part is flagged ARRA compliant.
8) Can Panduit LD10 raceway be bent around a curved wall?
No. The LD10 is rigid PVC, so it runs straight and turns are made with LD Raceway fittings, not by flexing the channel. If your path curves or needs to follow an irregular surface, a flexible cable management product is the right call.
9) What is the Panduit part number to order LD10 raceway in white 8 foot lengths?
Order Panduit MPN LD10WH8-A. That designation covers the Pan-Way LD10 single channel low voltage raceway, white, in the 8 foot length with adhesive backing.
10) Will white Panduit LD10 raceway be noticeable on a painted office wall?
It comes in white, which reads close to most standard wall and ceiling finishes, and the profile is shallow at 0.94 inches deep. PVC takes paint if you need an exact color match to the wall.
