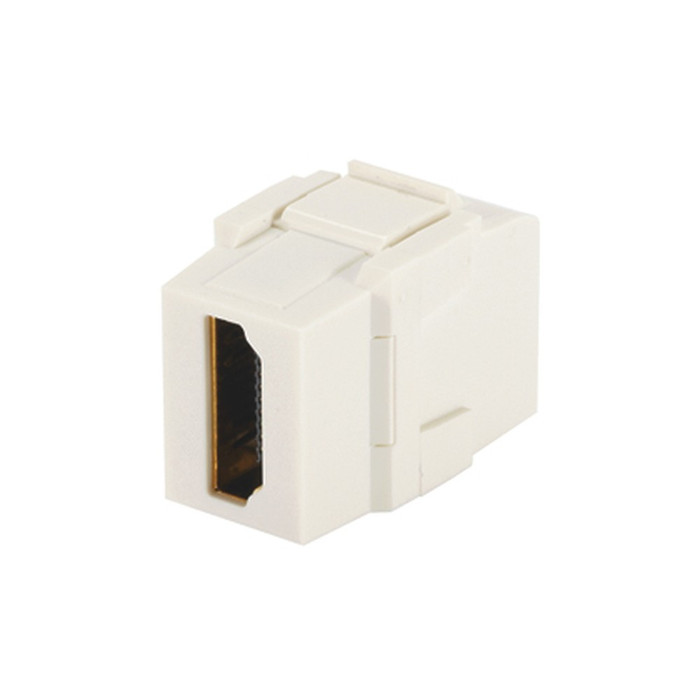

Panduit NetKey HDMI 2.0 Type A Coupler Module, White
The Panduit NetKey® HDMI 2.0 Type A Coupler Module is a female-to-female Category 2 coupler built for structured cabling and audiovisual patch panel installations. Molded from durable ABS in a clean white finish, this keystone-style module occupies a single module space and gives installers a reliable in-wall or patch-panel connection point for HDMI 2.0 signal runs. The module is RoHS Compliant and CE Compliant, making it suitable for commercial and institutional AV deployments.
Key Features
- Keystone Module Type: Type A HDMI 2.0 keystone-style module drops into standard keystone jacks, faceplates, and patch panels for straightforward integration.
- Coupler Termination: Female-to-female coupler termination style simplifies field connections without specialized termination tools.
- Category 2 Performance: Rated as a Category 2 coupler to support HDMI 2.0 signal transmission requirements.
- Module Spaces: Occupies 1 module space, supporting space-efficient faceplate and patch panel layouts.
- Durable Construction: Molded ABS housing resists impact and everyday wear in commercial and institutional environments.
- Finish: White finish coordinates with standard wall plates and patch panel trim.
- Compact Footprint: Overall width of 16.5 mm (0.65 in.) and overall depth of 27.8 mm (1.09 in.) fit standard keystone openings.
Certifications & Compliance
- RoHS Compliant
- CE Compliant
Technical Specifications
- Number of Module Spaces: 1
- Std Ctn Qty: 10
- Std. Pkg. Qty.: 1
- Overall Height (mm): 22.2
- Overall Width (In.): 0.65
- Product Material: ABS
Typical Applications
- Audiovisual Patch Panels and Faceplates
- Structured Cabling Systems
- Commercial and Institutional AV Installations
- Conference Room and Classroom AV Connectivity
- Data Center and Equipment Room Signal Routing
Why Panduit?
Panduit NetKey® connectivity products are engineered for consistent, code-compliant performance across structured cabling deployments. The keystone-style ABS construction and RoHS and CE compliance of this HDMI 2.0 coupler module give installers a dependable AV signal connection point. Choose Panduit NetKey® components for standards-based, professional-grade cabling infrastructure.
Manufacturer Resources
Product Specs
- Standard Package Volume Ft3:
- 0.0051
- Standard Package Weight Pounds:
- 0.0110
- REACH Status:
- N
- Std. Pkg. UOM:
- Piece
- Overall Width (mm):
- 16.5
- Std Carton Length In:
- 8.6
- Std Carton Height In:
- 2.6
- Std Package Length In:
- 3.45
- Country of Origin:
- China
- Standard Carton Volume Ft3:
- 0.0509
- Std Package Length MM:
- 87.63
- Mercury Content Indicator:
- N
- Std Carton Width In:
- 5.45
- Sub Brand:
- NetKey®
- Number of Module Spaces:
- 1
- Std Ctn Qty:
- 10
- Product Segment:
- EDI-ENT
- Product Type:
- HDMI Module
- GTIN Carton:
- 50074983206518
- Termination Style:
- Coupler
- Std Carton Height MM:
- 66.04
- Std Package Width MM:
- 73.66
- Pallet Quantity:
- 9,600
- Std Package Height In:
- .8
- Standard Carton Weight Pounds:
- 0.1102
- Overall Height (In.):
- 0.88
- Std Package Height MM:
- 20.32
- Min Order Qty:
- 1.0000
- RoHS Compliant:
- Compliant
- GTIN Package:
- 00074983206513
- Min. Order UOM:
- Piece
- ARRA Compliant:
- N
- Module Type:
- Keystone
- Std. Pkg. Qty.:
- 1
- Overall Depth (mm):
- 27.8
- Std Carton Length MM:
- 218.44
- Overall Depth (In.):
- 1.09
- Std Carton Width MM:
- 138.43
- UOM EA PK:
- EA
- Pallet Volume:
- 48.877778
- Std Package Width In:
- 2.9
- Hazardous Material Flag:
- N
- Any Reason Not to Sell:
- N
- Pallet Weight:
- 105.8208
- Overall Height (mm):
- 22.2
- Overall Width (In.):
- 0.65
- Product Material:
- ABS
- Product Color:
- White
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Parts & Accessories
Panduit NKHDMIWH – Frequently Asked Questions
1) Do I need to terminate HDMI cable onto this Panduit module, or does it just join two cables?
No termination work. The NKHDMIWH is a female-to-female coupler, so you plug a factory-made HDMI cable into each side. That means a pre-terminated HDMI run comes up the wall, plugs into the back of the module, and the user plugs their cable into the front. No crimping, punchdown, or special tooling.
2) Is this HDMI keystone insert good for 4K signal runs in a conference room?
It is specified as an HDMI 2.0 Type A Category 2 coupler, which is the high speed HDMI classification used for HDMI 2.0 signalling. Note that a coupler is a passive pass-through, so the actual resolution and length you get depend on the HDMI cable you run through it, not on the module.
3) Is the Panduit NKHDMIWH sold individually or only in boxes of 10?
You can buy one. Standard package is 1 piece with a minimum order quantity of 1 piece; the standard carton is 10 pieces if you want to order full cartons for a multi-room rollout.
4) Does this Panduit HDMI coupler module meet RoHS for a government or institutional AV spec?
The module is RoHS compliant and CE compliant, and it is not flagged as hazardous material or as containing mercury. Country of origin is China, and it is not ARRA compliant, which matters if your project carries a Buy American requirement.
5) Will the white NetKey HDMI module match the other keystone jacks on my wall plates?
The housing is white molded ABS, so it matches standard white faceplates and white data jacks in the same plate. If your building is standardized on a different color trim, the white body will stand out, since white is the only color of this part number.
6) What is the exact Panduit part number for the white NetKey HDMI coupler?
Order NKHDMIWH. It is the Panduit NetKey line white HDMI 2.0 Type A coupler module.
