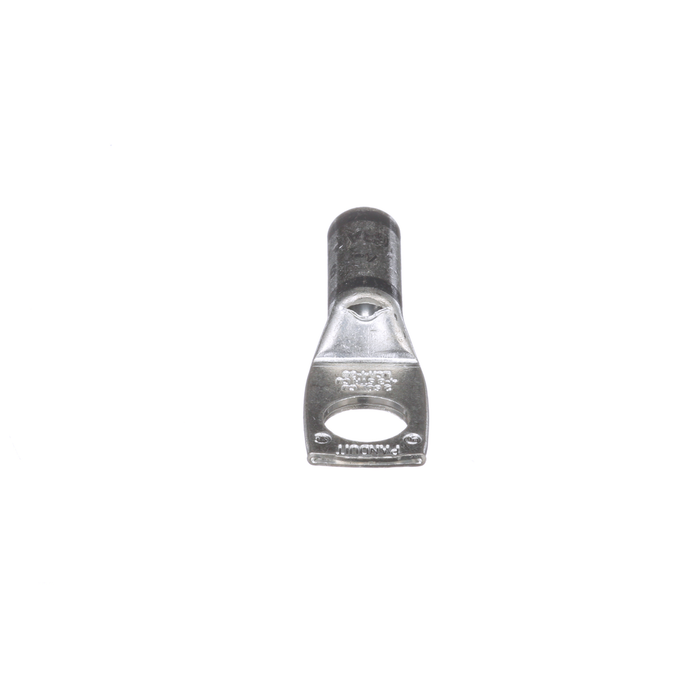

Panduit Pan-Lug™ Tin-Plated Copper Compression Lug

Panduit Pan-Lug™ Tin-Plated Copper Compression Lug

(No reviews yet) Write a Review

Model: LCA6-14-L

In Stock (leaves warehouse same day if ordered before 3pm ET)

$191.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Lug™ Tin-Plated Copper Compression Lug, One-Hole Straight Tongue

The Panduit Pan-Lug™ compression lug is a tin-plated copper, one-hole standard barrel lug with a straight tongue, engineered for reliable power termination and grounding connections. It features a color-coded barrel marked with Panduit and specified competitor die index numbers for proper crimp die selection, plus an inspection window that lets installers visually confirm full conductor insertion. This lug is UL Listed and CSA Certified to 35 kV and temperature rated to 90°C, making it suitable for demanding commercial and industrial electrical work.

Key Features

  • One-Hole Standard Barrel: Straight tongue design with beveled barrel entry for smooth, easy conductor insertion.
  • Durable Construction: Tin-plated copper base material helps inhibit corrosion for long-term reliability.
  • Inspection Window: Allows visual confirmation of full conductor insertion before crimping.
  • Color-Coded Die Selection: Barrel is marked with Panduit and specified competitor die index numbers for correct crimp die selection.
  • Wire Strip Length: 7/8" (22.2mm) for precise conductor preparation.
  • Barrel Length: 0.81" (20.6mm) standard barrel.
  • Maximum Voltage: Rated to 35 kV for high-voltage termination applications.
  • Temperature Rating: Rated to 90°C (CSA and UL) for demanding operating environments.

Certifications & Compliance

  • UL Listed to 486A-486B, File #E52164
  • CSA Certified to 35 kV
  • NEBS Level 3
  • ABS Certified
  • RoHS Compliant

Technical Specifications

  • CSA Temperature Rating (°C): 90
  • Inspection Window: Yes
  • Lead Content Indicator: N
  • Mercury Content Indicator: N
  • Wire Strip Length (In.): 7/8
  • Product Segment: IEI
  • UOM EA PK: PK
  • Any Reason Not to Sell: N
  • Stud Hole Spacing (mm): 0
  • REACH Status: N
  • California Pro65 Cancer: No
  • Maximum Voltage (kV): 35
  • UL Temperature Rating (°C): 90
  • Country of Origin: MEX
  • Std Ctn Qty: 0
  • ARRA Compliant: Y
  • Std. Pkg. Qty.: 50
  • Hazardous Material Flag: N
  • Restricted Use of Hazardous Substances: N
  • Number of Stud Holes: 1
  • Prop 65 Warning: No

Typical Applications

  • Power Distribution and Grounding Connections
  • Industrial and Commercial Electrical Installations
  • Panelboard and Switchgear Wiring
  • Cable Termination Requiring High-Voltage Ratings up to 35 kV
  • Applications Requiring UL and CSA Certified Compression Lugs

Why Panduit?

Panduit's Pan-Lug™ compression lugs combine tin-plated copper construction with an inspection window and color-coded die marking to help installers achieve a correct, verifiable crimp every time. Backed by UL Listing to 486A-486B, CSA Certification to 35 kV, NEBS Level 3, and ABS compliance, this lug delivers the code-compliant, corrosion-resistant performance professionals expect for demanding power and grounding terminations.

Manufacturer Resources

Product Specs

Barrel Length (In.):
0.81
Std. Pkg. UOM:
Piece
CSA Temperature Rating (°C):
90
Barrel Entry:
Beveled
Inspection Window:
Yes
Standard Carton Volume Ft3:
0.0000
Lead Content Indicator:
N
Mercury Content Indicator:
N
Sub Brand:
Pan-Lug™
Wire Strip Length (In.):
7/8
Product Segment:
IEI
Standard Carton Weight Pounds:
0.0000
Min Order Qty:
1.0000
UOM EA PK:
PK
Barrel Length (mm):
20.6
Pallet Volume:
0.000000
Any Reason Not to Sell:
N
Barrel Type:
Standard
Stud Hole Spacing (mm):
0
Tongue Angle:
Straight
REACH Status:
N
Base Material:
Copper
California Pro65 Cancer:
No
Maximum Voltage (kV):
35
Finish/Coating:
Tin-Plated
UL Temperature Rating (°C):
90
Country of Origin:
MEX
Std Ctn Qty:
0
Product Type:
Compression Lug
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Std. Pkg. Qty.:
50
Tongue Type:
Standard
Hazardous Material Flag:
N
Wire Strip Length (mm):
22.2
Restricted Use of Hazardous Substances:
N
Number of Stud Holes:
1
Prop 65 Warning:
No
Department:
Electrical
Product Group:
Wiring Devices
