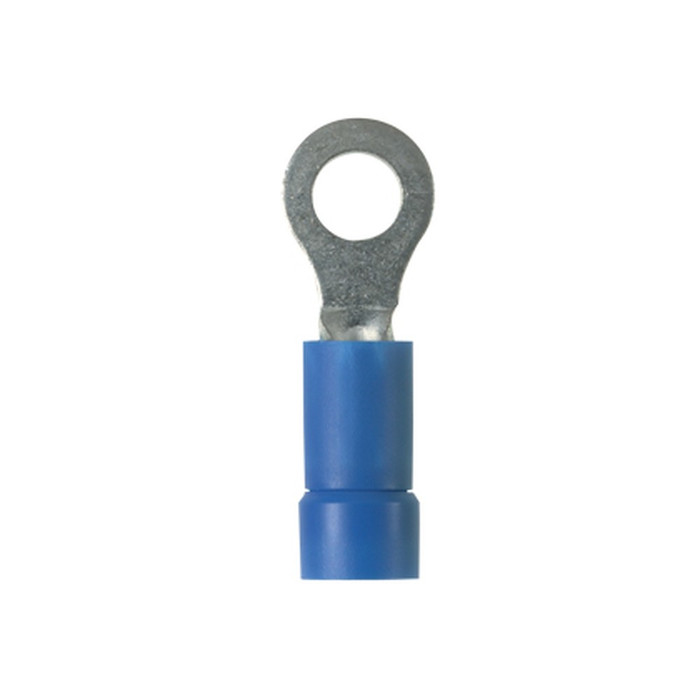

"Panduit Pan-Term® PV1 Series Ring Terminal, Vinyl-Insulated Copper"

"Panduit Pan-Term® PV1 Series Ring Terminal, Vinyl-Insulated Copper"

(No reviews yet) Write a Review

Model: PV14-38R-L

In Stock (leaves warehouse same day if ordered before 3pm ET)

$95.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

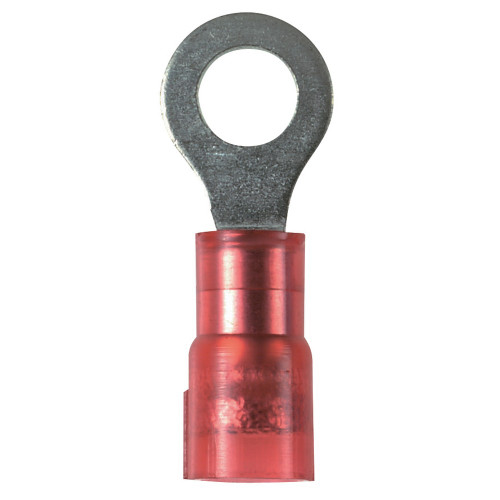

You may also like
"

Panduit Pan-Term® PV1 Series Ring Terminal, Vinyl-Insulated Copper

The Panduit Pan-Term® PV1 Series Ring Terminal is a vinyl-insulated, funnel-entry ring terminal built on a copper base with a tin-plated finish for reliable, corrosion-resistant electrical connections. This series is available across a range of wire and stud configurations — from 12–10 AWG with a 1/4" stud (expanded insulation), to 16–12 AWG with a #10 stud (heavy duty), to 16–14 AWG with a 3/8" stud — so installers can match the exact terminal to the conductor and stud size required for the job. Every configuration in the PV1 family is UL Listed and CSA Certified for use in commercial and industrial wiring applications. The brazed-seam barrel construction and funnel entry design make conductor insertion fast and consistent, while the vinyl insulation provides electrical isolation and strain relief at the termination point.

Key Features

  • Wire Range & Stud Options: Choose from 12–10 AWG (1/4" stud, expanded insulation), 16–12 AWG (#10 stud, heavy duty), or 16–14 AWG (3/8" stud) to match branch-circuit and control wiring needs.
  • Durable Construction: Copper base material with a brazed seam barrel for consistent conductivity and mechanical strength across every configuration.
  • Funnel Entry Barrel: Funnel-entry design simplifies conductor insertion and improves termination consistency regardless of the size selected.
  • Vinyl Insulation: Vinyl-insulated barrel provides electrical isolation and added strain relief at the termination point.
  • Finish: Tin-plated finish for corrosion resistance and long-term connection reliability.
  • Flammability Rating: UL94V-0 rated insulation material for added safety margin.
  • Temperature Rating: CSA temperature rating of 105°C for demanding termination environments.

Certifications & Compliance

  • UL Listed
  • CSA Certified
  • RoHS Compliant
  • ARRA Compliant

Technical Specifications

  • Country of Origin: Mexico
  • CSA Temperature Rating: 105°C
  • Std Ctn Qty: 500
  • Std. Pkg. Qty.: 50
  • Mercury Content Indicator: N
  • Lead Content Indicator: N
  • Hazardous Material Flag: N
  • ARRA Compliant: Y

Typical Applications

  • Control Panel and Machine Wiring
  • Commercial and Industrial Electrical Terminations
  • Motor Control and Junction Box Connections
  • Panelboard and Load Center Wiring
  • General Purpose Wire Termination

Why Panduit?

Panduit's Pan-Term® PV1 Series ring terminals combine a brazed-seam copper barrel with tin-plated finishing and vinyl insulation to deliver dependable, code-compliant terminations across a full range of wire and stud sizes. Backed by UL Listing and CSA Certification with a 105°C temperature rating, these terminals are built for consistent performance in professional electrical and control wiring applications.

"

Manufacturer Resources

Product Specs

Mercury Content Indicator:
N
Lead Content Indicator:
N
UOM EA PK:
PK
Pallet Volume:
0.000000
California Pro65 Cancer:
No
Finish/Coating:
Tin-Plated
Country of Origin:
Mexico
Std Ctn Qty:
500
Product Type:
Ring Terminal
Pallet Quantity:
0
Flammability Rating:
UL94V-0
Std. Pkg. Qty.:
50
Hazardous Material Flag:
N
Restricted Use of Hazardous Substances:
N
Std. Pkg. UOM:
Piece
CSA Temperature Rating (°C):
105
Sub Brand:
Pan-Term®
Product Segment:
IEI
Any Reason Not to Sell:
N
Barrel Type:
Funnel Entry
REACH Status:
N
Base Material:
Copper
Seam Type:
Brazed
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Packaging Type:
Bottle
Insulation Material:
Vinyl
Pallet Weight:
0.0000
Department:
Electrical
Product Group:
Wiring Devices
Pack size (unit):
100
Product Material:
Copper
Product Finish:
Tin-Plated
Listing:
UL Listed
Standards:
CSA Certified
Product Subgroup:
Lugs & Terminals

Panduit PV14-38R-L – Frequently Asked Questions

1) What wire sizes and stud sizes do Panduit Pan-Term PV1 ring terminals come in?
Three combinations are offered in the Pan-Term PV1 vinyl-insulated ring terminals: PV14-38R-L for 16-14 AWG on a 3/8 inch stud, PV12-10HDR-L for 16-12 AWG on a #10 stud in a heavy duty build, and PV10-14RX-L for 12-10 AWG on a 1/4 inch stud with expanded insulation. Match the AWG to your conductor first, then confirm the stud or screw diameter at the terminal block or lug pad.
2) Are Panduit PV1 ring terminals UL Listed and CSA certified for commercial panel work?
Yes. The Pan-Term PV1 ring terminals carry UL Listing 587H E52164 and CSA Certification LR31212, and the insulation is UL94V-0 rated for flammability. That combination is what an inspector or a spec writer usually wants to see on control panel and machine wiring terminations.
3) What temperature can a Panduit Pan-Term PV1 vinyl ring terminal handle?
The CSA temperature rating is 105 degrees C. That covers most control cabinet, motor control, and junction box environments where conductors run warm, but it is a vinyl insulated terminal, so anything running above 105 C calls for a nylon or non-insulated terminal instead.
4) How are Panduit PV1 ring terminals packaged and what is the minimum I can buy?
Minimum order unit of measure is the piece, standard package quantity is 50 pieces, and the pack size on the bottle packaging is 100. Standard carton quantity is 500, which is the count a contractor stocking a panel shop typically orders against.
5) Are Panduit PV1 ring terminals RoHS compliant and free of lead and mercury for a government or healthcare project?
Yes on all three. The Pan-Term PV1 ring terminals are RoHS compliant, carry no lead or mercury content, are not flagged as hazardous material, and are ARRA compliant, which is the box federally funded and institutional jobs usually need checked. Country of origin is Mexico.
6) Which PV1 ring terminal should I use if the insulation on my wire is oversized?
PV10-14RX-L is the expanded insulation version, covering 12-10 AWG on a 1/4 inch stud. The expanded sleeve accepts conductors whose jacket outside diameter is larger than a standard vinyl barrel will take, which is common on some appliance and machine tool wire. For ordinary THHN in 16-14 AWG on a 3/8 inch stud, PV14-38R-L is the standard-insulation choice.
7) What is the difference between the heavy duty PV12-10HDR-L and a standard PV1 ring terminal?
PV12-10HDR-L is the heavy duty build, rated 16-12 AWG on a #10 stud. Heavy duty refers to a thicker barrel and tongue than the standard terminal of the same nominal size, which is what you want where the connection sees vibration or repeated removal, such as motor control and machine wiring. Electrically and environmentally it shares the PV1 family construction: copper base, tin plating, vinyl insulation, 105 C CSA rating.
8) Will a vinyl-insulated copper ring terminal hold up in a damp or corrosive industrial environment?
The barrel is copper with a tin-plated finish, which is the standard defense against oxidation at the crimp, and the vinyl sleeve covers the conductor entry. For wash-down or chemically aggressive areas, plating helps but does not seal the termination, so the usual practice is to add adhesive-lined heat shrink over the barrel or move to a fully sealed terminal.
9) What does the funnel entry barrel on a Pan-Term ring terminal actually do for the installer?
The barrel is a funnel entry design with a brazed seam. The flared mouth guides stranded conductors in without the strands fanning out and hanging up on the barrel lip, which matters when you are terminating hundreds of control wires. The brazed seam keeps the barrel from splitting open under crimp pressure.
