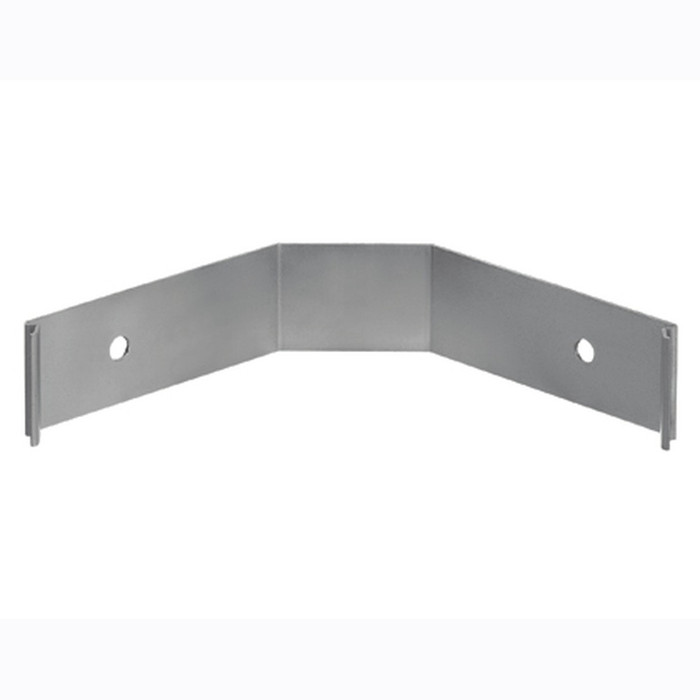

Panduit PanelMax Spring Steel Corner Wiring Duct Mounting Clip

Panduit PanelMax Spring Steel Corner Wiring Duct Mounting Clip

(No reviews yet) Write a Review

Model: CDCLP4

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit PanelMax Spring Steel Corner Wiring Duct Mounting Clip

The Panduit PanelMax quick mounting clip is designed for installing the CWD4 corner wiring duct in panel and enclosure wiring layouts. Constructed of low-carbon steel and spring steel, this clip is built for a fast, secure mount and is sold in a package of 16 pieces. The recommended fastener size is #10-32 x 1/2" (fastener not included), and the clip is rated for compatible duct width of 25.4mm. Panduit's PanelMax line is CE Compliant and RoHS Compliant, supporting code-conscious panel-building and industrial control applications.

Key Features

  • Application: Purpose-built for installation of corner wiring duct, specifically the CWD4.
  • Durable Construction: Low-carbon steel and spring steel construction for reliable spring-tension mounting.
  • Recommended Fastener: #10-32 x 1/2" screw size (fastener not included) for secure attachment.
  • Compatible Duct Width: 25.4mm, matched to CWD4 corner wiring duct.
  • Finish/Color: Silver finish for a clean panel appearance.
  • Packaging: Sold in a package of 16 pieces; minimum order quantity is 16 pieces.
  • Flammability Rating: UL94 V-0 rated material.

Certifications & Compliance

  • CE Compliant
  • RoHS Compliant

Technical Specifications

  • REACH Status: N
  • Std Carton Length In: 8.5
  • Std Carton Height In: 5.9
  • Std Package Length In: 8
  • Mercury Content Indicator: N
  • Std Carton Width In: 8.2
  • Std Ctn Qty: 80
  • Pallet Quantity: 0
  • Std Package Height In: .3
  • ARRA Compliant: Y
  • Std. Pkg. Qty.: 16
  • UOM EA PK: PK
  • Std Package Width In: 8
  • Hazardous Material Flag: N
  • Any Reason Not to Sell: N
  • Overall Width (In.): 1

Typical Applications

  • Panelboard and Enclosure Wiring Layouts
  • Corner Wiring Duct Installation (CWD4)
  • Industrial Control Panel Building
  • Commercial and Industrial Electrical Installations
  • Renovation and New Panel Construction

Why Panduit?

Panduit's PanelMax mounting clip combines low-carbon and spring steel construction with a UL94 V-0 flammability rating for dependable, code-conscious panel wiring. Backed by CE and RoHS compliance, it's built to support reliable, professional-grade corner wiring duct installations.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0476
Standard Package Weight Pounds:
1.0300
REACH Status:
N
Std. Pkg. UOM:
Piece
Std Carton Length In:
8.5
Screw Size:
#10-32 x 1/2"
Std Carton Height In:
5.9
Application:
Installation of Corner Wiring Duct
Std Package Length In:
8
Country of Origin:
United States
Standard Carton Volume Ft3:
0.2380
Std Package Length MM:
203.2
Mercury Content Indicator:
N
Std Carton Width In:
8.2
Sub Brand:
PanelMax™
Std Ctn Qty:
80
Product Segment:
IEI
Product Type:
Mounting Clip
GTIN Carton:
50074983645959
Std Carton Height MM:
149.86
Std Package Width MM:
203.2
Pallet Quantity:
0
Std Package Height In:
.3
Flammability Rating:
UL94 V-0
Standard Carton Weight Pounds:
5.1500
Std Package Height MM:
7.62
Min Order Qty:
16.0000
RoHS Compliant:
Compliant
GTIN Package:
00074983645954
Min. Order UOM:
Piece
ARRA Compliant:
Y
Std. Pkg. Qty.:
16
For Use With:
CWD4
Std Carton Length MM:
215.9
Std Carton Width MM:
208.28
UOM EA PK:
PK
Compatible Duct Width (mm):
25.4
Pallet Volume:
0.000000
Std Package Width In:
8
Hazardous Material Flag:
N
Any Reason Not to Sell:
N
Pallet Weight:
0.0000
Overall Width (In.):
1
Product Material:
Spring Steel
Product Color:
Silver
Department:
Electrical
Product Group:
Hangers, Supports & Fasteners
Product Subgroup:
Mounting Hardware

Panduit CDCLP4 – Frequently Asked Questions

1) What duct does the Panduit CDCLP4 mounting clip work with?
The CDCLP4 clip is made for Panduit CWD4 corner wiring duct, and it is matched to a 25.4 mm duct width. If your corner duct is a different width, this clip is the wrong part. It is not a general-purpose clip for straight wiring duct.
2) Do the Panduit CDCLP4 duct clips come with screws?
No screws are included. Panduit specifies a #10-32 x 1/2 inch fastener for mounting the clip, so order those separately along with whatever the panel backplate is tapped or drilled for.
3) How many Panduit CDCLP4 clips are in a package, and can I buy just one?
Single clips are not sold. The CDCLP4 ships as a 16 piece package, and 16 pieces is the minimum order. Full cartons hold 80 pieces if you are buying for a production panel shop.
4) Is the Panduit PanelMax corner duct clip rated for use inside an industrial control panel?
The material carries a UL94 V-0 flammability rating, which is the self-extinguishing rating panel builders normally look for on components inside an enclosure. The clip is also CE compliant and RoHS compliant, and it is made in the United States, which matters if you are filling a Buy American style spec.
5) What is the CDCLP4 clip made of, and will it hold the duct without hardware through the duct body?
It is a spring steel clip on a low carbon steel body, so it holds the CWD4 duct by spring tension once the clip is screwed to the panel. That is the point of it: you fasten the clip, then snap the duct in, instead of drilling and screwing through the duct floor for every run.
6) How wide is the Panduit CDCLP4 clip on the panel?
Overall width is 1 inch, and the finish is silver, so a row of them reads clean against a painted backpan. Space them along the corner duct run as the layout requires.
7) Is there any hazardous material or mercury in the Panduit CDCLP4 clips for our facility documentation?
No. The CDCLP4 is flagged as non-hazardous with no mercury content, and it is RoHS compliant. Package weight for the 16 piece pack is 1.03 pounds.
