Panduit PLM1M-C Pan-Ty Write-On Cable Tie, Nylon 6.6

Panduit PLM1M-C Pan-Ty Write-On Cable Tie, Nylon 6.6

(No reviews yet) Write a Review

Model: PLM1M-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$36.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
"

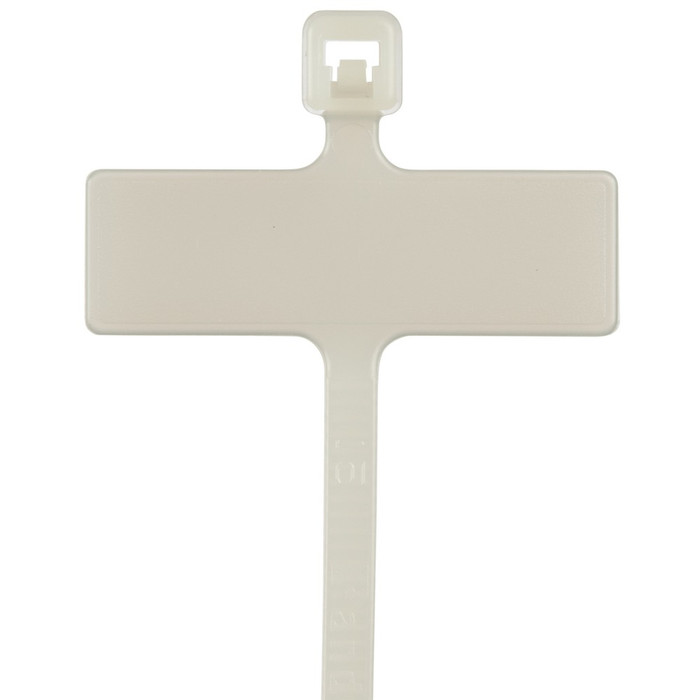

Panduit PLM1M-C Pan-Ty® Write-On Cable Tie, Nylon 6.6

The Panduit PLM1M-C Pan-Ty® Write-On Cable Tie is a wrap-style marker tie that fastens and identifies wire bundles in a single step. Molded from Nylon 6.6 in natural color for indoor use, this family of ties is available in 8\" and 9\" lengths and includes a .26 x .95\" (6.6 x 24.1mm) write-on marker area sized for Panduit permanent marker pens. A curved tip makes each tie easy to pick up from flat surfaces and speeds initial threading during installation. Every size in the line shares the same Nylon 6.6 construction, marker area, and 18 lb (80N) minimum loop tensile strength, so installers can standardize on one write-on tie platform across bundle diameters. Ties are CE Compliant and RoHS Compliant and ship in standard packages of 100 pieces.

Key Features

  • Available Lengths: Offered in 8\" and 9\" sizes to match a range of wire and cable bundle diameters.
  • Durable Construction: Nylon 6.6 (PA6.6) material in natural color for reliable indoor performance.
  • Write-On Marker Area: .26 x .95\" (6.6 x 24.1mm) surface compatible with Panduit permanent marker pens for on-site identification.
  • Curved Tip Design: Easy to pick up from flat surfaces and allows faster initial threading.
  • Loop Tensile Strength: 18 lb (80N) minimum loop tensile strength for secure bundle retention, consistent across all lengths in the family.
  • Bundle Range: 0.18\" (4.6mm) minimum bundle diameter accommodates a range of wire and cable bundles.
  • Operating Temperature: Rated from -70°F to 185°F (-60°C to 85°C) for demanding environments.
  • Standard Packaging: Supplied in packages of 100 pieces per length.

Certifications & Compliance

  • CE Compliant
  • RoHS Compliant

Technical Specifications

  • Available Sizes: 8\", 9\"
  • Maximum Operating Temperature (°F): 185
  • Minimum Operating Temperature (°F): -70
  • Maximum Operating Temperature (°C): 85
  • Minimum Operating Temperature (°C): -60
  • Write-On Area Height (mm): 6.6
  • Write-On Area (In.): 0.95W x 0.26H
  • Minimum Loop Tensile Strength (N): 80
  • Minimum Loop Tensile Strength (lb): 18
  • Minimum Bundle Diameter (mm): 4.6
  • Body Thickness (mm): 0.9
  • Body Width (mm): 2.5
  • Std. Pkg. Qty.: 100
  • UOM EA PK: PK
  • Country of Origin: MYS

Typical Applications

  • Wire and Cable Bundle Identification
  • Structured Cabling and Data Center Installations
  • Panel Wiring and Harness Labeling
  • Indoor Electrical and Communications Installations
  • General-Purpose Bundling and Marking Tasks

Why Panduit?

Panduit's PLM1M-C Pan-Ty® family combines Nylon 6.6 construction with a dedicated write-on marker area, giving installers a single tie platform that bundles and labels wiring at the same time across 8\" and 9\" lengths. With CE and RoHS compliance and a wide -70°F to 185°F operating range, these ties are built for consistent, code-conscious performance in professional indoor installations.

"

Manufacturer Resources

Product Specs

Maximum Operating Temperature (°F):
185
Std. Pkg. UOM:
Piece
Body Width (In.):
0.098
Write-On Area Height (mm):
6.6
Military Cross Reference Number:
MS3368-5-9E
Lead Content Indicator:
N
Mercury Content Indicator:
N
Product Segment:
IEI
Write-On Area Width (In.):
0.95
Minimum Loop Tensile Strength (N):
80
Minimum Operating Temperature (°F):
-70
Min Order Qty:
1,000.0000
Minimum Loop Tensile Strength (lb):
18
For Use With:
Bundles
Minimum Bundle Diameter (In.):
0.18
UOM EA PK:
PK
Minimum Bundle Diameter (mm):
4.6
Any Reason Not to Sell:
N
Write-On Area Width (mm):
24.1
Body Thickness (mm):
0.9
REACH Status:
N
Write-On Area (In.):
0.95W x 0.26H
California Pro65 Cancer:
No
Application:
General
Country of Origin:
Malaysia
Std Ctn Qty:
1000
Body Thickness (In.):
0.035
Product Type:
Cable Tie
Minimum Operating Temperature (°C):
-60
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
85
Std. Pkg. Qty.:
100
Marker Type:
Wrap
Environment:
Indoor
Write-On Area Height (In.):
0.26
Hazardous Material Flag:
N
Restricted Use of Hazardous Substances:
N
Body Width (mm):
2.5
Prop 65 Warning:
No
Product Material:
Nylon 6.6
Product Color:
Natural
Product Size:
9"
Product Size:
8"
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
100
Trade Size:
8" - 9"
Listing:
RoHS Compliant

Panduit PLM1M-C – Frequently Asked Questions

1) What is the difference between Panduit PLM1M-C and PLM2M-C?
They are the two sizes of the same Pan-Ty write-on marker tie. PLM1M-C is the 9 inch size and PLM2M-C is the 8 inch size. Material, natural color, and the write-on marker construction are the same on both, so pick by the bundle circumference you need to wrap.
2) Can I use these Panduit nylon marker ties outdoors or in an unheated space?
These are natural Nylon 6.6 ties rated for indoor use. Natural nylon has no UV stabilizer, so for exposed outdoor runs you want a weather-resistant black tie instead. Temperature range is -70F to 185F (-60C to 85C), so an unheated indoor space or a hot panel interior is within range.
3) How big is the write-on area on these Panduit marker ties, and what do I write with?
The marker flag gives you 0.95 in wide by 0.26 in high (24.1 x 6.6mm) of writing surface, sized for Panduit permanent marker pens. That is enough for a short circuit ID or cable number, not a full description. It is a wrap-style marker, so the flag wraps the bundle rather than standing off as a tab.
4) How are Panduit PLM write-on cable ties packaged and what is the minimum I can order?
Standard package is 100 pieces, with 1,000 pieces to the standard carton. Minimum order quantity is 1,000 pieces, so plan on carton quantity for a job rather than a single bag.
5) Do Panduit Pan-Ty write-on ties meet RoHS and federal buy-American style requirements for a government job?
The Pan-Ty write-on tie is RoHS Compliant, CE Compliant, and flagged ARRA Compliant. No lead or mercury content is indicated, there is no Prop 65 warning, and it is not classed as hazardous material. Country of origin is Malaysia.
6) Is there a military part number cross reference for the Panduit PLM write-on cable tie?
Yes. The military cross reference is MS3368-5-9E. Useful if you are buying against a mil-spec line item and need to show equivalence.
7) Do I still need separate labels if I use Panduit write-on marker ties in a data cabinet?
No separate label carrier is needed. The tie bundles and identifies in one step, with the marker flag built into the tie body, which is why it gets used for structured cabling, panel wiring, and harness labeling. You do need a permanent marker pen to write on it, since nothing is pre-printed.
