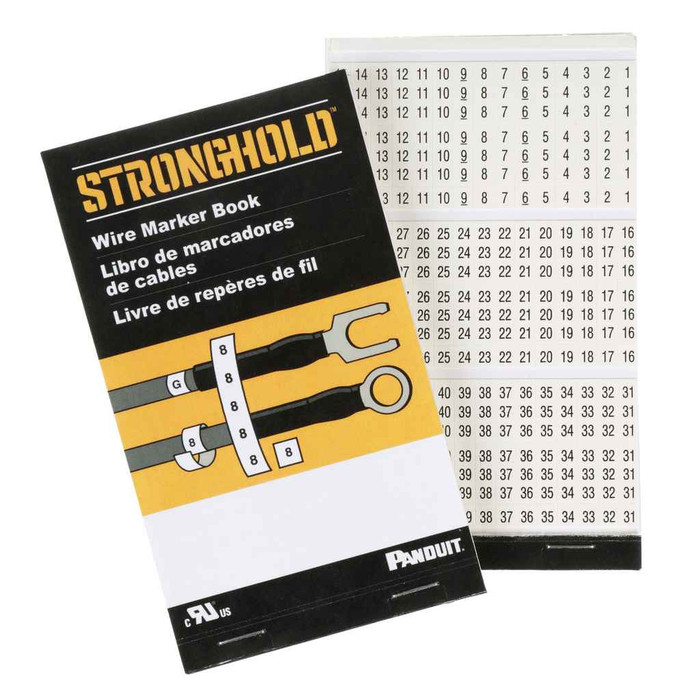

Panduit StrongHold PCMB Series Pre-Printed Wire Marker Book, Vinyl Cloth
Model: PAN-PCMB
Panduit StrongHold™ PCMB Series Pre-Printed Wire Marker Book, Vinyl ClothThe Panduit StrongHold™ PCMB Series Pre-Printed Wire Marker Book is a pocket-sized, vinyl cloth wire marker book built for...
Panduit
Starting at
$43.59
Panduit PCMB-3 StrongHold Pre-Printed Wire Marker Book, Vinyl, Numbers 1-45
The Panduit PCMB-3 StrongHold Pre-Printed Wire Marker Book delivers a complete, professional-grade wire identification system with 100 durable vinyl markers pre-printed with numbers 1 through 45. Built for cables up to 0.38" (9.7mm) in diameter, this marker book is rated for continuous operation from -40°F to 170°F, making it suitable for both indoor electrical panels and demanding outdoor or industrial environments. Every marker is RoHS compliant, giving electrical and telecommunications professionals a reliable, code-friendly way to keep wiring organized and easy to trace.
Key Features
- Maximum Cable Diameter: Accommodates cables up to 0.38" (9.7mm) for standard wire gauges used in electrical and telecom installations.
- Durable Vinyl Construction: Vinyl material resists wear, chemicals, and environmental exposure for long-lasting legibility.
- Pre-Printed Numbers 1-45: Eliminates manual marking time while providing clear, systematic wire identification.
- 100 Vinyl Markers: Delivers 10 markers per legend across the full 1-45 number range for comprehensive labeling coverage.
- Marker Dimensions: Each marker measures 1.38" (35.1mm) in length by 0.22" (5.6mm) in width for a clean, uniform fit.
- Temperature Range -40°F to 170°F: Ensures reliable performance from cold storage to heated industrial environments.
- RoHS Compliant: Meets environmental standards for safe use in commercial and industrial applications.
Certifications & Compliance
- RoHS Compliant
Technical Specifications
- Any Reason Not To Sell: N
- Arra Compliant: Y
- Hazardous Material Flag: N
- Marker Width Mm: 5.6
- Maximum Cable Diameter Mm: 9.7
- Maximum Operating Temperature C: 77
- Maximum Operating Temperature F: 170
- Mercury Content Indicator: N
- Min Order Qty: 10
- Minimum Operating Temperature C: -40
- Minimum Operating Temperature F: -40
- Number Of Markers: 100
- Number Of Markers Per Legend: 10
- Pallet Weight: 348
- Product Segment: IEI
- Reach Status: N
- Standard Carton Weight Pounds: 1.2
- Std Carton Height In: 4.8
- Std Carton Width In: 6.5
- Std Ctn Qty: 10
- Std Package Length In: 6.2
- Std Package Width In: 3.8
- Std Pkg Qty: 1
- Sub Brand: StrongHold™
- Uom Ea Pk: EA
Typical Applications
- Electrical Panel Wire Identification
- Telecommunications Cable Management
- Industrial Control System Wiring
- Commercial Building Electrical Systems
- Data Center Cable Organization
- Maintenance and Retrofit Projects
Why Panduit?
Panduit StrongHold wire markers combine durable vinyl construction with RoHS compliant materials and extreme temperature performance from -40°F to 170°F, standing up to the demands of professional electrical and telecommunications work. The pre-printed 1-45 numbering system and 100-marker count give installers a dependable, ready-to-use identification solution backed by Panduit's reputation in cable management.
Manufacturer Resources
Product Specs
- Product Type:
- Pre-Printed Wire Marker Book
- Std Carton Length In:
- 10.3
- Std Ctn Qty:
- 10
- Department:
- Electrical
- Sub Brand:
- StrongHold™
- Standard Package Volume Ft3:
- 0.0133
- Mercury Content Indicator:
- N
- Std Carton Height In:
- 4.8
- Product Group:
- Cable Management & Identification
- Product Segment:
- IEI
- Std Carton Width In:
- 6.5
- Product Material:
- Vinyl
- Standard Carton Volume Ft3:
- 0.1329
- Product Subgroup:
- Wire Markers & Labels
Panduit PCMB-3 – Frequently Asked Questions
1) What size wire will the Panduit PCMB wire marker book fit?
The StrongHold PCMB vinyl cloth markers wrap cables up to 0.38 inch (9.7 mm) outside diameter, which covers the common building wire and telecom conductor sizes found in panels and control cabinets. Anything larger than 0.38 inch needs a bigger marker format, since the 1.38 inch long by 0.22 inch wide marker won't close around it.
2) What is the difference between the Panduit PCMB-3 and PCMB-10 marker books?
They are the same vinyl marker book with different pre-printed legend sets. PCMB-3 carries numbers 1 through 45, 100 markers total at 10 per legend. PCMB-10 is the other legend set offered in the series. Pick the book by which legend range you need to label; the material, cable capacity and temperature rating don't change between them.
3) Will these wire markers hold up in an unheated outdoor enclosure or a cold storage room?
Yes. The PCMB vinyl markers are rated for continuous service from -40 F to 170 F (-40 C to 77 C), so an unheated outdoor disconnect, a rooftop unit enclosure or a freezer room is inside the range. The vinyl resists chemicals and weather exposure, which is why it stays legible where paper or plain adhesive labels curl off.
4) How many of each number do I get in a PCMB-3 book, and is that enough for a panel?
The PCMB-3 book holds 100 markers, 10 of each legend across numbers 1 through 45. For a typical branch panel or control cabinet where each circuit number appears once at each end, that covers roughly 45 numbered conductors marked twice with spares left over. Repetitive labeling where the same number appears many times will burn through a single legend fast.
5) Are Panduit StrongHold PCMB wire markers RoHS compliant and ARRA compliant for a government or institutional job?
Both. The StrongHold PCMB markers are RoHS compliant and flagged ARRA compliant, with no mercury content and no hazardous material designation. That covers the usual submittal questions on federally funded, healthcare and education work.
6) Should I use a pre-printed wire marker book or a print-on-demand label system?
A pre-printed book like the PCMB is the faster choice when you are numbering conductors sequentially and don't need custom text. Numbers are already printed, so there is no printer, ribbon or cartridge on the truck and nothing to fail in a cold mechanical room. Go to a printed-label system instead when you need circuit descriptions, equipment names or non-sequential identifiers, since the PCMB books only carry fixed numeric legends.
7) What is the carton size and weight for a case of Panduit PCMB marker books?
A standard carton of 10 books measures 10.3 by 6.5 by 4.8 inches, about 0.1329 cubic feet, and weighs 1.2 pounds. Each individual book package is 6.2 by 3.8 inches. Useful if you are staging kit boxes or shipping to multiple job sites.
