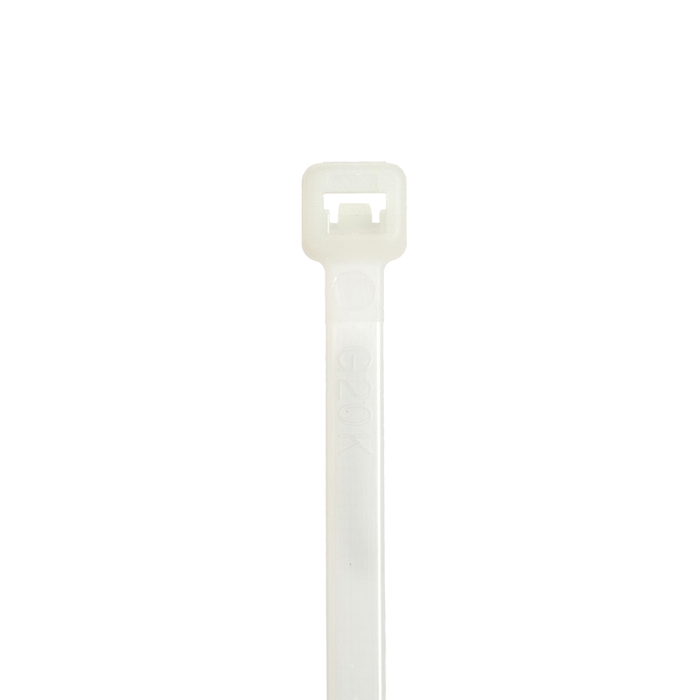

Panduit StrongHold™ S10-50-C Nylon Cable Tie, Plenum Rated

Panduit StrongHold™ S10-50-C Nylon Cable Tie, Plenum Rated

(No reviews yet) Write a Review

Model: S10-50-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit StrongHold™ S10-50-C Nylon Cable Tie, Plenum Rated

The Panduit StrongHold™ S10-50-C is a 9.84" (250mm) cable tie built from Nylon 6.6 for economical, general-purpose bundling on commercial construction projects. It is AH-2 Plenum rated and UL 62275 Compliant (Type 2, 21), making it suitable for wiring and cable management in air-handling spaces. Supplied in natural color and packaged 100 pieces per bag, it gives contractors a reliable, code-compliant tie for everyday bundling tasks.

Key Features

  • Overall Length: 9.84" (250mm) for standard cable and wire bundling.
  • Durable Construction: Nylon 6.6 body for reliable strength and longevity.
  • Plenum Rated: AH-2 Plenum rated for use in air-handling spaces per UL 62275 (Type 2, 21).
  • Loop Tensile Strength: Minimum loop tensile strength of 222N (50 lb) for secure bundle retention.
  • Bundle Capacity: Maximum bundle diameter of 2.35" (60mm), minimum bundle diameter of 0.12".
  • Operating Temperature: Rated from -40°F (-40°C) to 185°F (85°C) for demanding environments.
  • Finish: Natural color, body thickness of 1.3mm (0.051") and body width of 0.19".
  • Packaging: Supplied 100 pieces per standard package for job-site convenience.

Certifications & Compliance

  • UL 62275 Compliant (Type 2, 21)
  • RoHS Compliant

Technical Specifications

  • Maximum Operating Temperature (°F): 185
  • Body Thickness (mm): 1.3
  • REACH Status: N
  • California Pro65 Cancer: No
  • Overall Length (mm): 250
  • Mercury Content Indicator: N
  • Std Carton Width In: 8.1
  • Product Segment: IEI
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Operating Temperature (°C): -40
  • Minimum Operating Temperature (°F): -40
  • Maximum Bundle Diameter (mm): 60
  • ARRA Compliant: Y
  • Maximum Operating Temperature (°C): 85
  • Std. Pkg. Qty.: 100
  • Minimum Loop Tensile Strength (lb): 50
  • Minimum Bundle Diameter (In.): 0.12
  • Std Carton Length MM: 416.56

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Cable and Wire Bundle Management
  • Plenum Space Wiring Installations
  • General-Purpose Construction Wiring
  • Data Center and Structured Cabling Organization

Why Panduit?

Panduit's StrongHold™ S10-50-C cable tie combines a durable Nylon 6.6 build with AH-2 Plenum rating and UL 62275 compliance, giving contractors a dependable, code-compliant tie for commercial and general-purpose bundling. RoHS compliance further supports responsible sourcing for professional electrical projects.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0269
Maximum Operating Temperature (°F):
185
Body Thickness (mm):
1.3
Standard Package Weight Pounds:
0.3770
REACH Status:
N
Std. Pkg. UOM:
Piece
Std Carton Length In:
16.4
California Pro65 Cancer:
No
Std Carton Height In:
4.75
Body Width (In.):
0.19
Std Package Length In:
12.45
Overall Length (mm):
250
Country of Origin:
China, Thailand
Standard Carton Volume Ft3:
0.2693
Std Package Length MM:
316.23
Mercury Content Indicator:
N
Std Carton Width In:
8.1
Sub Brand:
StrongHold™
Product Color:
Natural
Maximum Bundle Diameter (In.):
2.35
Std Ctn Qty:
1000
Product Segment:
IEI
Body Thickness (In.):
0.051
Product Type:
Cable Tie
GTIN Carton:
50613056258032
Std Carton Height MM:
120.65
Minimum Loop Tensile Strength (N):
222
Std Package Width MM:
132.08
Pallet Quantity:
120,000
Std Package Height In:
1.55
Minimum Operating Temperature (°C):
-40
Standard Carton Weight Pounds:
3.7700
Minimum Operating Temperature (°F):
-40
Std Package Height MM:
39.37
Min Order Qty:
1,000.0000
Maximum Bundle Diameter (mm):
60
Material Description:
Nylon 6.6
RoHS Compliant:
Compliant
GTIN Package:
00613056258037
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
85
Std. Pkg. Qty.:
100
Minimum Loop Tensile Strength (lb):
50
Overall Length (In.):
9.84
Environment:
Plenum
Product Material:
Nylon 6.6
Minimum Bundle Diameter (In.):
0.12
Std Carton Length MM:
416.56
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
100

Panduit S10-50-C – Frequently Asked Questions

1) Can the Panduit StrongHold S10-50-C cable tie be used in a plenum ceiling space?
Yes. The S10-50-C is rated for plenum environments and is UL 62275 Compliant (Type 2, 21), so it can be used to bundle wiring in air-handling spaces. That is the reason to spec it over a general-purpose tie in a return-air ceiling.
2) What size cable bundle will a 9.84 inch Panduit S10-50-C tie handle?
The tie is 9.84 inches (250mm) long and wraps bundles from 0.12 inch up to 2.35 inches (60mm) in diameter. If your bundle is larger than 2.35 inches, step up to a longer tie rather than trying to chain two together.
3) Will these nylon cable ties hold up outdoors or in an unconditioned mechanical room?
Operating range on the StrongHold nylon tie runs from -40F to 185F (-40C to 85C), so freezer rooms, unheated attics and hot mechanical spaces are all inside the window. The body is Nylon 6.6 in natural color, which is an indoor/uncolored material rather than a UV-stabilized black tie, so for sustained direct sunlight you want a weather-resistant black tie instead.
4) How many Panduit S10-50-C ties come in a bag, and what is the carton and order quantity?
Ties are bagged 100 pieces. A standard carton holds 1,000 pieces and weighs 3.77 lb, and minimum order quantity is 1,000 pieces. A full pallet runs 120,000 pieces, which is the number to work from if you are stocking a warehouse rather than a truck.
5) Do these Panduit ties meet RoHS and Buy American / ARRA requirements for a public job?
The StrongHold tie is RoHS Compliant and flagged ARRA Compliant, with no mercury content and no California Prop 65 cancer listing. Country of origin is China or Thailand, which matters if your contract carries a domestic-content clause rather than an ARRA clause.
6) What is the strap width and thickness on the S10-50-C, and will it pass through a standard tie mount?
Strap body width is 0.19 inch with a thickness of 0.051 inch (1.3mm). That is a mid-width strap, so check that the slot on your adhesive mounts, cable clamps or push mounts accepts a 0.19 inch strap before you buy the mounts to match.
7) Is there a longer Panduit StrongHold tie if 9.84 inches is too short?
Yes. Alongside the 9.84 inch S10-50-C, the StrongHold line runs to the longer S14-120-L for larger bundles. Use the S10-50-C where the bundle tops out around 2.35 inches and move to the longer tie above that.
