Square D NQ/NF Panelboard Encl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$267.64

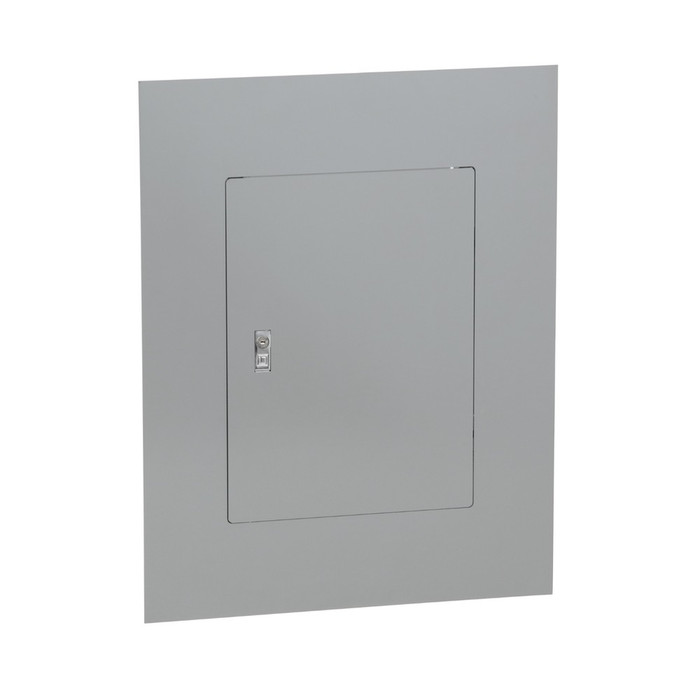

Square D NQ/NF Panelboard Enclosure Cover, Type 1 Flush, Steel

Square D NQ/NF Panelboard Enclosure Cover, Type 1 Flush, Steel

(No reviews yet) Write a Review

Model: NC26F

In Stock (leaves warehouse same day if ordered before 3pm ET)

$267.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D NQ/NF Panelboard Enclosure Cover, Type 1 Flush, Steel

The Square D NQ/NF Panelboard Enclosure Cover is a flush-mount, Type 1 steel cover engineered for NQ and NF panelboard enclosures used in commercial buildings, industrial buildings, data centers, stadiums, and offices. Finished in gray steel and cULus listed, this cover is sized to match specific NQ/NF enclosure boxes and pairs with panelboards rated for a line current of 125A. Available enclosures span NEMA Type 1, 2, 3R, 4, 4X, 5, and 12, giving contractors and OEMs flexible options for indoor and outdoor installations.

Key Features

  • Durable Construction: Steel enclosure material in gray finish for a rigid, corrosion-resistant panelboard cover.
  • Mounting Style: Flush design for a clean, low-profile installation against the wall surface.
  • Enclosure Rating: Type 1 construction, with the NQ/NF platform also offered in NEMA Type 2, 3R, 4, 4X, 5, and 12 for broader environmental needs.
  • Amperage Rating: Designed for panelboard systems with a 125A line rated current.
  • Modular Design: Modular construction allows for easy assembly or modification on the job site.
  • Accessory Compatibility: Accessories and replacement parts allow design flexibility and maximize job productivity.
  • Tightening Torque: Cover torque specification of 10...12 lb.in for proper installation.

Certifications & Compliance

  • cULus Listed
  • RoHS Exemption Information on File
  • ROHS Eur Compliant
  • Mercury Free
  • Toxic Heavy Metal Free

Technical Specifications

  • Toxic Heavy Metal Free: Yes
  • Warranty: 18 months
  • Take Back: No
  • Tier: 1
  • Returnability: Yes
  • Warranty Period: 18 months
  • H And D Subrange: COM
  • Sustainable Packaging: No
  • Mercury Free: Yes
  • Packaging Without Single Use Plastic: No
  • Tier Id: 1
  • ROHS Eur In Scope: No
  • Recycled Metal Content At Cr Level: 0 %
  • Legacy WEEE Scope: Out
  • Packaging Made With Recycled Cardboard: No
  • China ROHS Label: 1
  • With Recycled Cardboard: No
  • Line Rated Current: 125 A
  • Energy Efficiency Optimized: False
  • Without Single Use Plastic: No
  • ROHS Eur Status: Compliant
  • ROHS Exemption Information: Yes

Typical Applications

  • Commercial Building Electrical Distribution
  • Industrial Building Panelboard Systems
  • Data Center Power Distribution
  • Stadium and Large Venue Electrical Infrastructure
  • Office Building Panelboard Installations

Why Square D?

Square D backs the NQ/NF panelboard platform with cULus-listed, steel enclosure covers built for reliable, code-compliant performance across commercial and industrial applications. Modular construction and a broad accessory ecosystem give contractors and OEMs the flexibility to assemble, modify, and maintain NQ/NF panelboard systems with confidence.

Manufacturer Resources

Product Specs

Product Type:
Panel Cover & Trim
Configuration:
Flush Mount
Listing:
cULus
Amperage Rating:
125A
Country Of Origin:
United States
Product Material:
Steel
Product Color:
Gray
Department:
Electrical
Product Group:
Power Distribution
Product Subgroup:
Panelboards & Load Centers
Product Height:
26 in
Product Width:
20 in

Square D NC26F – Frequently Asked Questions

1) What size panelboard enclosure does the Square D NC26F flush cover fit?
The NC26F cover measures 26 inches by 20 inches, so it is sized for an NQ or NF enclosure box with that same 26 x 20 inch opening. Square D covers are box-specific, not universal, so measure the existing box height and width before ordering. If your box is a different height, you need the matching NC cover for that size instead.
2) Is the Square D NC26F a flush cover or a surface mount cover?
Flush mount. The NC26F sits against the wall surface for a low-profile finish, which is what you want when the NQ or NF box is recessed into a finished wall. For a box mounted on the face of the wall you need a surface-style front, not this one.
3) Can I use the NC26F cover on a 225A or 400A Square D panelboard?
No. The NC26F is matched to NQ/NF panelboard systems with a 125A line rated current. Higher-ampere NQ/NF assemblies use larger boxes and different front sizes, so the cover will not line up.
4) Is the Square D NQ/NF flush cover UL listed for a commercial inspection?
It is cULus listed, which covers both US and Canadian requirements, and the cover is Type 1 construction for indoor dry locations. Type 1 is not rated for washdown, outdoor, or dusty areas; the NQ/NF platform is also offered in NEMA Type 2, 3R, 4, 4X, 5 and 12 enclosures for those environments.
5) If the panelboard box is surface mounted rather than recessed, is the Square D NC26F cover still the right choice?
No. The NC26F is a flush mount cover, sized 26 in high by 20 in wide, so it is intended to sit against the wall surface over a recessed box. For a surface mounted box, the ABB AF A-Series surface mount panelboard front cover is built for that mounting arrangement instead. Match the cover mounting style to how the enclosure box itself was set in the wall.
6) What is the closest flush panelboard front to the Square D NC26F from another manufacturer?
The ABB AF-F is an AF Series RLP unassembled flush panelboard front, which is the same flush front concept. The difference in practice is that the NC26F is a steel cover matched to Square D NQ and NF enclosure boxes and ships as a finished gray cover, while the AF-F is supplied unassembled for the ABB RLP platform. Panelboard fronts are not interchangeable across manufacturers, so the box line decides the cover.
7) What torque should the NQ/NF panel cover screws be tightened to?
10 to 12 lb-in on the cover fasteners. Going past that can distort a flush steel front or strip the fastening points, and under-tightening leaves the trim sitting off the wall line.
8) I need a surface mount panelboard front instead of flush. What are my options?
The NC26F is flush only. If your box is surface mounted, look at a surface-style front for your panel brand, for example the ABB AF A-Series surface mount panelboard front cover for ABB A-Series panels. For a Square D NQ/NF box, order the surface version of the NC front in your box size rather than this flush one.
9) Does the NC26F include the panelboard box or interior?
No. The NC26F is the front cover and trim only. The enclosure box, the panelboard interior, breakers, and the directory card are all separate orders; this part is what you buy when the existing front is damaged, missing, or you are converting a job to a flush finish.
10) Is the Eaton P475810 sub-feed breaker cover an alternative to the Square D NC26F?
No. The Eaton P475810 is a Pow-R-Xpress sub-feed breaker cover for a 600A panel bottom, meaning it closes off a sub-feed breaker area within that panel rather than serving as the full panelboard front. The NC26F is the Type 1 flush enclosure cover for an NQ or NF box on a system with a 125A line rated current. They solve different openings and do not substitute for each other.
11) We standardize on ABB RLP panels in some buildings - what cover goes there instead of the Square D NC26F?
For ABB RLP panels, the ABB AF-55FD RLP Series panelboard front trim cover is the front built for that series. The NC26F is matched to Square D NQ and NF enclosure boxes and is cULus listed as a Type 1 flush steel cover. If a facility runs both platforms, keep the covers specified by panel line rather than by size alone, since the front mounts to the box hardware pattern.
