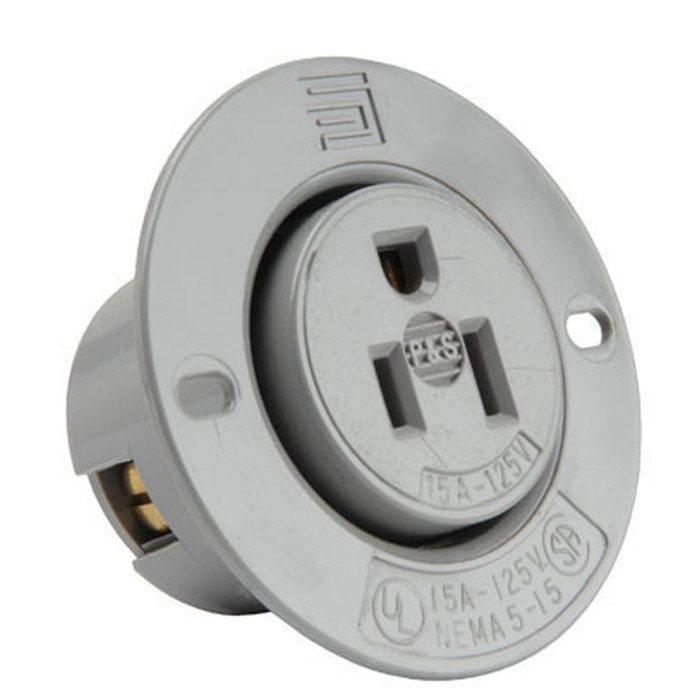

Pass & Seymour 15A 125V Straight Blade Flanged Outlet, Gray

Pass & Seymour 15A 125V Straight Blade Flanged Outlet, Gray

(No reviews yet) Write a Review

Model: 5279-SS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$41.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour 15A 125V Straight Blade Flanged Outlet, Gray

The Pass & Seymour Straight Blade Flanged Outlet is a 2-Pole 3-Wire device rated 15A 125V, built for reliable power connections in commercial and industrial equipment applications. Molded in Gray from all-thermoplastic construction, this flanged outlet resists impact and chemical exposure while its NEMA configuration is molded directly on the flange for easy field identification. It is UL Listed, cUL Listed, and CSA Listed for use where recognized safety compliance is required.

Key Features

  • Electrical Rating: 15A 125V, 2-Pole 3-Wire straight blade configuration for standard power connections.
  • Durable Construction: All-thermoplastic housing provides excellent impact and chemical resistance for demanding environments.
  • Easy Identification: NEMA configuration molded directly on the flange for quick field identification during installation and service.
  • Color Option: Available in Gray, offering a clean, neutral finish suited to a wide range of equipment and enclosures.
  • Flanged Design: Straight blade flanged outlet configuration designed for panel or equipment mounting applications.

Certifications & Compliance

  • UL Listed
  • cUL Listed
  • CSA Listed

Technical Specifications

  • Country of Origin: Mexico
  • Product Line: Pass & Seymour
  • Color: Gray
  • Packaging: 5 EA

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Equipment and Panel Power Connections
  • Straight Blade Power Distribution Circuits
  • Facility Maintenance and Retrofit Projects
  • New Construction Electrical Wiring

Why Pass & Seymour?

Pass & Seymour engineers this flanged outlet with all-thermoplastic construction for impact and chemical resistance, plus a molded-in NEMA configuration that speeds up field identification and installation. Backed by UL, cUL, and CSA listings, it delivers the code-compliant, dependable performance electrical professionals expect from Pass & Seymour devices.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
PASS-20260820
Product Type:
Flanged Outlet
Voltage Rating:
125V
Amperage Rating:
15A
Configuration:
2-Pole 3-Wire
Listing:
cULus
Standards:
CSA
Product Material:
Thermoplastic
Product Color:
Gray
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Pass & Seymour 5279-SS – Frequently Asked Questions

1) What is a flanged outlet like the Pass & Seymour 5279-SS used for, and how is it different from a standard wall receptacle?
A flanged outlet is a power inlet/outlet device that mounts to the surface of equipment, a panel, or an enclosure rather than into a wall box behind a cover plate. The Pass & Seymour 5279-SS is a 15A 125V, 2-pole 3-wire straight blade flanged outlet in gray thermoplastic. Use it where a cord-and-plug connection has to land on a machine, generator panel, or equipment housing. If you need a device in a standard wall box with a wallplate, a straight blade duplex receptacle is the right part instead.
2) Will the 5279-SS flanged outlet accept a standard 15A 125V three-prong plug?
Yes. It's a 2-pole 3-wire straight blade device rated 15A at 125V, so it takes the standard grounding plug used on ordinary 120V equipment cords. The NEMA configuration is molded right into the flange, so you can confirm the pattern on the part itself before you wire it in.
3) Is the Pass & Seymour 5279-SS outlet listed for use in Canada as well as the US?
It carries cULus listing and meets CSA standards, so it's recognized for both US and Canadian installations. That matters on spec work where the drawing calls for a listed device on both sides of the border.
4) Can this 15A flanged outlet hold up in a plant or wash-down maintenance area?
The housing is all-thermoplastic, which gives it impact and chemical resistance, and that's the reason it gets specified on industrial equipment rather than a device with a thin phenolic or metal face. It is not described as a weatherproof or sealed device, so for exposed wet locations you'd pair it with an appropriate enclosure or cover.
5) I need the mounting dimensions and screw spacing for the 5279-SS flange. Where do I get them?
Pass & Seymour publishes a spec sheet for the 5279-SS that carries the dimensional and mounting detail you need to cut and drill the panel. Pull that document before you lay out the opening, since flange footprints differ between straight blade families.
6) Does the Pass & Seymour 5279-SS come in anything other than gray?
Gray is the color this device is molded in, under part number 5279-SS. Gray is the usual industrial-equipment color for straight blade flanged outlets, so it blends with most machine enclosures and panel faces.
7) How many Pass & Seymour 5279-SS outlets come in a pack?
The 5279-SS flanged outlet is packaged 5 each, which is worth knowing if you're buying for a single equipment install versus standardizing a fleet of machines. Country of origin is Mexico.
