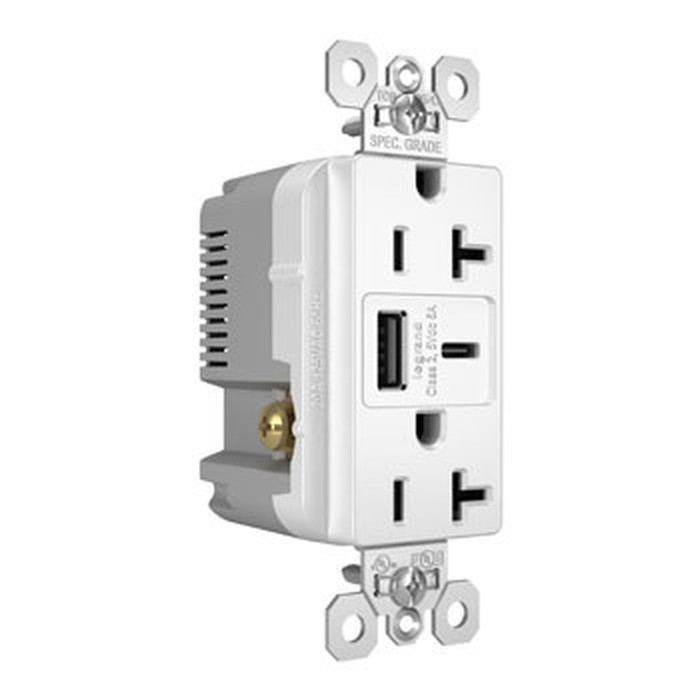

Pass & Seymour 15W Spec Grade USB Charging Outlet, Type A/C, 20A Tamper-Resistant, White

Pass & Seymour 15W Spec Grade USB Charging Outlet, Type A/C, 20A Tamper-Resistant, White

(No reviews yet) Write a Review

Model: TR20USBAC6W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$71.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour 15W Spec Grade USB Charging Outlet, Type A/C, 20A Tamper-Resistant, White

The Pass & Seymour 15W Spec Grade USB Charging Outlet combines a standard 20A 125V tamper-resistant receptacle with two built-in 6A fast-charging USB ports — one Type A and one Type C — so outlets can power devices and charge phones or tablets at the same time. Finished in white with a durable, high-impact resistant nylon face, this spec-grade device is built for reliable daily use in residential and light commercial settings while meeting tamper-resistant code requirements.

Key Features

  • Dual USB Charging Ports: Integrated Type A and Type C USB ports each deliver up to 6A of fast-charging power for phones, tablets, and other USB-powered devices.
  • 15W USB Output: Rated for efficient device charging directly from the receptacle, eliminating the need for separate wall-charger blocks.
  • 20A Tamper-Resistant Receptacle: Standard 20A 125V tamper-resistant receptacle openings help meet code requirements while protecting against foreign object insertion.
  • Spec Grade Construction: Built to spec-grade standards for consistent performance in demanding residential and commercial applications.
  • Durable Construction: High-impact resistant nylon face resists cracking and wear from everyday jobsite and household use.
  • Finish: Matte white finish blends cleanly with standard wall plates and decor.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Kitchen and Bathroom Countertop Outlets
  • Home Office and Workstation Charging Stations
  • Bedroom and Living Area Device Charging
  • Hospitality and Guest Room Installations
  • Commercial Break Rooms and Reception Areas
  • Renovation and New Construction Electrical Upgrades

Why Pass & Seymour?

Pass & Seymour builds spec-grade devices with high-impact resistant nylon construction for dependable, code-compliant performance in both new installations and renovations. This 20A tamper-resistant USB charging outlet gives electrical contractors and homeowners a convenient way to add fast USB charging to any room without sacrificing the durability and reliability expected from professional-grade Pass & Seymour electrical devices.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
PASS-20260820
Product Type:
USB Charging Receptacle
Voltage Rating:
125V
Amperage Rating:
20A
Product Finish:
Matte
Product Material:
Nylon
Product Color:
White
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Pass & Seymour TR20USBAC6W – Frequently Asked Questions

1) Can the Pass & Seymour TR20USBAC6W USB outlet be wired on a 20-amp kitchen circuit?
Yes. The TR20USBAC6W is a 20A, 125V device, so it suits the 20-amp small-appliance branch circuits required for kitchen and similar countertop locations. Its receptacle openings are tamper-resistant, which is what code calls for in dwelling-unit areas. A 15A-only USB receptacle should not be used where a 20A receptacle is specified.
2) What is the closest equivalent to the Pass & Seymour TR20USBAC6W from another brand?
The Leviton T5633 is the nearest peer: a tamper-resistant Decora combination receptacle/USB charger rated 15A 125V on a NEMA 5-15R, built to specification grade. The TR20USBAC6W is the Pass & Seymour spec grade version with a 20A 125V tamper-resistant receptacle and both a Type A and a Type C USB port. If the circuit and the drawing call for a 20A device, the Pass & Seymour part matches that rating; if a 15A 5-15R device is acceptable, the T5633 is the comparable spec grade choice.
3) I need more than two charging ports at a desk - what should I use instead of the TR20USBAC6W?
Look at the Leviton USB4P, a Decora series 4-port USB Type-A charging receptacle rated 4.2A at 125V. It devotes the whole device to four Type-A ports, so it charges four cables at one workstation but gives up the 125V power receptacle. The Pass & Seymour TR20USBAC6W keeps a 20A 125V tamper-resistant receptacle alongside one Type A and one Type C port, so a lamp or monitor can still plug in at the same opening. Many offices use one of each on a two-gang box.
4) Will the Leviton USB4P work as a drop-in substitute for the Pass & Seymour TR20USBAC6W?
No - they are not interchangeable in function. The Leviton USB4P is a 4-port USB Type-A charging receptacle at 4.2A-125V, meaning all four ports are Type A and there is no power receptacle in the device. The TR20USBAC6W is a combination device: a 20A 125V tamper-resistant receptacle plus one Type A and one Type C port. If the opening has to serve a corded appliance or the circuit requires a tamper-resistant receptacle at that location, the USB4P does not cover it.
5) Does the Pass & Seymour TR20USBAC6W charge a phone and run an appliance at the same time?
It does. The device pairs a standard 20A 125V tamper-resistant duplex receptacle with two separate USB ports, one Type A and one Type C, so the outlet slots stay free for a lamp or small appliance while a phone or tablet charges off the USB side.
6) Will the TR20USBAC6W USB outlet fast charge a USB-C phone or tablet?
The Type A and Type C ports are each rated up to 6A of fast-charging output, with 15W total USB output from the device. That handles phones and most tablets without a separate wall-charger block. It is not a high-wattage USB-C PD laptop charger.
7) Will this white USB outlet match my existing wall plates?
The face is white with a matte finish, so it sits with standard white device plates and trim. It uses the standard duplex receptacle opening pattern rather than a Decora rocker opening, so a Decora-style plate will not fit it.
8) I need more than two USB ports at a workstation. Is there a better option than this Type A/C outlet?
The TR20USBAC6W gives you two ports, one Type A and one Type C. For a bench or desk where several Type A devices charge at once, the Leviton Smart Chip 4-Port USB Type-A charging receptacle delivers 4.2A at 125V across four Type A ports, but it has no Type C port and no 20A duplex outlet, so it will not replace a required receptacle.
9) Can I swap an older USB receptacle that only has Type A ports for this one?
Yes, if the existing device is a standard duplex-opening receptacle on a 20A 125V circuit. The TR20USBAC6W replaces it one-for-one and adds a Type C port alongside the Type A, which is what newer phones and tablets use. Comparable Type A only devices include the Leviton Smart Chip 4-port Type A charging receptacle.
10) Is there a lower-cost residential-grade USB outlet instead of the spec grade Pass & Seymour TR20USBAC6W?
Yes. The Leviton T5632 is a tamper-resistant Decora duplex receptacle with USB charger, 15A 125V NEMA 5-15R, built to residential grade. It suits single-family and light-duty rooms. The TR20USBAC6W is spec grade with a high-impact resistant nylon face and a 20A 125V tamper-resistant receptacle, which is the pick for rental turns, hospitality rooms, and commercial break areas where the device gets heavier cycling.
11) How does the Eaton TR7740 series USB charger receptacle compare to the Pass & Seymour TR20USBAC6W?
The Eaton part is a TR7740 series tamper-resistant combination USB charger receptacle, so like the Pass & Seymour device it pairs tamper-resistant receptacle openings with built-in USB charging in one gang. The Pass & Seymour TR20USBAC6W is specified at 20A 125V with one Type A and one Type C port and a matte white nylon face. For a fleet of guest rooms or units, confirm which port types your occupants need - USB-C has become the common phone cable - and standardize on one part number across the property.
12) What is the exact part number to order for this Pass & Seymour USB charging outlet in white?
Order Pass & Seymour MPN TR20USBAC6W. That is the 20A, 125V tamper-resistant USB charging receptacle with Type A and Type C ports in white. It is a single configuration, so there is no finish or amperage option to specify.
13) Where can I get the full electrical specifications for the TR20USBAC6W?
Pass & Seymour publishes a spec sheet for the TR20USBAC6W covering the complete electrical data. It is linked in the product details as a PDF. The core ratings are 20A, 125V, nylon face, white matte finish, with 6A Type A and Type C USB ports.
