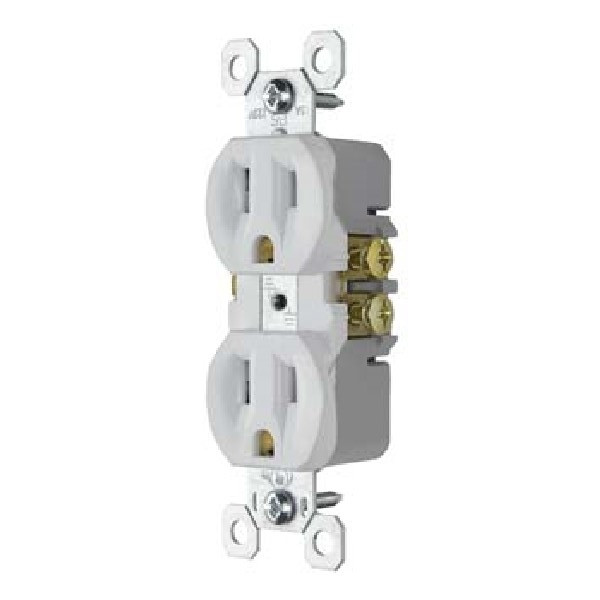

Pass & Seymour 3232WCACC20 CO/ALR Duplex Receptacle, 15A 125V, White
The Pass & Seymour 3232WCACC20 is a CO/ALR-rated duplex receptacle built for standard residential and commercial wiring devices. Rated 15A at 125V in a 2-pole, 3-wire configuration, this white receptacle is UL Listed and CSA Listed for dependable, code-compliant performance. The CO/ALR designation allows safe termination with either copper or aluminum branch-circuit wiring, making it a practical choice for both new construction and rewiring projects.
Key Features
- Electrical Rating: 15A, 125V duplex receptacle for standard general-purpose branch circuits.
- 2-Pole, 3-Wire Configuration: Standard grounding-type duplex device for common residential and light commercial circuits.
- CO/ALR Rated: Approved for termination with copper or aluminum wiring, expanding installation flexibility.
- White Finish: Clean, neutral white finish suited to most interior wiring device applications.
- Compact Dimensions: Measures 3.31 in height x 1.32 in width x 1.0 in depth for standard wallbox installation.
- Pass & Seymour Quality: Manufactured under the trusted Pass & Seymour product line for consistent performance.
Certifications & Compliance
- UL Listed
- CSA Listed
Technical Specifications
- Country Of Origin: Mexico
- Product Color: White
- Product Height: 3.31 in
- Product Line: Pass & Seymour
- Product Width: 1.32 in
- Product Depth: 1.0 in
Typical Applications
- Residential and Commercial Duplex Outlet Wiring
- Copper and Aluminum Branch-Circuit Wiring Installations
- Standard Wallbox Receptacle Replacement
- New Construction Electrical Rough-In and Trim-Out
- Renovation and Retrofit Wiring Projects
Why Pass & Seymour?
Pass & Seymour builds wiring devices to consistent, code-compliant standards, and the 3232WCACC20 duplex receptacle is no exception, carrying both UL and CSA listings for verified safety performance. Its CO/ALR rating gives electricians confidence when terminating either copper or aluminum conductors, reducing compatibility concerns on the job. For professionals who need a reliable, standard-format duplex receptacle backed by an established electrical brand, the Pass & Seymour 3232WCACC20 is a practical, code-ready choice.
Manufacturer Resources
Product Specs
- Product Type:
- Duplex Receptacle
- Product Color:
- White
- Voltage Rating:
- 125V
- Amperage Rating:
- 15A
- Configuration:
- 2-Pole 3-Wire
- Listing:
- UL Listed
- Standards:
- CSA Listed
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Receptacles & Outlets
- Product Depth:
- 1 in
- Product Width:
- 1.32 in
- Product Height:
- 3.31 in
Pass & Seymour 3232-WCACC20 – Frequently Asked Questions
1) Can the Pass & Seymour 3232WCACC20 receptacle be used on aluminum branch circuit wiring?
Yes. The 3232WCACC20 is CO/ALR rated, which means it is approved for termination with either copper or aluminum branch-circuit conductors. That is the reason to pick it over a standard copper-only duplex: older homes and apartments wired with aluminum branch circuits need a CO/ALR device at every outlet, and a standard receptacle on aluminum wire is the classic overheated-connection problem. It's a 15A, 125V, 2-pole 3-wire grounding duplex, so it drops into ordinary general-purpose circuits.
2) I manage apartments with aluminum wiring. Can I standardize all my outlets on this one receptacle?
For 15 amp, 125 volt general-purpose outlets, yes. The 3232WCACC20 is white, which matches most interior device and plate schemes, and its CO/ALR rating means the same part works whether a given unit was wired in copper or aluminum, so you only stock one receptacle. Where a circuit feeds a single dedicated 20 amp outlet, or where a kitchen, bath, or exterior location calls for GFCI protection, you will need a different device at those locations.
3) What is the closest alternative to the Pass & Seymour 3232WCACC20 if the circuit is 20A instead of 15A?
The Pass & Seymour 3232WCACC20 is rated 15A at 125V in a 2-pole 3-wire configuration. For a 20A 125V duplex on the same style of opening, the Leviton 16352-1PW is a commercial grade heavy-duty straight blade duplex receptacle rated 20A 125V NEMA 5-20R, and the Bryant 5362B is a heavy-duty 20A/125V duplex. Note that neither of those is described as CO/ALR, so if the branch circuit is aluminum conductor the 3232WCACC20 is the device that covers that termination.
4) Can I use a Leviton 16262-HGW in place of a Pass & Seymour 3232WCACC20 in a patient care area?
They are not the same class of device. The Leviton 16262-HGW is a hospital grade duplex receptacle in white, which is what patient care space typically calls for. The Pass & Seymour 3232WCACC20 is a 15A 125V CO/ALR duplex for general-purpose residential and light commercial branch circuits and is not a hospital grade device. Use the hospital grade part where the facility spec demands it, and keep the 3232WCACC20 for ordinary copper or aluminum branch-circuit outlets.
5) Which receptacles look like substitutes for the Pass & Seymour 3232WCACC20 but will not work on a 125V general-purpose circuit?
Several nearby devices share the duplex or receptacle label but serve different circuits. The Bryant 430R9W is a 2-pole 3-wire 277V motor-duty receptacle, so the same configuration wording but a different voltage class than the 125V Pass & Seymour 3232WCACC20. The Eaton 7379 is an industrial locking receptacle rated 50A at 600V/250V AC/DC, a locking blade pattern rather than a straight-blade duplex. For hazardous locations, the Appleton FSQC series interlocked explosionproof receptacle and the Appleton U-Line ECS factory-sealed 3-pole plug and receptacle set are purpose-built devices and not interchangeable with a standard wallbox duplex.
6) Is the Pass & Seymour 3232WCACC20 a grounding-type outlet with a ground slot?
It is. The configuration is 2-pole, 3-wire, which is the standard grounding-type duplex arrangement: two hot/neutral slots per outlet plus an equipment ground. If you are replacing an old ungrounded two-slot receptacle, you need a grounding conductor or a properly bonded box at that location to use it as intended.
7) Does the Pass & Seymour 3232WCACC20 fit a standard single-gang wall box?
Yes, it's a standard-format duplex device sized for ordinary wallbox installation, measuring 3.31 x 1.32 x 1.0 inches. It mounts on the usual 2 screw strap centers and takes any standard duplex wall plate, so it swaps straight into existing single-gang boxes during a retrofit or trim-out.
8) Is this Pass & Seymour receptacle UL listed for commercial work?
The 3232WCACC20 carries both a UL Listing and a CSA Listing, so it is acceptable for inspected work on either side of the border. It is a standard general-purpose device rather than a spec-grade or hospital-grade outlet. For facilities that require a graded device, the Eaton 5262W is industrial specification grade in 15A 125V 5-15R, and the Leviton 16262-HGW is hospital grade.
9) For a high-traffic commercial corridor, is the Pass & Seymour 3232WCACC20 the right duplex or should I step up?
The Pass & Seymour 3232WCACC20 is a standard-format 15A 125V duplex intended for general-purpose residential and light commercial circuits. Where a property manager wants a higher-duty device for heavy plug cycling, the Eaton Arrow Hart 5262W is an industrial specification grade 15A 125V 5-15R duplex in gray, and the Leviton 16251W is a commercial grade heavy-duty impact-resistant straight blade receptacle. The trade-off is the CO/ALR rating: the 3232WCACC20 is approved for copper or aluminum conductors, so on aluminum branch wiring it stays the correct choice.
10) I need more than two outlets at one box - what do I use instead of the Pass & Seymour 3232WCACC20?
The Pass & Seymour 3232WCACC20 is a duplex device, two outlets in a standard wallbox. For four outlets at a single location, the Bryant 21254IGO is a quad straight-blade receptacle, NEMA 5-20R, rated 20A. For a single outlet instead, the Eaton 816W-BOX is a commercial specification grade single receptacle rated 15A, and the Eaton 6450W is an industrial specification grade decorator single receptacle accepting #14-10 AWG.
11) Is there a decorator-style white alternative to the Pass & Seymour 3232WCACC20 duplex?
The Pass & Seymour 3232WCACC20 is a standard-format white duplex rated 15A 125V with a CO/ALR termination rating. For a decorator face in white, the Leviton 16342 is a Decora Plus commercial grade duplex receptacle rated 20-amp 125-volt NEMA 5-20R in white. That is a 20A device on a different face style and takes a decorator wallplate rather than a standard duplex plate, and it does not carry the copper or aluminum CO/ALR rating of the 3232WCACC20.
12) Is the Pass & Seymour 3232WCACC20 a 125V only device, or can it be used at 277V?
125 volts only. The 3232WCACC20 is rated 15A at 125V for standard line-voltage branch circuits. For a 277 volt application you need a device rated for it, such as the Bryant 430R9W 2-pole 3-wire 277V motor-duty receptacle.
13) What color and finish does the Pass & Seymour CO/ALR duplex receptacle come in?
White is the finish offered on the 3232WCACC20, and it is sold as a single model, so there is no color or configuration to select when ordering. Pair it with a standard white duplex wall plate to match.
