Pass & Seymour Extra Heavy-Duty Specification Grade Lock Switch, 20A 120/277V, Back and Side Wire

Pass & Seymour Extra Heavy-Duty Specification Grade Lock Switch, 20A 120/277V, Back and Side Wire

(No reviews yet) Write a Review

Model: PS15AC1-L
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$39.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour Extra Heavy-Duty Specification Grade Lock Switch, 20A 120/277V, Back and Side Wire

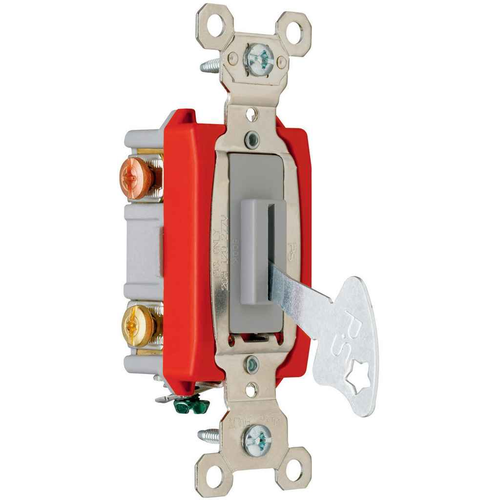

The Pass & Seymour Extra Heavy-Duty Specification Grade Lock Switch is a 1-pole locking toggle switch rated 20A at 120/277V, engineered for demanding industrial and commercial installations. It features back and side-wire external screw-pressure-plate terminals that accept #14 - #10 AWG copper or copper-clad conductors, along with a cULus Listed rating for code-compliant performance where reliability under heavy use is critical.

Key Features

  • Locking Design: Locking support provides resistance to face and back body separation for secure, tamper-resistant operation.
  • Durable Construction: Back body made of glass-reinforced nylon and a high-strength thermoplastic polycarbonate toggle for long-term durability.
  • Wiring Method: External screw-pressure-plate back and side-wire terminals accept #14 - #10 AWG copper or copper-clad conductors.
  • Electrical Rating: 1-Pole, 20A, 120/277V rating suited for extra heavy-duty specification-grade applications.
  • Fast, Positive Switching: Cam controls a fast make and positive break to minimize arcing, with heavy-gauge one-piece copper alloy contact arm to virtually eliminate contact bounce.
  • Quiet Operation: Heavy-duty bumper pads reduce noise during switching.
  • Grounding: Nickel-plated steel strap with integral ground, auto-ground clip, and standard grounding terminal assure positive ground.
  • Contacts: Oversized silver alloy contacts for long life and better heat dissipation.
  • Finish: Matte finish with a shallow design for ease of installation.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Finish: Matte
  • Product Line: Pass & Seymour
  • Material: Thermoplastic
  • Country of Origin: Mexico
  • Packaging: 10 EA

Typical Applications

  • Industrial and Commercial Electrical Installations
  • Specification-Grade Wiring Device Upgrades
  • Applications Requiring Locking Switch Security
  • Heavy-Duty Lighting and Equipment Control Circuits
  • New Construction and Renovation Wiring Projects

Why Pass & Seymour?

Pass & Seymour builds this lock switch with glass-reinforced nylon and thermoplastic polycarbonate components, a one-piece copper alloy contact arm, and oversized silver alloy contacts for dependable, long-lasting performance. Backed by a cULus Listing, it delivers the specification-grade reliability and code-compliant construction professionals need for demanding electrical environments.

[{"name":"Product Type","value":"Lock Switch"},{"name":"Product Material","value":"Thermoplastic"},{"name":"Voltage Rating","value":"120/277V"},{"name":"Amperage Rating","value":"20A"},{"name":"Finish","value":"Matte"},{"name":"Listing","value":"cULus"},{"name":"Country of Origin","value":"Mexico"}]

Manufacturer Resources

Spec Sheet

Product Specs

Product Line:
Pass & Seymour
Country of Origin:
MEX
Spec Sheet:
https://media.distributordatasolutions.com/legrand_synd/2025q4/documents/c34845a1c6b8e64683ff66c74d9a5cae2465fd5a.pdf
list_batch:
PASS-20260820
Product Material:
Thermoplastic
Product Color:
Matte
Department:
Electrical
Product Group:
Wiring Devices
Product Type:
Lock Switch
