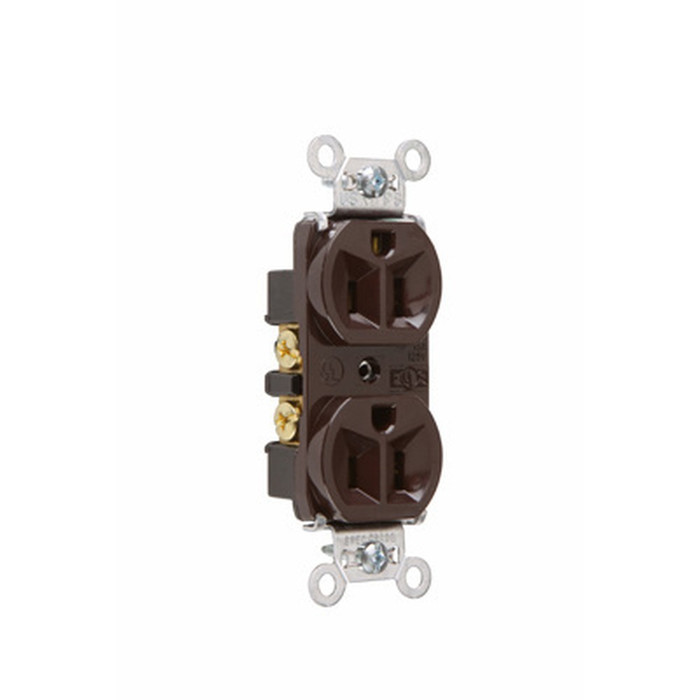

Pass & Seymour Hard Use Spec-Grade Duplex Receptacle, 15A 125V, Back and Side Wire

Pass & Seymour Hard Use Spec-Grade Duplex Receptacle, 15A 125V, Back and Side Wire

The Pass & Seymour Hard Use Spec-Grade Duplex Receptacle is a 15A 125V wiring device built for demanding commercial and industrial environments where abuse and abrupt removal torque are common. It features 8-hole internal screw-pressure-plate back wire terminals plus side wire screws that accept #10-#14 AWG solid or stranded copper or copper-clad conductors, an impact-resistant nylon face, and a corrosion-resistant plated and tabbed steel strap. It is Federal Spec Listed and cULus Listed, making it a dependable choice for professional installations that require code-compliant performance and long-term durability.

Key Features

• Back and Side Wire Terminals: 8-hole internal screw-pressure-plate back wire terminals accept #10-#14 AWG solid or stranded copper or copper-clad conductors for fast, secure terminations.
• Durable Construction: Impact-resistant nylon face paired with a corrosion-resistant, plated and tabbed steel strap locked in to the face and back body to resist pulling away from the assembly.
• Reinforced Mounting: Two drive screws anchor the strap to the back body and face where abrupt removal torque is greatest.
• Positive Grounding: Auto-ground clip assures positive ground for reliable safety performance.
• Isolated Terminal Compartments: Terminal compartments are isolated from each other for positive conductor containment.
• Split-Circuit Ready: Easily accessed break-off, line-contact connecting tab allows fast, easy split-circuit wiring.
• Temperature Rating: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current; operating temperature range of +60°C maximum continuous to -40°C minimum without impact.

Certifications & Compliance

• Federal Spec Listed
• cULus Listed

Technical Specifications

• Finish: Matte
• Product Line: Pass & Seymour
• Country of Origin: Mexico
• Packaging: 10 EA

Typical Applications

• Commercial and Industrial Electrical Installations
• High-Abuse and High-Traffic Wiring Device Locations
• Retrofit and New Construction Wiring
• Split-Circuit Duplex Receptacle Applications
• Back and Side Wire Terminations Requiring Fast Installation

Why Pass & Seymour?

Pass & Seymour engineers this Hard Use Spec-Grade Duplex Receptacle with a corrosion-resistant steel strap, impact-resistant nylon face, and isolated, screw-pressure-plate back wire terminals to withstand the demands of professional electrical work. Federal Spec Listed and cULus Listed construction gives electrical contractors and facility teams a code-compliant, durable wiring device they can rely on for busy commercial and industrial environments.
