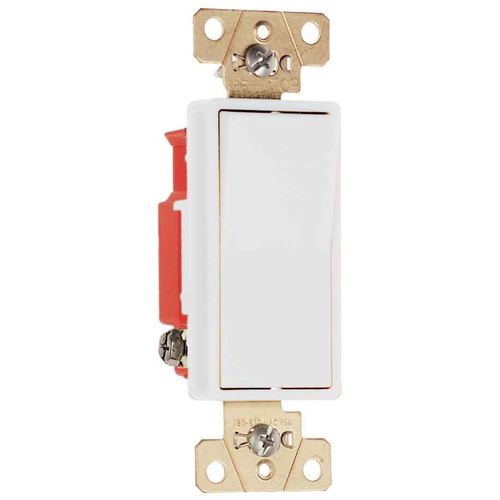

Pass & Seymour Specification Grade 3-Way Decorator Switch, 20A/120-277V

Pass & Seymour Specification Grade 3-Way Decorator Switch, 20A/120-277V

(No reviews yet) Write a Review

Model: 2622
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour Specification Grade 3-Way Decorator Switch, 20A/120-277V

The Pass & Seymour Specification Grade Decorator Switch is a 3-way, back and side-wire device rated 20A at 120/277V, built for commercial and industrial wiring applications that demand consistent, long-term performance. This decorator-style switch combines an impact-resistant polycarbonate body with high-conductivity brass terminals, and it carries CSA, UL, and cULus listings for code-compliant installations.

Key Features

  • Back and Side-Wire Capability: Internal screw-pressure-plate design accepts #14 - #10 stranded or solid copper/copper-clad wire for fast, flexible installation.
  • Durable Construction: Impact-resistant polycarbonate back body and frame stand up to demanding commercial and industrial environments.
  • Smooth, Quiet Operation: Cushioned thermoplastic paddle assures smooth, quiet, long-term switching action.
  • High-Conductivity Terminals: Terminals are made of high-conductivity brass and serrated for maximum wire-gripping strength.
  • Integral Auto-Ground Clip: Provides positive grounding to metal boxes without additional wiring steps.
  • Ready-to-Install: All terminal screws are backed out at the factory for faster field installation.
  • Single Rocking Butterfly Contact: A unique design with significantly fewer moving parts delivers long-term, consistent performance.
  • Tri-Drive Screws: Tri-drive ground, terminal, and mounting screws support multiple driver types on the job site.
  • Silver Alloy Contacts: Contacts are integrally formed to the butterfly actuator for reliable, repeatable switching.

Certifications & Compliance

  • CSA Listed
  • cULus Listed
  • UL Listed

Technical Specifications

  • Configuration: 3-Way, Back and Side-Wire
  • Amperage Rating: 20A
  • Voltage Rating: 120/277V
  • Wire Range: #14 - #10 AWG stranded or solid copper/copper-clad
  • Finish: Matte
  • Product Line: Pass & Seymour
  • Material: Thermoplastic
  • Packaging: 10 EA
  • Country of Origin: France

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Specification-Grade Wiring Device Upgrades
  • Three-Way Lighting Control Circuits
  • New Construction and Renovation Wiring
  • 120/277V Switching Applications Requiring UL/cULus Compliance

Why Pass & Seymour?

Pass & Seymour builds this decorator switch with an impact-resistant polycarbonate body, high-conductivity brass terminals, and a single rocking butterfly contact with silver alloy contacts for fewer moving parts and dependable long-term performance. Backed by CSA, UL, and cULus listings, it's engineered for reliable, code-compliant performance in professional electrical work.

Manufacturer Resources

Product Specs

list_batch:
PASS-20260820
Product Type:
Decorator Switch
Product Finish:
Matte
Voltage Rating:
120/277V
Amperage Rating:
20A
Configuration:
3-Way
Connection Type:
Back and Side Wire
Listing:
cULus
Country of Origin:
France
Product Material:
Thermoplastic
Department:
Electrical
Product Group:
Wiring Devices
Finish:
Matte
