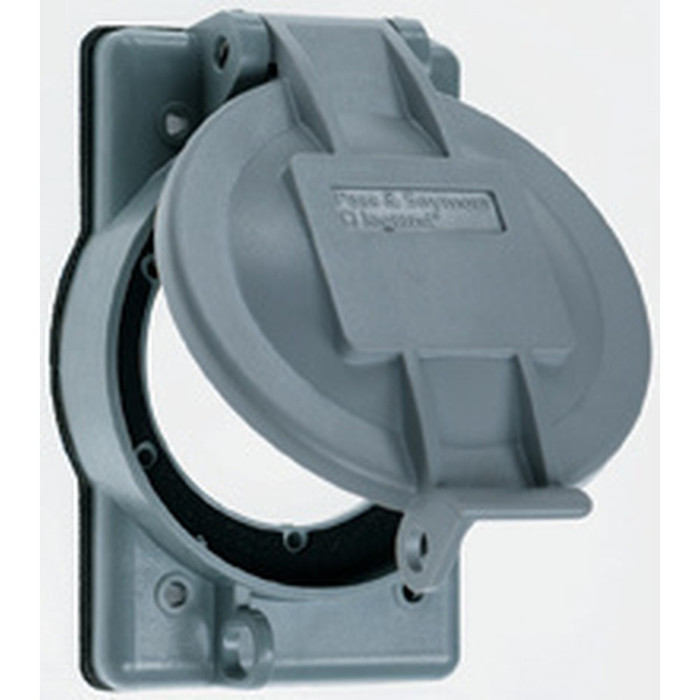

Pass & Seymour Thermoplastic Weatherproof Flanged Inlet-Outlet Cover, Gray

Pass & Seymour Thermoplastic Weatherproof Flanged Inlet-Outlet Cover, Gray

(No reviews yet) Write a Review

Model: WPG-2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$87.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour Thermoplastic Weatherproof Flanged Inlet-Outlet Cover, Gray

The Pass & Seymour Thermoplastic Weatherproof Lift Cover is an industrial-grade cover designed for flanged inlet/outlet devices, featuring a 2.32-inch diameter opening sized to accommodate 20A/30A Turnlok® connectors. Molded from unbreakable glass-filled polycarbonate thermoplastic in a matte gray finish, this cover is built to withstand years of job site abuse and harsh environmental exposure while keeping energized flanged inlets and outlets protected. The cover is cULus Listed and complies with 2005 NEC Section 406.8(A) and 406.8(B)(2), making it a code-compliant solution for commercial and industrial power connection points.

Key Features

  • Opening Size: 2.32-inch diameter opening accommodates 20A/30A Turnlok® flanged inlet/outlet devices.
  • Durable Construction: Unbreakable glass-filled polycarbonate thermoplastic construction resists years of job site abuse and harsh environmental exposure.
  • Code Compliance: Complies with 2005 NEC Section 406.8(A) and 406.8(B)(2) for weatherproof cover requirements.
  • Tamper-Proof Hinge: Permanent, locked-in hinge pins add security against tampering.
  • Identification Label Area: Molded-in 2.8 sq. in. label area for pre-printed or handwritten circuit, rating, and application data.
  • Universal Fit: Designed to fit all competitive flanged inlets and outlets.
  • Lockable Bullnose: WPG1 and WPG2 configurations include a lockable bullnose for OSHA locktag/tagout compliance.
  • Finish: Matte gray finish for a clean, durable industrial appearance.

Certifications & Compliance

  • cULus Listed
  • Complies with 2005 NEC Section 406.8(A) and 406.8(B)(2)

Technical Specifications

  • Material: Thermoplastic (glass-filled polycarbonate)
  • Opening Diameter: 2.32 inches
  • Rating Compatibility: 20A/30A Turnlok®
  • Finish: Matte
  • Color: Gray
  • Product Line: Pass & Seymour
  • Country of Origin: Mexico
  • Packaging: 10 EA

Typical Applications

  • Flanged Inlet and Outlet Protection on Industrial Equipment
  • Outdoor and Wet-Location Power Connection Points
  • Job Site and Temporary Power Distribution
  • Commercial and Industrial Electrical Installations
  • Renovation and New Construction Projects Requiring NEC-Compliant Covers

Why Pass & Seymour?

Pass & Seymour builds this weatherproof lift cover from unbreakable glass-filled polycarbonate thermoplastic to hold up under repeated job site abuse and outdoor exposure, while its tamper-proof hinge and lockable bullnose options support secure, OSHA-compliant installations. Backed by cULus Listing and compliance with 2005 NEC Section 406.8(A) and 406.8(B)(2), it delivers dependable, code-compliant protection for flanged inlet/outlet devices in demanding commercial and industrial environments.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
PASS-20260820
Product Type:
Weatherproof Receptacle Cover
Product Finish:
Matte
Listing:
cULus
Product Material:
Thermoplastic
Product Color:
Gray
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Weatherproof Covers

Pass & Seymour WPG-2 – Frequently Asked Questions

1) Will the Pass & Seymour WPG-2 cover fit a 30A twist-lock flanged inlet?
Yes. The WPG-2 weatherproof cover has a 2.32 inch diameter opening sized for 20A and 30A Turnlok flanged inlet and outlet devices, and it is made to fit competitive flanged inlets and outlets as well, not just Pass & Seymour bodies. Measure the flange collar on your device against that 2.32 inch opening before ordering.
2) Does this Pass & Seymour weatherproof cover meet NEC requirements for wet locations?
The WPG-2 is cULus Listed and complies with 2005 NEC Section 406.8(A) and 406.8(B)(2) for weatherproof covers, which is what inspectors look for at outdoor and damp-location power connection points.
3) What cover should I use for a standard duplex or decorator receptacle instead of the Pass & Seymour WPG-2?
The WPG-2 is built for flanged inlet and outlet devices, with a 2.32-inch round opening sized to 20A/30A Turnlok connectors, so it will not accept a flat duplex or decorator device. For a decorator-style device in a 1-gang box, the Bell Outdoor Comforts 1-gang vertical decorator weatherproof cover is the device-specific option, and for a single receptacle the Mulberry 30552 BAC1SV 1-gang single receptacle weatherproof cover is made for that face.
4) Does the WPG-2 work as a GFCI cover on an FS box?
No. The WPG-2 has a 2.32-inch round opening for 20A/30A Turnlok flanged inlets and outlets and is not a GFCI faceplate. For a GFCI device in an FS box, the Cantex 5133348 is a PVC GFCI cover made for FS box mounting.
5) Can the WPG-2 cover be padlocked for lockout/tagout?
Yes. The WPG1 and WPG2 configurations include a lockable bullnose so the cover can be secured for OSHA lockout/tagout. The hinge pins are permanently locked in as well, so the lid can't simply be lifted off to defeat it.
6) How does the WPG-2 compare to a Mulberry weatherproof cover for a 30A device?
Both address 30A connection points, but they're different form factors. The Pass & Seymour WPG-2 is a lift-style flanged inlet/outlet cover with a 2.32 inch round opening and a lockable bullnose. The Mulberry 11525 (CV72R3330R) is a 5 inch square weatherproof cover rated 30A and sold in packs of 100, which suits square box openings rather than a flanged device on equipment.
7) Is there a glass-filled thermoplastic weatherproof cover like the WPG-2 that self-closes over a standard 1-gang device?
Yes. The WPG-2 is molded from glass-filled polycarbonate thermoplastic with a tamper-proof hinge, but its opening is dedicated to flanged inlet/outlet devices. The Leviton 7420-YL is an industrial grade 1-gang self-closing weatherproof cover in glass-filled thermoplastic, and the Leviton 7788-CR is a 1-gang self-closing weatherproof cover in the same glass-filled thermoplastic material. Both are the self-closing route for conventional 1-gang receptacles.
8) What is this cover made of, and will it hold up outdoors on a job site?
Glass-filled polycarbonate thermoplastic in a matte gray finish. It's an industrial-grade molding meant to take repeated job site handling and outdoor exposure without cracking, which is why it shows up on temporary power distribution and equipment inlets.
9) Can I label the circuit on the cover itself?
There's a molded-in label area of 2.8 square inches on the cover for a pre-printed or handwritten tag with circuit number, rating, or application. Useful when you're standardizing a plant or a temp power setup and want the panel circuit identified at the inlet.
10) If I am standardizing covers across a facility, which of these options comes in bulk cartons?
The Pass & Seymour WPG-2 gray matte thermoplastic cover is packaged 10 each. Among the comparable covers, the Mulberry 11525 5-inch square 30A cover and the Mulberry 30552 BAC1SV 1-gang single receptacle cover are both supplied in packs of 100 for larger standardization programs.
11) How is the WPG-2 packaged, and where is it made?
Packaged 10 each, made in Mexico. The 10-pack quantity suits standardizing multiple inlet points across a facility or a temp power run rather than a one-off replacement.
