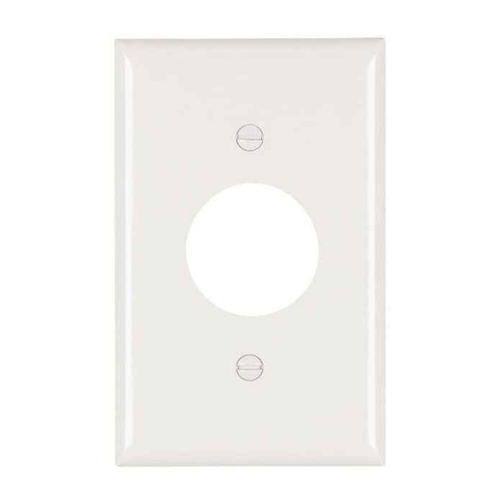

Pass & Seymour TPJ7W TradeMaster Jumbo 1-Gang Nylon Single Receptacle Wall Plate, White

Pass & Seymour TPJ7W TradeMaster Jumbo 1-Gang Nylon Single Receptacle Wall Plate, White

(No reviews yet) Write a Review

Model: TPJ7-W

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.87
$2.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour TPJ7W TradeMaster Jumbo 1-Gang Nylon Single Receptacle Wall Plate, White

The Pass & Seymour TPJ7W is a TradeMaster Jumbo 1-Gang wall plate with a single receptacle opening, finished in White. Molded of rugged, self-extinguishing nylon with a nominal thickness of .070 inch, this TPJ series plate offers extra 3/16 inch width and height over standard Junior-Jumbo size plates for broader wall coverage. It is cULus Listed and built for demanding, high-abuse environments where standard plates fall short.

Key Features

  • Jumbo Sizing: TPJ series plates provide an extra 3/16 inch of width and height compared to Junior-Jumbo size plates for wider wall coverage.
  • Durable Nylon Construction: Molded of rugged, practically indestructible self-extinguishing nylon for long-term durability in demanding settings.
  • Single Receptacle Opening: Configured as a 1-Gang plate with a single receptacle opening for standard device installations.
  • Nominal Thickness: .070 inch thick for a solid, substantial feel at the wall.
  • High-Abuse Rated: Preferred for hospital, industrial, institutional, and other high-abuse applications where standard plates may fail.
  • White Finish: Clean White finish suited to a wide range of interior environments; also available in Ivory, Brown, Gray, Black, Blue, Orange, Red, and Light Almond.
  • cULus Listed: Certified for use in code-compliant commercial and industrial electrical installations.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Country Of Origin: Mexico
  • Product Finish: Matte
  • Product Height: 5.0625 in
  • Product Line: Pass & Seymour
  • Product Width: 3.3125 in
  • Product Depth: 0.25 in

Typical Applications

  • Hospital and Healthcare Facilities
  • Industrial and Institutional Facilities
  • Commercial Electrical Installations
  • High-Abuse and High-Traffic Areas
  • Renovation and New Construction Projects

Why Pass & Seymour?

Pass & Seymour engineers the TradeMaster Jumbo series from rugged, self-extinguishing nylon to withstand the demands of hospital, industrial, and institutional environments where standard wall plates take a beating. With cULus Listing and a substantial .070 inch nominal thickness, the TPJ7W delivers dependable, code-compliant performance for professional electrical installations. Choose Pass & Seymour for wall plates built to outlast everyday wear in high-traffic facilities.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Wallplate
Product Material:
Nylon
Product Color:
White
Configuration:
1-Gang
Product Finish:
Matte
Listing:
cULus
Country of Origin:
Mexico
Department:
Electrical
Product Group:
Wiring Devices
Finish:
Matte

Pass & Seymour TPJ7-W – Frequently Asked Questions

1) Will the Pass & Seymour TPJ7W jumbo plate cover the wall damage and gaps around my old receptacle cutout?
That's what the jumbo size is for. The TPJ series runs an extra 3/16 inch in both width and height over Junior-Jumbo plates, so the finished plate measures 5.0625 inches by 3.3125 inches. On a remodel where the drywall is chewed up around the box or the old paint line shows, that extra coverage hides the edge without patching. If your existing openings were cut for standard-size plates, the jumbo will overhang them, which is usually what you want on a repair but will look inconsistent if the rest of the run is standard size.
2) Does the TPJ7W fit a duplex receptacle or a single round receptacle?
Single receptacle only. The TPJ7W is a 1-gang plate with one single-receptacle opening, which is the round opening for a single 15A or 20A receptacle, not the figure-eight cutout a duplex needs. If the device in the box is a standard duplex, this plate will not go over it and you want the duplex version of the TPJ series instead.
3) Are nylon wall plates like the Pass & Seymour TPJ7W acceptable in a hospital or industrial facility, or do I need metal?
Nylon holds up in exactly those settings. The TPJ TradeMaster plates are molded from self-extinguishing nylon and are the preferred choice for hospital, industrial, and institutional high-abuse areas where thermoplastic plates crack. Nylon takes impact and chemical cleaning better than standard plastic. Go to stainless only where a spec sheet on the job actually calls for metal; for general high-traffic corridors and equipment rooms, the nylon jumbo does the work and costs less to standardize on.
4) I need to match white plates across a whole building. What colors does the TradeMaster Jumbo TPJ series come in?
The TPJ7W is White with a matte finish, which won't gloss up under corridor lighting the way a shiny plate does. The same jumbo single-receptacle plate is offered in Ivory, Brown, Gray, Black, Blue, Orange, Red, and Light Almond, so if you color-code circuits (red for emergency power, orange for isolated ground) you can carry the same plate across the facility and only change the color.
5) Will a jumbo plate cover a box that was cut in crooked or set too deep?
Only the face of the opening. The jumbo footprint of 5.0625 by 3.3125 inches gives you extra margin around a ragged or off-square cutout, which is the usual reason people reach for one. What it will not fix is a box set too deep, where the device sits behind the drywall plane; there the plate will rock or crack when tightened, and the fix is a box extender or resetting the device, not a bigger plate.
6) How thick is the TPJ7W plate, and will it feel flimsy on the wall?
Nominal thickness is .070 inch. That is a heavier section than economy plates, so it sits flat and doesn't flex or bow when you snug the mounting screw down on a slightly proud device. Combined with the nylon, it's the reason these get spec'd where plates take abuse.
7) Do mounting screws come with the Pass & Seymour TPJ7W wall plate?
Order the TPJ7W as the plate itself, model TPJ7-W. Wall plate screws thread into the receptacle's own mounting strap, so if you are also replacing the device, the screws come with the receptacle. On a plate-only swap, reuse the screws that are already in the device.
8) What is the actual part number for the white jumbo single receptacle plate from Pass & Seymour?
TPJ7-W is the manufacturer part number, sold as model TPJ7W, from the Pass & Seymour TradeMaster line. Made in Mexico. The 7 in the number is the single-receptacle configuration and the W is the White color, which is how the rest of the TPJ jumbo family is numbered too.
