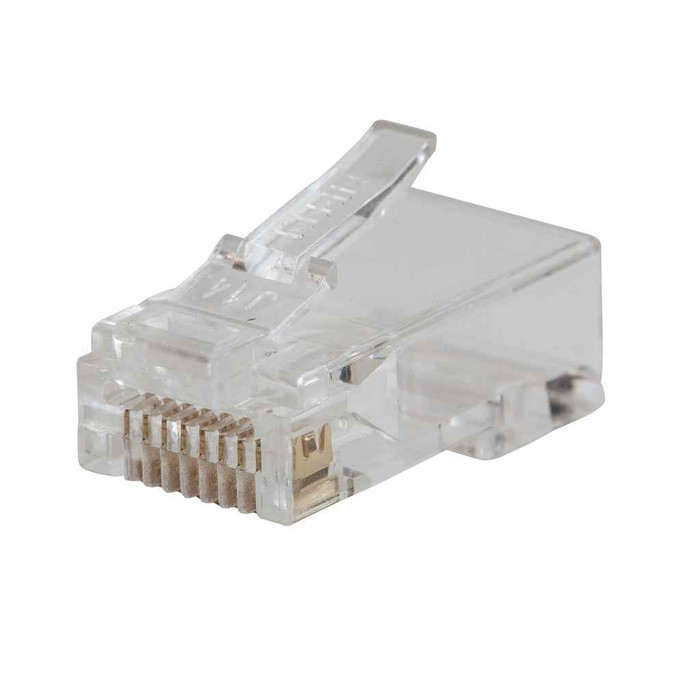

Klein Tools Pass-Thru RJ45 Modular Data Plugs CAT5e 8P8C Clear 10-Pack

Klein Tools Pass-Thru RJ45 Modular Data Plugs CAT5e 8P8C Clear 10-Pack

Professional Pass-Thru Technology for Fast, Reliable Data Connections

Klein Tools Pass-Thru RJ45 Modular Data Plugs deliver professional-grade connectivity for CAT5e applications with innovative pass-through design. These 8 position, 8 contact clear connectors feature Klein's exclusive Pass-Thru technology that allows cable to pass completely through the connector for visual wire order verification, ensuring consistent and secure terminations every time. Compatible with both solid and stranded conductors up to 0.04-inch diameter, these connectors provide reliable performance for data networking installations.

Professional Features & Benefits

• Pass-Thru Technology: Cable passes through connector for visual wire order confirmation, reducing installation errors and ensuring proper terminations
• 8P8C Configuration: Standard 8 position, 8 contact design provides full compatibility with CAT5e networking requirements
• 50 �-inch Gold Plating: Minimum gold plating on all contact surfaces ensures superior conductivity and corrosion resistance
• Clear PVC Construction: Transparent housing allows visual inspection of wire placement and connection integrity
• Dual Conductor Compatibility: Works with both solid and stranded wire up to 0.04-inch maximum diameter for versatile applications
• Category 5e Performance: Meets EIA/TIA B.2 standards and RoHS compliance for professional data networking
• 10-Pack Quantity: Convenient bulk packaging reduces project costs and ensures adequate supply for installations

Technical Specifications

• Cable Type: CAT5e
• Connector Color: Clear
• Connector Type: RJ45
• Department: Electrical
• Depth: 0.8850 in
• Height: 0.0920 in
• Material: PVC Plastic; Gold Plated Contacts
• Overall Height: 0.453" (1.2 cm)
• Overall Length: 0.875" (2.2 cm)
• Overall Width: 0.094" (0.2 cm)
• Package Quantity: 10
• Position Contacts: 8P 8C
• Product Details: Modular
• Product Group: Tool Sets
• Product Subgroup: Tool Kits
• Product Type: Modular
• Solid Conductor Wire: Yes
• Stranded Conductor Wire: Yes
• Weight: 0.0060 lbs
• Width: 0.4590 in

Installation & Operation

1. Strip cable jacket to appropriate length and arrange wires according to T568A or T568B wiring standard.
2. Insert wires through the Pass-Thru connector, allowing cable to extend beyond the connector end.
3. Visually verify that all wires are in correct order and fully seated within the connector channels.
4. Use Klein Tools Pass-Thru Modular Crimper VDV226-110 to crimp connector and trim excess wire simultaneously.
5. Test connection integrity using appropriate cable testing equipment to verify proper termination.
6. Complete installation following applicable networking standards and building codes.

Professional Applications

• Data Center Installations
• Office Network Infrastructure
• Telecommunications Wiring
• Structured Cabling Systems
• Commercial Building Networks
• Residential Data Networks
• Audio/Video System Connections

Why Choose Klein Tools Quality?

Klein Tools Pass-Thru Modular Data Plugs combine innovative pass-through technology with professional-grade construction. The clear PVC housing with gold-plated contacts ensures long-term reliability, while Category 5e performance certification and RoHS compliance guarantee compatibility with modern networking standards. Designed for use with Klein Tools Pass-Thru Modular Crimper, these connectors deliver consistent, professional results for data networking professionals.
