HS303 Series

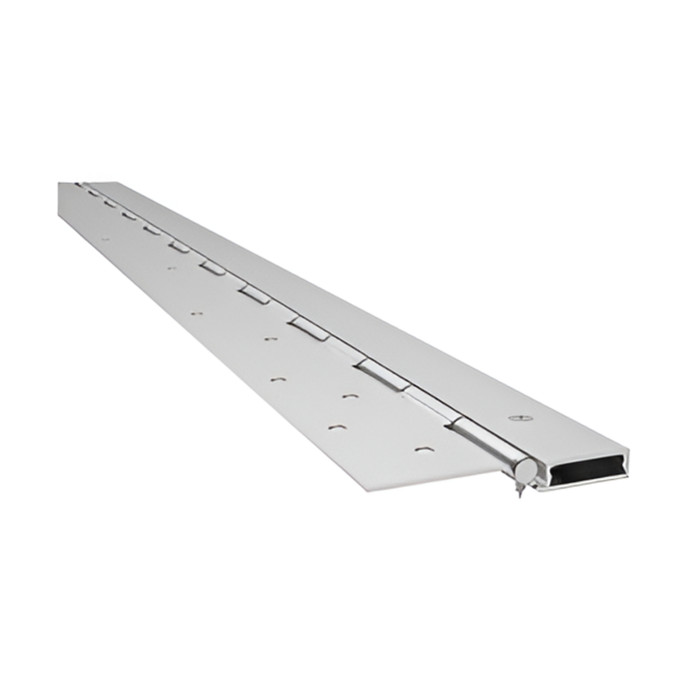

The Markar HS303 Series Half Surface Continuous Pin and Barrel Hinge can be used to repair and replace existing hinges on both fire-labeled and non-labeled openings. This hinge fits into the gap left after standard butt hinges are removed and can assist in reversing the handing of a door, or to reverse the swing of a door hung in an evenly rabbeted frame.
Features
-
Stainless steel end pins
-
Covers are extruded aluminum
-
Fasteners concealed when door is closed
-
Custom lengths available
-
Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEKScrews, 1/4-14 x 3/4 Security TORX TEK Screws, Zinc #8 x 3/4" PFH Tek, Zinc, Cover Clip
Benefits
-
Used to repair and replace existing hinges on both fire-labeled and non-labeled openings
-
Fits into the gap left after standard butt hinges are removed
-
Assists in reversing the handing of a door, or to reverse the swing of a door hung in an evenly-rabbeted frame
-
Fire ratings up to and including 3 hours
Specifications
-
Grade: Grade 1
-
Hinge Material: 304 stainless steel
-
Hinge Mounting Type: Half Surface
-
Hinge Strength: Standard Weight
-
Handing: Non-handed
-
Fastener: M91-0003, TKS1267SP10
-
Fastener Type: TORX-TEKS, TEKS
-
Maximum Door Thickness: 1 3/4"
-
Minimum Door Thickness: 1 3/4"
-
Maximum Door Width: 4"
-
Maximum Hinge Length: 10"
-
Minimum Hinge Length: 12"
-
Maximum Swing: 180°
-
Minimum Hinge Clearance: 1/8"
-
Weight: 2.5lbs. per foot
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
Warnock Hersey listing
-
ANSI/BHMA Standard A156.26
Manufacturer Resources
Product Specs
- Category:
- Door Hinges and Pivots
- Subcategory:
- Continuous Hinges
- Grade:
- Grade 1
- Product Group:
- Door Hinges and Pivots
- Product Subgroup:
- Continuous Hinges
- Product Type:
- Continuous Pin and Barrel Hinges
- Model:
- HS303
