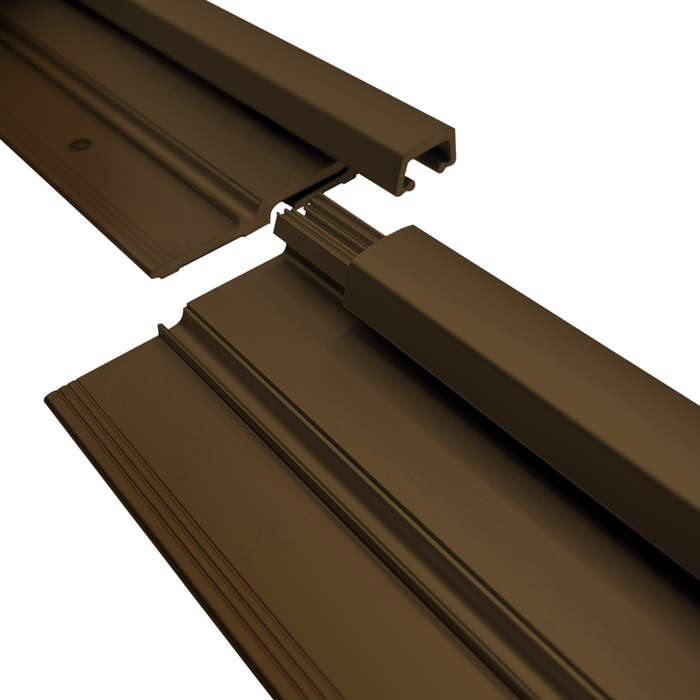

Pemko PemKonnect Modular Full Surface Heavy Duty Geared Continuous Hinge, 2 Pieces - 83in, Dark Bronze Aluminum

(No reviews yet) Write a Review

Model: DFS83HD1-M
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$370.81
$222.49
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
Pemko PemKonnect Modular Full Surface Heavy Duty Geared Continuous Hinge, 2 Pieces - 83in, Dark Bronze Aluminum

The FS series full surface continuous geared hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame. This hinge is available in standard and heavy duty models, as well as our PemKonnect modular version (FS_HD1-M) that is primarily designed for freight savings and ease of transportation.

Features:

  • Standard and heavy duty versions available
  • For swinging fire doors of hollow metal, tin-clad, sheet metal or steel covered composite type rated up to 3 hours
  • Hollow metal door and frame manufacturers’ standard reinforcement is acceptable
  • For wood covered composite type rated up to and including 1-1/2 hours
  • Applied to the exposed surfaces of the door and frame
  • Guaranteed for the life of the opening against defects in material or workmanship (HD only)
  • Removal of hinge reinforcements in the door and frame is not advised
  • Custom lengths available
  • Special hinge reinforcements are not required
  • Fire pins are required on 3-Hour (A-Label) assemblies
  • Excessive clearance on fire rated assemblies may violate NFPA 80





Specifications:

  • Grade: Grade 1
  • Hinge Material: Aluminum
  • Hinge Mounting Type: Full surface
  • Hinge Strength: Heavy weight
  • Handing: Non-handed
  • Fastener: Teks
  • Fastener Type: Self drilling
  • Maximum Door Thickness: 1 3/4"
  • Minimum Door Thickness: 1 3/4"
  • Maximum Door Width: 4'
  • Maximum Hinge Length: 10'
  • Minimum Length: 79"
  • Maximum Swing: 180°
  • Minimum Hinge Clearance: 1/16"
  • Weight: 1.29lbs. per foot

Models:

  • FS:
    • Hinge Strength: Standard
    • Bearing Spacing: 3"
  • FS_HD1:
    • Hinge Strength: Heavy Weight
    • Bearing Spacing: 3"

Options:

  • SER: Serviceable section prep with wires - 4, 8, or 12 wire options available
  • QC: ElectroLynx wires with Molex connectors - 4, 8, or 12 wire options available
  • CUT: Cut charge
  • HT: Hospital tip
  • ALP: Anti ligature package for continuous geared hinges
  • SSHT_ALP: Stainless steel anti ligature package for continuous geared hinges
  • TORX: TORX Security screws
  • WS: Wood screws
  • M: PemKonnect modular hinge

Spec Sheets



Manufacturer Resources

Product Specs

Category:
Door Hinges and Pivots
Subcategory:
Continuous Hinges
Product Group:
Door Hinges and Pivots
Product Subgroup:
Continuous Hinges
Product Type:
Pin and Barrel Continuous Hinges
Door Thickness Range:
1 3/4"
