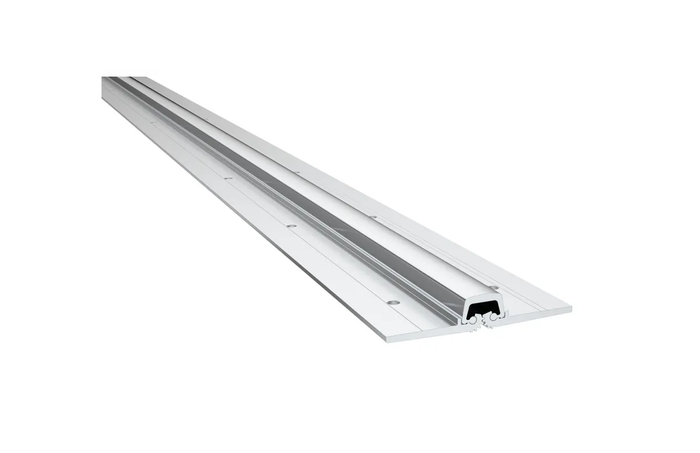

RS138 Series
The RS138 Series Full Mortise Residential Continuous Geared Hinge is designed mainly for new door and frame applications and are applied to conceal both leaves. This hinge features shorter leaves for thinner doors, particularly those that are 1-3/8" thick with a weight limit up to 90 lbs.
Features
-
Standard duty
-
Designed for for 1-3/8" thick residential doors that weigh up to 90 lbs.
-
Applied to conceal both leaves for safety and security
-
Certain door and frame conditions may require an extra 1/32"-1/16" clearance
-
12" bearing space
-
Wood screws available on request
-
Custom lengths available
Benefits
-
10 year warranty
-
For use on swinging type fire doors
Specifications
-
Bearing Spacing: 12"
-
Grade: Grade 3
-
Hinge Material: Aluminum
-
Hinge Mounting Type: Full Mortise
-
Hinge Strength: Residential
-
Handing: Non-handed
-
Fastener: Teks
-
Fastener Type: Self Drilling
-
Maximum Door Thickness: 1 3/8"
-
Minimum Door Thickness: 1 3/8"
-
Maximum Door Width: 4'
-
Maximum Hinge Length: 10'
-
Minimum Hinge Length: 79"
-
Maximum Swing: 180°
-
Minimum Hinge Clearance: 5/16"
-
Weight: 1lbs. per foot
-
Product Note: **Door edge must be square on hinge side. For beveled edge doors, additional clearances are required.**
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Category:
- Door Hinges and Pivots
- Subcategory:
- Continuous Hinges
- Grade:
- Grade 3
- Product Group:
- Door Hinges and Pivots
- Product Subgroup:
- Continuous Hinges
- Product Type:
- Continuous Aluminum Geard Hinges
- Model:
- RS138
