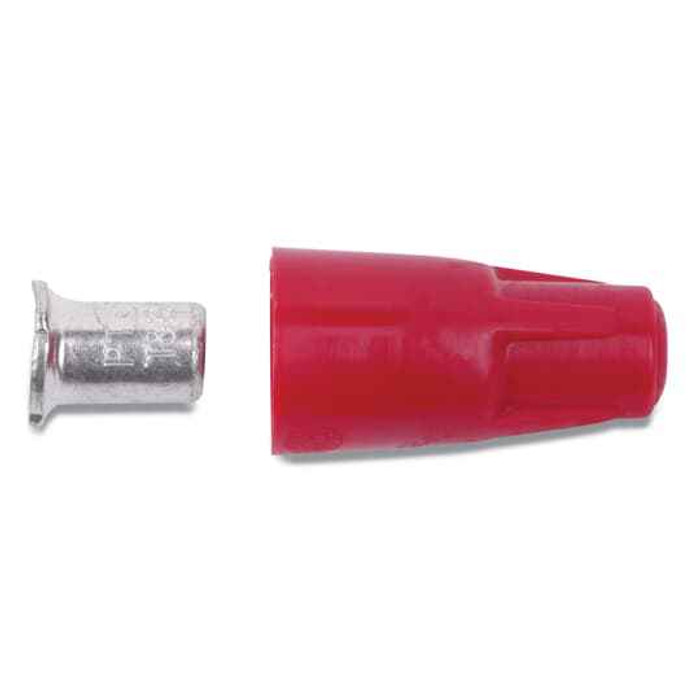

PGTL WIRE JNT 3-No12 MAX 2-No14 MIN
Manufacturer Resources
Product Specs
- Application:
- Provides terminating point for a group of wires running in one direction.
- Country Of Origin:
- United States (US)
- Product Subgroup:
- Wire Joints
- Product Type:
- Nylon Insulated Wire Joint
- Standards:
- UL E9809
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Steel
Sta-Kon PT66M – Frequently Asked Questions
1) What wire sizes does the Sta-Kon PT66M wire joint accept?
The PT66M pigtail wire joint is rated for a maximum of three No. 12 AWG conductors and a minimum of two No. 14 AWG conductors. Stay inside that window: fewer than two No. 14 wires or more than three No. 12 wires puts the crimp outside what the joint is sized for.
2) Can I use a pigtail wire joint like the Sta-Kon PT66M to splice wires running in two directions?
No. The PT66M is a pigtail (parallel) joint, meant to terminate a group of wires all running in one direction, the way you bundle neutrals or grounds in a box. For a through splice where conductors continue in opposite directions, you need a butt splice connector instead.
3) Is the Sta-Kon PT66M insulated, and what is the barrel made of?
The barrel is steel and the insulation is nylon. Nylon insulation holds up better to abrasion and crushing during installation than vinyl, which is why it is common on commercial and MRO work.
4) Does the Sta-Kon PT66M wire joint need a crimp tool, or can it be installed by hand?
It is a crimp-type joint, not a twist-on wire nut, so it needs a crimping tool sized for insulated terminals in the 12 to 14 AWG range. If your crew is working without a crimper, a twist-on connector is the wrong-to-right swap, not this.
5) What color is the Sta-Kon PT66M, and does the color mean anything?
Red. On insulated terminals and joints, color is the industry shorthand for the wire-size range, so a red body on the bench tells an electrician this is the 12 to 14 AWG size group rather than a smaller or larger one.
6) Where is the Sta-Kon PT66M made?
Made in the United States, which matters on government and institutional jobs carrying domestic-sourcing requirements.
How fast can I get the Sta-Kon PT66M delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Sta-Kon PT66M come with a warranty?
Absolutely. The Sta-Kon PT66M is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Sta-Kon PT66M?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
