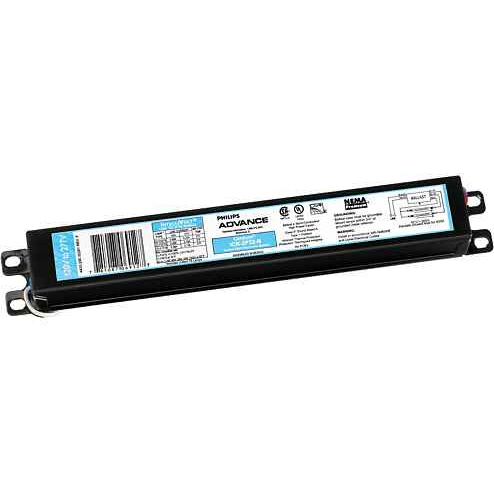

Philips Lighting 9137 CENTIUM Instant Start Electronic Fluorescent Ballast, 32W F32T8

Philips Lighting 9137 CENTIUM Instant Start Electronic Fluorescent Ballast, 32W F32T8

(No reviews yet) Write a Review

Model: 913710852301

In Stock (leaves warehouse same day if ordered before 3pm ET)

$23.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting 9137 CENTIUM Instant Start Electronic Fluorescent Ballast, 32W F32T8

The Philips Lighting 9137 CENTIUM (ICN1P32N35I) is an electronic fluorescent ballast engineered to drive F32T8 lamps rated at 32W. Housed in a durable metal enclosure measuring 9.5" x 1.3" x 1.0", this Instant Start ballast operates across a universal 120 to 277V input range at 50 to 60 Hz, making it a flexible fit for commercial and industrial fixtures. The ballast is CSA certified and rated for outdoor use, delivering reliable, code-compliant performance for professional lighting installations.

Key Features

  • Wide Input Voltage: Operates across 120 to 277V at 50 to 60 Hz input frequency for use across diverse electrical systems.
  • Instant Start Ignition: Instant Start ignition method with a nominal ignition time of 0.1s minimizes flicker at startup.
  • Automatic Restart: Automatically restarts after power interruptions to reduce maintenance callbacks.
  • Durable Metal Housing: Compact metal housing measures 9.5" x 1.3" x 1.0" for easy retrofit into standard fixtures.
  • Parallel Lamp Connection: Wired in a parallel lamp connection configuration for consistent F32T8 lamp performance at 32W.
  • Remote Wiring Capable: Supports remote wiring configurations with a maximum ballast-to-lamp distance of ES = 6' / Standard = 20'.
  • Low Harmonic Distortion: 10% Total Harmonic Distortion (USA) and a 0.98 nominal power factor support clean, efficient power draw.
  • Suitable for Outdoor Use: Rated for outdoor installations, expanding application versatility.

Certifications & Compliance

  • CSA Certificate
  • EMC Immunity Standard: FCC Non-Consumer
  • Suitable for Outdoor Use

Technical Specifications

  • Numerator Packs Per Outer Box: 10
  • Automatic Restart: Yes
  • Crestfactor Nom: 1.7
  • Total Harmonic Distortion Usa: 10%
  • Numerator Quantity Per Pack: 1
  • Hum And Noise Level: A
  • Ul Recognized: No
  • Housing Type: N
  • Suitable For Outdoor Use: Yes
  • Remote Wiring Configuration Allowed: Yes

Typical Applications

  • Commercial and Industrial Fluorescent Lighting Fixtures
  • F32T8 Lamp Retrofit and Replacement Projects
  • Outdoor-Rated Lighting Fixtures
  • Remote Ballast Mounting Installations
  • Parallel-Wired Multi-Lamp Fixtures

Why Philips Lighting?

Philips Lighting CENTIUM ballasts pair a durable metal housing with CSA certification and Instant Start ignition to deliver dependable performance for demanding fluorescent lighting installations. Automatic restart, low total harmonic distortion, and a 0.98 nominal power factor combine for consistent, efficient operation across a 120 to 277V input range. Choose the Philips Lighting 9137 CENTIUM ballast for code-compliant, professional-grade lighting performance in commercial and industrial fixtures.

Manufacturer Resources

Product Specs

Numerator Packs Per Outer Box:
10
Housing Dimensions:
9.5" x 1.3" x 1.0"
Housing Material:
Metal
Wire Striplength:
0.50/0.375 mm
Automatic Restart:
Yes
Input Frequency:
50 to 60 Hz
Max Ballast Lamp Distance Remote Wiring:
ES = 6' / Standard = 20'
Crestfactor Nom:
1.7
Lamp Connection:
Parallel
Total Harmonic Distortion Usa:
10%
Ballast Type:
Electronic Fluorescent
Numerator Quantity Per Pack:
1
Ignition Time Nom:
0.1 s
Input Voltage:
120 to 277 V
Color Input Terminals:
No terminals
Wire Type:
Solid
Product Type:
Fluorescent Ballast
Ignition Method:
Instant Start
Ean Upc Product:
7.81087E+11
Color Output Terminals:
No terminals
Approval Marks:
CSA certificate
Hum And Noise Level:
A
Ul Recognized:
No
Connector Type:
No connector
Wire Gauge Nom:
18AWG mm
Housing Type:
N
T Case Maximum Nom:
70 °C
Emc Immunity Standard:
FCC Non-Consumer
Suitable For Outdoor Use:
Yes
Wire Length By Color:
See data sheet
Remote Wiring Configuration Allowed:
Yes
Lamp Type:
F32T8
Rated Lamp Power:
32 W
Power Factor Nom:
0.98
Department:
Electrical

Philips Lighting 913710852301 – Frequently Asked Questions

1) What lamps does the Philips CENTIUM ICN-P32N35I ballast run?
It drives F32T8 lamps at 32 W rated lamp power, and it's offered in 1, 2, 3, and 4 lamp configurations. Pick the lamp-count version that matches the number of tubes in the fixture, because the lamps run in parallel on this ballast, so one failed tube does not take the rest down with it.
2) Can I use this T8 ballast on both 120V and 277V circuits?
Yes. The CENTIUM electronic T8 ballast accepts any input from 120 to 277 V at 50 to 60 Hz, so the same part works on a 120 V tenant space and a 277 V commercial lighting panel. That's the reason maintenance departments standardize on it across a mixed-voltage building instead of stocking two ballasts.
3) Will this ballast fit in my existing fluorescent fixture channel?
The metal housing measures 9.5 x 1.3 x 1.0 inches, which is the standard small can profile most 4-foot strip and troffer channels are punched for. Measure the channel opening against those three numbers before ordering, since housing type N ballasts mount in the channel rather than remote-mounted enclosures.
4) Is this an instant start or programmed start ballast, and does it matter?
Instant start, with an ignition time of about 0.1 seconds. Instant start gives the lowest input watts and fastest strike, and it suits spaces where the lights run long hours on a fixed schedule. If your fixtures are on occupancy sensors that cycle them dozens of times a day, programmed start is the better choice for lamp life; instant start is not the part for that application.
5) Can I mount this ballast remotely from the lamps?
Remote wiring is allowed. The maximum ballast to lamp distance is 20 feet in standard wiring and 6 feet for energy-saving wiring. That covers sign cabinets, cove lighting, and cases where the ballast has to sit outside the fixture for heat or access reasons. Run the leads within those limits or lamps will start unreliably.
6) Can this fluorescent ballast be used outdoors or in an unheated area?
It's rated suitable for outdoor use, in a suitable enclosure, with a maximum case temperature of 70 C. The 70 C figure is the limit at the hot spot on the housing, so in a parking canopy or a closed sign box check that the fixture is not driving the can past that point.
7) Do the lights come back on by themselves after a lamp is replaced or power drops?
Yes, automatic restart is built in. After a lamp change or a power interruption the ballast re-strikes on its own, so a maintenance tech doesn't have to cycle the wall switch or the breaker after swapping a tube.
8) How do I wire this ballast, and does it come with connectors?
Hard wire only. The CENTIUM ballast ships with no input or output terminals and no connector, so you're landing bare leads with wire nuts. Leads are solid 18 AWG. Strip length is 0.50/0.375, and the lead color code and lengths are on the Philips spec sheet linked with the product.
9) Will this ballast hum in a quiet office or classroom?
Sound rating is A, the quietest class for fluorescent ballasts. That's what you want in offices, classrooms, libraries, and patient rooms where a B or C rated ballast becomes an audible complaint.
10) How does this T8 ballast ship, individually or in a case?
Each ballast is packed one per pack, with 10 packs to an outer box. So a full case is 10 ballasts, which is the usual way a property maintenance shop or electrical contractor buys them for a relamp.
11) What approvals does the Philips CENTIUM T8 ballast carry?
It holds a CSA certificate, and the EMC immunity standard is FCC Non-Consumer, meaning it's built for commercial and industrial installations rather than residential RF limits.
