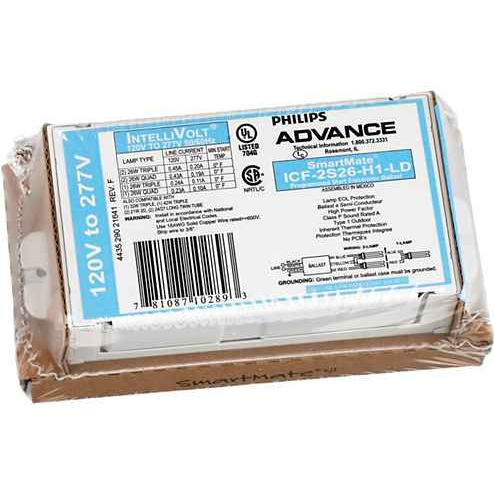

Philips Lighting 9137005008 SMARTMATE ICF2S H1LDK Electronic Fluorescent Ballast, 120-277V, Programmed-Start

Philips Lighting 9137005008 SMARTMATE ICF2S H1LDK Electronic Fluorescent Ballast, 120-277V, Programmed-Start

(No reviews yet) Write a Review

Model: 913700500811

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting 9137005008 SMARTMATE ICF2S H1LDK Electronic Fluorescent Ballast, 120-277V, Programmed-Start

The Philips Lighting SMARTMATE ICF2S H1LDK is an electronic fluorescent ballast built for reliable operation of one or two lamps in commercial and industrial fixtures. It accepts a 120 to 277 V input across a 50 to 60 Hz frequency range, uses a programmed-start ignition method, and is housed in a compact H1-type Metal/Plastic enclosure measuring 4.98" x 2.4" x 0.98". CSA certified and rated suitable for outdoor use, this ballast also supports automatic restart for dependable long-term performance.

Key Features

  • Housing Dimensions: 4.98" x 2.4" x 0.98" H1-type housing.
  • Durable Construction: Metal/Plastic housing material for dependable ballast protection.
  • Input Voltage: 120 to 277 V across a 50 to 60 Hz input frequency.
  • Programmed Start: Programmed-start ignition method with 1.5 s nominal ignition time.
  • Automatic Restart: Automatic restart function supports consistent lamp operation.
  • Poke-In Connectors: Poke-In connector type with solid 18AWG wire for fast field wiring.
  • Outdoor Rated: Listed as suitable for outdoor use.

Certifications & Compliance

  • CSA Certificate
  • FCC Non-Consumer EMC Immunity Standard

Technical Specifications

  • Numerator Packs Per Outer Box: 12
  • Automatic Restart: Yes
  • Crestfactor Nom: 1.5
  • Total Harmonic Distortion Usa: 10%
  • Numerator Quantity Per Pack: 1
  • Hum And Noise Level: A
  • Ul Recognized: No
  • Housing Type: H1
  • Tandem Wiring Configuration Allowed: Yes
  • Suitable For Outdoor Use: Yes
  • Through Wiring Configuration Allowed: Yes
  • Remote Wiring Configuration Allowed: Yes

Typical Applications

  • Commercial Fluorescent Lighting Fixtures
  • One- and Two-Lamp Ballast Replacement
  • Indoor and Outdoor Fixture Retrofits
  • Programmed-Start Lighting Systems

Why Philips Lighting?

Philips Lighting engineers the SMARTMATE ICF2S H1LDK ballast with a durable Metal/Plastic H1 housing, programmed-start ignition, and automatic restart to keep fluorescent fixtures running reliably. Backed by CSA certification and rated suitable for outdoor use, it delivers dependable, code-conscious ballast performance for demanding commercial installations.

Manufacturer Resources

Product Specs

Numerator Packs Per Outer Box:
12
Housing Dimensions:
4.98" x 2.4" x 0.98"
Housing Material:
Metal/Plastic
Material Nr 12nc:
9.13701E+11
Wire Striplength:
0.375 mm
Automatic Restart:
Yes
Input Frequency:
50 to 60 Hz
Max Ballast Lamp Distance Remote Wiring:
1-L = 15' / 2-L = 6'
Max Ballast Lamp Distance Through Wiring:
2-L: Red = 6'
Crestfactor Nom:
1.5
Lamp Connection:
Series
Total Harmonic Distortion Usa:
10%
Ballast Type:
Electronic Fluorescent
Numerator Quantity Per Pack:
1
Ignition Time Nom:
1.5 s
Input Voltage:
120 to 277 V
Color Input Terminals:
Black and White
Wire Type:
Solid
Max Ballast Lamp Distance Tandem Wiring:
2-L: Red = 6'
Product Type:
Fluorescent Ballast
Ignition Method:
Programmed Start
Ean Upc Product:
7.81087E+11
Color Output Terminals:
RED, YEL & BLU
Approval Marks:
CSA certificate
Hum And Noise Level:
A
Ul Recognized:
No
Connector Type:
Poke-In
Wire Gauge Nom:
18AWG mm
Housing Type:
H1
T Case Maximum Nom:
75 °C
Tandem Wiring Configuration Allowed:
Yes
Emc Immunity Standard:
FCC Non-Consumer
Order Code:
9.13701E+11
Suitable For Outdoor Use:
Yes
Through Wiring Configuration Allowed:
Yes
Wire Length By Color:
No wires
Remote Wiring Configuration Allowed:
Yes
Number Of Lamps:
1/2 piece/unit
Power Factor Nom:
0.98
Department:
Electrical

Philips Lighting 913700500811 – Frequently Asked Questions

1) Will the Philips SMARTMATE ICF2S H1LDK ballast run on both 120V and 277V circuits?
Yes. The SMARTMATE ICF2S H1LDK is a universal-voltage electronic fluorescent ballast accepting 120 to 277 V at 50 to 60 Hz, so the same unit works on residential 120V branch circuits and 277V commercial lighting circuits. Input leads are black and white; output leads are red, yellow and blue.
2) How many CFL lamps will one SMARTMATE ICF2S ballast drive?
One or two lamps per unit, wired in series. That means if one lamp fails, the other goes out too, which is normal for a series-connected ballast and worth knowing before you troubleshoot a fixture.
3) What compact fluorescent wattages does the SMARTMATE ICF2S H1LDK cover?
Three wattage builds are offered: 13W, 18W and 26W. Match the ballast to the CFL wattage in the fixture, since each build is wattage-specific.
4) Will this ballast fit inside my existing fixture channel?
The H1 housing measures 4.98 x 2.4 x 0.98 inches in metal and plastic construction. Check that against the ballast cavity before ordering, especially in shallow downlight cans.
5) Does the SMARTMATE ICF2S ballast come with leads, or do I supply my own wire?
It ships with no wires. The terminals are poke-in type sized for 18 AWG solid conductor, stripped 0.375. Stranded wire will not seat reliably in a poke-in terminal, so plan on solid 18 AWG for the connections.
6) How far can I mount this ballast from the lamp in a remote-mount install?
Remote wiring is allowed, with a maximum ballast-to-lamp distance of 15 feet on a single-lamp run and 6 feet when running two lamps. Tandem and through wiring are also permitted, both limited to 6 feet on the red output for two-lamp runs. Exceed those lengths and starting and lamp life suffer.
7) Is this a programmed start ballast, and does that matter for occupancy-sensor spaces?
Programmed start, with a nominal 1.5 second ignition time. Programmed start preheats the cathodes before striking the arc, which is the ignition method you want on restrooms, corridors and stairwells where occupancy sensors switch lamps frequently, because instant start shortens lamp life under heavy cycling.
8) Can this ballast be used in an outdoor or unheated fixture?
Yes, the ICF2S H1LDK is rated suitable for outdoor use when installed in a suitable luminaire. Maximum case temperature is 75 C, so keep the case within that in enclosed or hot-location fixtures.
9) Do I have to cycle power after a lamp change with this Philips ballast?
No. Automatic restart is built in, so once you seat a new lamp the ballast restarts on its own without switching the circuit off and back on. Handy on fixtures where the disconnect is not close to the lamp.
10) How many of these ballasts come in a case?
Sold one per pack, with 12 packs to an outer box. If you are standardizing a building on one wattage, ordering in full boxes of 12 keeps the retrofit consistent.
11) Is the SMARTMATE ICF2S ballast approved for use in Canada?
It carries a CSA certificate, so it is acceptable for Canadian installations. EMC immunity is to the FCC non-consumer standard.
