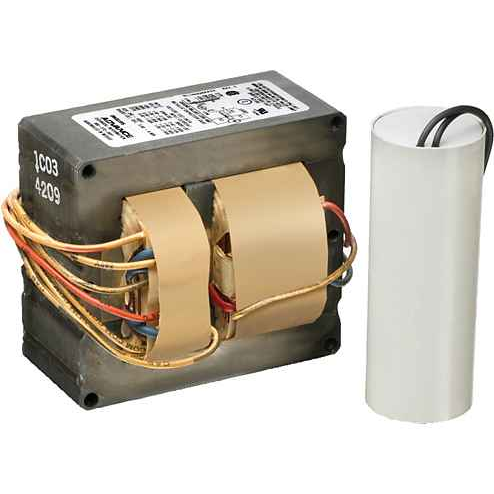

Philips Lighting 913700535309 SUPER-CWA Core & Coil HID Ballast, 320W Metal Halide

Philips Lighting 913700535309 SUPER-CWA Core & Coil HID Ballast, 320W Metal Halide

(No reviews yet) Write a Review

Model: 913700535309
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$323.36
$273.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting 913700535309 SUPER-CWA Core & Coil HID Ballast, 320W Metal Halide

The Philips Lighting 913700535309 SUPER-CWA Core & Coil HID Ballast operates 320W Metal Halide lamps rated ANSI M132-M154. This constant-wattage autotransformer ballast accepts multi-tap 120/208/240/277V input at 60 Hz, is UL Recognized, and is suitable for outdoor use in commercial and industrial applications.

Key Features

  • Lamp Compatibility: Designed for a 320W Metal Halide lamp, ANSI ballast code M132-M154.
  • Circuit Type: SUPER-CWA autotransformer design maintains a 10% constant wattage deviation for stable output.
  • Multi-Tap Input: Accepts 120/208/240/277V input at 60 Hz for flexible wiring.
  • Remote Mounting: Supports remote wiring up to a 2' ballast-to-lamp distance.
  • Matched Components: Includes matched capacitor (7C210P34R) and ignitor (LI533-H4).
  • Outdoor Rated: Suitable for outdoor use with capacitor and ignitor rated to 105°C.

Certifications & Compliance

  • UL Recognized
  • Approval Marks: ULR
  • UL Insulation Class H (180°C)
  • UL Temperature Code 1029B

Technical Specifications

  • Approval Marks: ULR
  • Automatic Restart: No
  • Ballast Factor (Nom): 1
  • Capacitor Diameter: 1.75 in
  • Capacitor Height: 4.8 in
  • CW Deviation: 10%
  • EAN/UPC: 7.81087E+11
  • Hipot Test (1 Min): 2000 V
  • Hipot Test (2 Sec): 2500 V
  • Input Current (Nom): 3.25/1.9/1.65/1.4 A
  • Input Current (OCV): 2.3/1.35/1.15/1 A
  • Input Current (SC): 1.65-2.5/1-1.5/0.8-1.25/0.7-1.1 A
  • Starting Current: 1.8/1.05/0.9/0.8 A
  • Material Nr (12NC): 9.13701E+11
  • Max Remote Distance: 2'
  • Number of Lamps: 1 piece/unit
  • Packs/Outer Box: 1
  • Qty Per Pack: 1
  • OCV Test: 250-300 V
  • Order Code: 9.13701E+11
  • Order Product Name: CORE & COIL HID 71A5892001D
  • Power Factor (Nom): 0.9
  • Fuse Rating: 8/6/5/3 A
  • Remote Wiring OK: Yes
  • Secondary SC Current: 2.9-3.6 A
  • Outdoor Use: Yes
  • Temperature Marking: B/B/B/B
  • UL Insulation Class: H(180°C)
  • UL Recognized: Yes
  • Wire Length by Color: 12"
  • Wire Striplength: 0.5 mm
  • Wire Type: Stranded
  • Product Core Size: 4 1/4 x 4 3/4 (2 coil)

Typical Applications

  • Commercial and Industrial HID Lighting Fixtures
  • Metal Halide High-Bay and Area Lighting
  • Outdoor and Wet-Location Lighting Installations
  • Ballast Replacement and Retrofit Projects

Why Philips Lighting?

Philips Lighting builds its core & coil HID ballasts to UL Recognition standards with a 180°C insulation class and matched capacitor and ignitor components rated to 105°C, supporting dependable, code-compliant performance for commercial and industrial lighting applications.

Manufacturer Resources

Product Specs

Ansi Code:
M132-M154
Approval Marks:
ULR
Automatic Restart:
No
Ballast Factor Nom :
1
Ballast Type:
Magnetic HID
Base Model:
71A5892A
Capacitor Catalog Number:
7C210P34R
Capacitor Diameter Oval Dimensions:
1.75 in
Capacitor Height:
4.8 in
Capacitor Requirements:
345V
Capacitor Temperature Rating:
105°C
Capacitor Value:
21 MFD
Circuit Type:
SUPER-CWA
Constant Wattage Deviation:
10%
Ean Upc Product:
7.81087E+11
Hipot Test 1 Minute :
2000 V
Hipot Test 2 Seconds :
2500 V
Ignitor Catalog Number:
LI533-H4
Ignitor Temperature Rating:
105°C
Input Current Nom :
3.25/1.9/1.65/1.4 A A
Input Current Open Circuit :
2.3/1.35/1.15/1 A
Input Current Short Circuit :
1.65-2.5/1-1.5/0.8-1.25/0.7-1.1 A
Input Current Starting :
1.8/1.05/0.9/0.8 A
Input Frequency:
60 Hz
Input Power Nom :
368 W
Input Voltage:
120/208/240/277 V
Lamp Type:
320W MH
Material Nr 12nc :
9.13701E+11
Max Ballast Lamp Distance Remote Wiring:
2'
Net Weight Piece :
5.149 kg
Number Of Lamps:
1 piece/unit
Numerator Packs Per Outer Box:
1
Numerator Quantity Per Pack:
1
Open Circuit Voltage:
270 V
Open Circuit Voltage Test Volts :
250-300 V
Order Code:
9.13701E+11
Order Product Name:
CORE & COIL HID 71A5892001D
Power Factor Nom :
0.9
Rated Lamp Power:
320 W
Recommended Fuse Value:
8/6/5/3 A
Remote Wiring Configuration Allowed:
Yes
Secondary Short Circuit Current:
2.9-3.6 A
Suitable For Outdoor Use:
Yes
Temperature Marking:
B/B/B/B
Ul Insulation Class:
H(180°C)
Ul Recognized:
Yes
Ul Temperature Code:
1029B
Wire Length By Color:
12"
Wire Striplength:
0.5 mm
Wire Type:
Stranded
Product Core Size:
4 1/4 x 4 3/4 (2 coil)
Product Type:
HID Ballast
Department:
Electrical

Philips Lighting 913700535309 – Frequently Asked Questions

1) Will this Philips core and coil ballast run my 320W metal halide lamp?
It runs one 320W metal halide lamp carrying the ANSI ballast code M132-M154. Check the lamp's ANSI code printed on the sleeve or lamp base: if it falls in that M132-M154 range at 320W, this kit drives it. It is a single-lamp ballast, one lamp per unit, so a two-lamp fixture needs two.
2) Does the ballast come with the capacitor and ignitor, or do I order those separately?
The kit is matched and complete: capacitor 7C210P34R and ignitor LI533-H4 ship with the core and coil. The capacitor is a 21 MFD, 345V unit measuring 1.75 in across by 4.8 in tall, which matters if you are fitting it into a tight pole base or a small fixture cavity. Both components are rated to 105 degrees C.
3) Can I mount the ballast remotely from the fixture, for example in a pole base?
Remote wiring is allowed, but only to a maximum ballast-to-lamp distance of 2 feet. That rules out a pole-base mount feeding a fixture at the top of the pole. For anything beyond 2 feet you need a ballast specified for long remote runs.
4) Is this 320W HID ballast rated for outdoor or wet location fixtures?
Yes, it is suitable for outdoor use when installed in a fixture housing. The insulation is UL Class H at 180 degrees C and the capacitor and ignitor are both rated to 105 degrees C, which is what lets it live in an enclosed area light or shoebox head through summer heat. UL temperature code is 1029B.
5) What is the difference between a SUPER-CWA ballast and a standard reactor or HX type for 320W metal halide?
SUPER-CWA is a constant-wattage autotransformer circuit. It holds lamp wattage within a 10 percent deviation as line voltage swings, and it runs at 0.9 power factor with a ballast factor of 1.0. Reactor and HX types are cheaper but tolerate far less line variation. If you are on a long feeder, a shared industrial service, or an outdoor circuit where voltage sags, the CWA type is the one that keeps lamp color and output stable.
6) How much power does the whole 320W ballast and lamp draw for circuit sizing?
Nominal input power is 368 watts including ballast losses, not 320. Size the branch circuit and count fixtures per circuit off 368 W, and off the tap current, 3.25 A on 120V down to 1.4 A on 277V.
7) Does this metal halide ballast restrike the lamp automatically after a power blip?
No. Automatic restart is not a feature of this unit, so after a momentary outage the lamp goes through the normal hot-restrike cooldown before it lights again. On stairwells, egress paths or security lighting, pair the metal halide with a quartz restrike fixture or a separate emergency source.
8) Will this Philips ballast fit the space in my existing fixture housing?
The core measures 4 1/4 by 4 3/4 inches in a 2-coil build, and the piece weighs 5.149 kg. The capacitor is a separate 1.75 in diameter by 4.8 in tall can that needs its own mounting spot. Measure the ballast tray against those numbers before you pull the old one.
9) Is this ballast UL Listed or UL Recognized, and does that matter for my inspection?
It is UL Recognized, marked ULR. Recognized components are approved for use inside a listed end product, meaning the fixture, rather than as a standalone listed assembly. For a ballast replacement inside an existing listed luminaire that is the normal and expected mark.
10) What leads come on the ballast and how much wire do I have to work with?
Leads are stranded and 12 inches long by color, with a 0.5 mm strip length called out. Twelve inches is enough to reach a wire nut in the fixture channel, but if your splice point is further out you will be adding pigtails rather than stretching the tap leads.
11) What is the open circuit voltage on this 320W CWA ballast?
Open circuit voltage is 270 V nominal, with an acceptance test window of 250 to 300 V. That is the figure to check with a meter when you are troubleshooting a fixture that will not strike: if the secondary reads inside that band with no lamp in place, the ballast is doing its job and the lamp or ignitor is the suspect. Secondary short circuit current runs 2.9 to 3.6 A.
12) How is this Philips 320W ballast packaged, and what do I order it by?
One ballast per pack, one pack per outer box, so an order quantity equals a count of ballasts. The base model designation is 71A5892A and it ships under the order product name CORE & COIL HID 71A5892001D. Quote those when matching to a fixture manufacturer's replacement callout.
