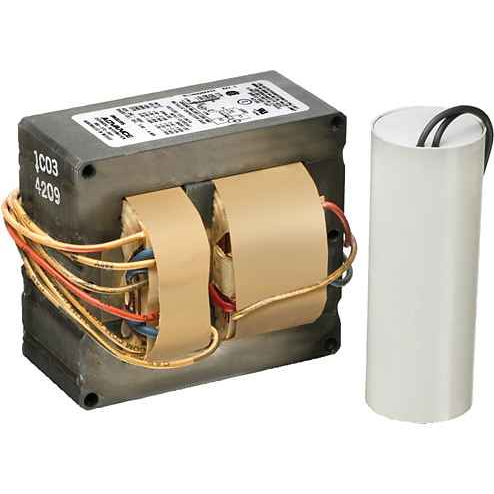

Philips Lighting 913700556509 Core & Coil Magnetic HID Ballast, 150W HPS, 120/208/240/277V

Philips Lighting 913700556509 Core & Coil Magnetic HID Ballast, 150W HPS, 120/208/240/277V

(No reviews yet) Write a Review

Model: 913700556509
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$268.89
$229.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting 913700556509 Core & Coil Magnetic HID Ballast, 150W HPS, 120/208/240/277V

The Philips Lighting 913700556509 Core & Coil Magnetic HID Ballast is engineered to power a 150W HPS (High Pressure Sodium) lamp, ANSI code S55, using a proven core-and-coil magnetic design. Built on an HX-HPF (High-Reactance High-Power-Factor) circuit with a nominal 0.9 power factor, this multi-tap ballast accepts 120/208/240/277V input at 60 Hz and draws a nominal input power of 190W. It is UL Recognized and rated for outdoor use, making it a dependable core-and-coil replacement for existing HID fixture rebuilds.

Key Features

  • Ballast Type: Magnetic HID ballast with HX-HPF circuit design, delivering constant-wattage deviation performance within the ANSI trapezoid.
  • Multi-Tap Input: Rated for 120/208/240/277V input at 60 Hz with a nominal input power of 190W and a 0.9 nominal power factor for efficient operation.
  • Lamp Compatibility: Designed for a 150W HPS lamp, ANSI code S55, with a 120V open circuit voltage (110-130V test range).
  • Matched Capacitor: Includes capacitor catalog number 7C140M30RA rated 14 MFD / 280V with a 105°C temperature rating.
  • Matched Ignitor: Includes ignitor catalog number LI551-H4 rated for 105°C operation.
  • Wiring Configuration: Stranded lead wire with 12" wire length by color; remote wiring is permitted up to a 2' maximum ballast-to-lamp distance.
  • Outdoor Rated: Suitable for outdoor use, supporting site and area HID lighting applications.
  • Compact Core Size: Product core size of 3 X 4 (2 LW) for streamlined fixture integration.

Certifications & Compliance

  • UL Recognized (Approval Mark: ULR)
  • UL Insulation Class H (180°C)
  • UL Temperature Code 1029E
  • ANSI Code S55
  • Suitable for Outdoor Use
  • Hipot Tested: 2000V for 1 minute / 2500V for 2 seconds

Technical Specifications

  • Ansi Code: S55
  • Approval Marks: ULR
  • Automatic Restart: No
  • Ballast Factor (Nom): 1
  • Base Model: 71A8172
  • EAN/UPC Product: 7.81088E+11
  • Input Current (Nom): 1.65/0.95/0.83/0.72 A
  • Material Nr (12NC): 9.13701E+11
  • Max Ballast Lamp Distance (Remote Wiring): 2'
  • Numerator Packs Per Outer Box: 1
  • Numerator Quantity Per Pack: 1
  • Order Code: 9.13701E+11
  • Order Product Name: CORE & COIL HID 71A8172001D
  • Power Factor (Nom): 0.9
  • Rated Lamp Power: 150 W
  • Remote Wiring Configuration Allowed: Yes
  • Suitable For Outdoor Use: Yes
  • UL Recognized: Yes
  • Wire Length By Color: 12"
  • Product Type: HID Lamp

Typical Applications

  • HID Fixture Ballast Replacement and Rebuild Kits
  • 150W HPS Outdoor Area and Site Lighting
  • Commercial and Industrial HID Lighting Systems
  • Remote-Mounted Ballast Installations
  • Weather-Exposed and Outdoor Fixture Applications

Why Philips Lighting?

Philips Lighting engineers this Core & Coil HID ballast assembly with matched capacitor and ignitor components, UL Recognized construction, and ANSI S55 lamp compatibility for consistent, code-compliant HID lighting performance. The HX-HPF magnetic design, multi-tap 120/208/240/277V input, and outdoor-use rating make it a reliable choice for maintaining and rebuilding professional 150W HPS lighting fixtures.

Manufacturer Resources

Product Specs

Ansi Code:
S55
Approval Marks:
ULR
Automatic Restart:
No
Ballast Factor Nom :
1
Ballast Type:
Magnetic HID
Base Model:
71A8172
Capacitor Catalog Number:
7C140M30RA
Capacitor Diameter Oval Dimensions:
1.65 in
Capacitor Height:
2.75 in
Capacitor Requirements:
280V
Capacitor Temperature Rating:
105°C
Capacitor Value:
14 MFD
Circuit Type:
HX-HPF
Constant Wattage Deviation:
Within Trapezoid
Ean Upc Product:
7.81088E+11
Hipot Test 1 Minute :
2000 V
Hipot Test 2 Seconds :
2500 V
Ignitor Catalog Number:
LI551-H4
Ignitor Temperature Rating:
105°C
Input Current Nom :
1.65/0.95/0.83/0.72 A A
Input Current Open Circuit :
2.8/1.6/1.4/1.25 A
Input Current Short Circuit :
1.15-1.75/0.65-1/0.55-0.85/0.5-0.75 A
Input Current Starting :
2/1.15/1/0.85 A
Input Frequency:
60 Hz
Input Power Nom :
190 W
Input Voltage:
120/208/240/277 V
Lamp Type:
150W HPS
Material Nr 12nc :
9.13701E+11
Max Ballast Lamp Distance Remote Wiring:
2'
Net Weight Piece :
3.688 kg
Number Of Lamps:
1 piece/unit
Numerator Packs Per Outer Box:
1
Numerator Quantity Per Pack:
1
Open Circuit Voltage:
120 V
Open Circuit Voltage Test Volts :
110-130 V
Order Code:
9.13701E+11
Order Product Name:
CORE & COIL HID 71A8172001D
Power Factor Nom :
0.9
Rated Lamp Power:
150 W
Recommended Fuse Value:
10/5/5/4 A
Remote Wiring Configuration Allowed:
Yes
Secondary Short Circuit Current:
3.95-4.85 A
Suitable For Outdoor Use:
Yes
Temperature Marking:
E/E/E/E
Ul Insulation Class:
H(180°C)
Ul Recognized:
Yes
Ul Temperature Code:
1029E
Wire Length By Color:
12"
Wire Striplength:
0.5 mm
Wire Type:
Stranded
Product Core Size:
3 X 4 (2 LW)
Product Type:
HID Lamp
Department:
Electrical

Philips Lighting 913700556509 – Frequently Asked Questions

1) Will the Philips 913700556509 core and coil ballast run a 150W metal halide lamp, or only HPS?
HPS only. This core and coil assembly is built for a 150W high pressure sodium lamp carrying ANSI code S55, and it ships with an ignitor (LI551-H4) that HPS needs. A 150W metal halide lamp uses a different ANSI designation and a different ballast circuit, so it will not run correctly here. Match the ANSI code printed on the lamp to S55 before wiring it in.
2) Is the Philips 913700556509 HPS ballast multi-tap, and what does it draw on each voltage?
It is a multi-tap ballast with 120, 208, 240 and 277V leads at 60 Hz. Nominal input current runs 1.65A at 120V, 0.95A at 208V, 0.83A at 240V and 0.72A at 277V, with nominal input power of 190W. Starting current is 2/1.15/1/0.85A across those same taps, which is what you size the branch circuit against.
3) Can I mount this 150W HPS ballast away from the fixture in a pole base?
Remote mounting is permitted, but the ballast to lamp distance is capped at 2 feet. That is short, so a pole base install only works if the lamp head is right above it. Supplied leads are stranded, 12 inches long by color, with a 0.5 mm strip length, so allow for splices and a weatherproof junction if you separate the two.
4) What fuse size should I use on a 150W HPS core and coil ballast?
Recommended fuse values track the tap you land on: 10A at 120V, 5A at 208V, 5A at 240V and 4A at 277V. Those match the 1.65/0.95/0.83/0.72A nominal input currents on the same taps. Fusing per tap is the normal practice on pole and area lighting so a single ballast failure does not drop the whole circuit.
5) Is this Philips core and coil ballast OK for an outdoor parking lot or wall pack fixture?
Yes, it is rated suitable for outdoor use, which is why it turns up in area and site lighting rebuilds. Insulation is UL Class H (180 degrees C) with UL temperature code 1029E and a temperature marking of E on all four taps. It carries the UL Recognized mark (ULR), meaning it is a component intended to be installed inside a listed fixture or enclosure rather than run on its own.
6) What is HX-HPF, and does it matter for my 150W HPS retrofit?
HX-HPF stands for high reactance, high power factor. On the Philips 913700556509 it gives a nominal 0.9 power factor and holds lamp wattage within the ANSI trapezoid, so lamp output stays predictable as line voltage moves. Open circuit voltage is 120V, tested 110 to 130V. If the old ballast in the fixture was a reactor or a constant wattage autotransformer type, the electrical behavior differs, so confirm the ANSI S55 designation on the label you are replacing.
7) Does this Philips HPS ballast restrike automatically after a power blip?
No automatic restart. Like most HPS gear, the lamp has to cool before it will reignite, so after a momentary outage expect several minutes of darkness. If instant re-strike is a requirement for a security or egress area, HPS core and coil is the wrong technology for that opening.
8) How many lamps will the Philips 913700556509 ballast run, and how is it packaged?
One lamp per unit, single 150W HPS. It ships one piece per pack, one pack per outer box, so quantity ordered equals ballast assemblies received. Base model reference on the unit is 71A8172, sold under the order product name CORE & COIL HID 71A8172001D.
