Philips Lighting IZT2PSP32SC35M MARK 7 0-10V Electronic Dimming Ballast, F32T8, 120-277V

Philips Lighting IZT2PSP32SC35M MARK 7 0-10V Electronic Dimming Ballast, F32T8, 120-277V

(No reviews yet) Write a Review

Model: IZT2PSP32SC35M

In Stock (leaves warehouse same day if ordered before 3pm ET)

$239.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

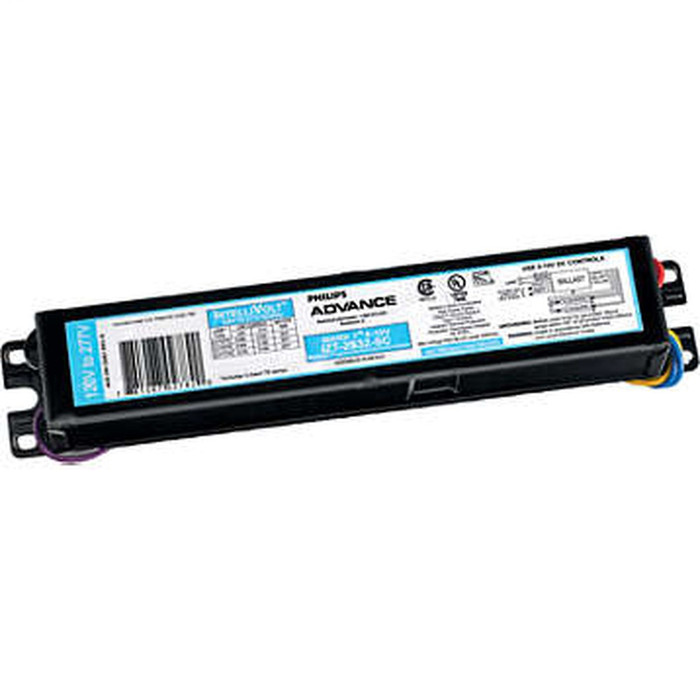

Philips Lighting IZT2PSP32SC35M MARK 7 0-10V Electronic Dimming Ballast, F32T8, 120-277V

The Philips Lighting IZT2PSP32SC35M MARK 7 0-10V Electronic Dimming Ballast delivers reliable, code-compliant lighting control for fluorescent fixtures. Engineered to power (2) F32T8 lamps, this electronic ballast operates across a universal 120-277V input voltage range, making it a flexible choice for commercial, industrial, and institutional lighting retrofits. The 0-10V dimming interface allows integration with compatible dimming controls, giving facility managers and electrical contractors the ability to adjust light output for energy savings and occupant comfort. As part of the Philips Lighting MARK 7 electronic ballast platform, the IZT2PSP32SC35M is built to replace aging magnetic ballasts with a more efficient, flicker-reduced alternative that supports modern fluorescent lighting control strategies.

Key Features

  • MARK 7 Series: Part of the Philips Lighting MARK 7 electronic ballast platform, engineered for dependable fluorescent lighting performance.
  • 0-10V Dimming: Electronic 0-10V dimming interface enables compatibility with standard low-voltage dimming controls for adjustable light output.
  • Lamp Configuration: Designed to operate (2) F32T8 fluorescent lamps in a single fixture.
  • Universal Voltage Input: Rated for 120-277V input, supporting flexible installation across standard commercial and industrial voltage systems without a separate transformer.
  • Electronic Ballast Technology: Solid-state electronic design delivers efficient, flicker-reduced operation compared to legacy magnetic ballasts.
  • Retrofit-Ready: Sized and configured as a direct upgrade path for existing F32T8 fixtures being converted to dimmable control.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Commercial and Office Lighting Retrofits
  • Fluorescent Fixture Replacement and Ballast Upgrades
  • Dimmable Lighting Control Systems
  • Industrial and Institutional Facilities
  • Warehouse and Commercial Space Lighting

Why Philips Lighting?

Philips Lighting is a widely recognized name in commercial lighting components, and the MARK 7 electronic ballast series is engineered for dependable, energy-conscious performance. With 0-10V dimming capability and universal 120-277V voltage compatibility, the IZT2PSP32SC35M supports flexible, efficient fluorescent lighting installations for demanding commercial and industrial environments. Choosing a Philips Lighting ballast means specifying a component built for consistent, code-compliant operation in professional electrical projects.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
PHIL-20260923
Product Type:
Fluorescent Ballast
Series:
MARK 7
Voltage Rating:
120-277V
Dimmable:
0-10V
Configuration:
(2) F32T8
Department:
Electrical
Product Subgroup:
Lamps & Ballasts
Product Group:
Lighting

Philips Lighting IZT2PSP32SC35M – Frequently Asked Questions

1) How many F32T8 lamps will the Philips MARK 7 IZT2PSP32SC35M ballast run?
It drives two F32T8 lamps from a single ballast. If your fixture is a 3-lamp or 4-lamp troffer, you'll need a different lamp count ballast or a pair of these, depending on how the fixture is wired.
2) Can I use the same ballast on 120V and 277V circuits in the same building?
Yes. The MARK 7 IZT2PSP32SC35M is a universal-voltage ballast rated 120-277V, so the same part number works on 120V branch circuits in offices and 277V circuits in warehouse or industrial panels. No separate transformer, and one SKU covers both for stocking purposes.
3) What kind of dimming control do I need to wire to this Philips MARK 7 ballast?
It uses a 0-10V analog control interface, so it needs a low-voltage 0-10V dimmer, room controller, or building automation output in addition to the line-voltage feed. A standard wall-box incandescent or leading-edge dimmer on the line side will not dim it. Plan on pulling a separate pair of low-voltage control conductors to the fixture.
4) Will this work as a replacement for an old magnetic ballast in an existing T8 fixture?
It is intended as an upgrade path for existing F32T8 fixtures moving to dimmable control, replacing magnetic ballasts with solid-state electronic operation. Two things to sort out before you swap: the fixture must be lamped with F32T8 in a two-lamp configuration, and you have to run 0-10V control wiring to the fixture, because a magnetic ballast had none. If nobody is adding a dimming control, a non-dimming electronic ballast is the simpler choice.
5) Is a dimming fluorescent ballast or an LED tube retrofit the right call for an office relamp?
The MARK 7 0-10V ballast keeps the existing fluorescent fixture, lamps, and sockets and adds dimmable control, which is the lower-disruption path when the troffers are in good shape and the F32T8 lamps are already stocked. It is the right choice where you need dimming on a fluorescent system you are keeping. If you plan to abandon fluorescent lamps entirely, a ballast is not the part you want.
6) Will this Philips ballast run F17T8 or F54T5HO lamps?
No. The IZT2PSP32SC35M is specified for F32T8 lamps only, two per ballast. Running a different wattage or a T5 lamp off it is outside what the ballast is rated for, so match the lamp type exactly or pick the ballast built for the lamp you have.
7) What is the exact part number to order this Philips MARK 7 dimming ballast?
Order it as Philips Lighting IZT2PSP32SC35M, from the MARK 7 electronic ballast series. That single part number covers the 120-277V, two-lamp F32T8, 0-10V dimming configuration, so there are no finish or voltage options to specify with it.
8) Where can I get the full electrical specs, like ballast factor and wiring diagram, for the IZT2PSP32SC35M?
Philips publishes a spec sheet for this ballast covering the detailed electrical data and wiring, available at https://media.distributordatasolutions.com/philipslighting/2018q2/1ce5e18cac087027ec4e115b7cbc98f81e266329.pdf. That is the document to hand your electrician or attach to a submittal.
